MatchPort Demonstration Kit

For MatchPort Embedded Wireless Device Server

The MatchPort® Demonstration Kit is designed with all the necessary items to help you successfully implement the pin-compatible MatchPort b/g, MatchPort b/g Pro, MatchPort NR and MatchPort AR embedded modules into your product design.

Overview for MatchPort Demonstration Kit

The Ultimate in Flexibility, Security, Performance and Affordability in Embedded Wireless Networking

Powerful networking co-processors, the MatchPort modules sends and receives serial data in packets over Ethernet without burdening the device’s main processor.

MatchPort b/g enables you to build wireless networking into virtually any electronic device with a serial interface. With this full-featured, turnkey embedded device server module your products can be wirelessly accessed and controlled over the Internet!The MatchPort® Demonstration Kit is designed with all the necessary items to help you successfully implement the pin-compatible MatchPort b/g, MatchPort b/g Pro, MatchPort NR and MatchPort AR embedded modules into your product design. Powerful networking co-processors, the MatchPort modules sends and receives serial data in packets over Ethernet without burdening the device’s main processor.

MatchPort NR enables you to build wired networking into virtually any electronic device with a serial interface. With this full-featured, turnkey embedded device server module your products can be accessed and controlled over the Internet!

MatchPort Architect (AR) delivers SSL/SSH ready Ethernet networking capability to virtually any product with a serial interface on the host microcontroller. It incorporates state-of-the-art CGI and AJAX web server capabilities for remote data acquisition, device monitoring and configuration, and virtually no programming is required.

MatchPort® b/g Pro is a programmable device server that delivers WiFi networking with the highest levels of security to virtually any electronic product. It provides affordable connectivity in the same compact, single-socket form factor as other MatchPort modules, enabling OEMs to add WiFi or wired Ethernet networking to their products on a single PCB design.

Order Information & Part Numbers for MatchPort Demonstration Kit

Part Number Name Description Order Now
SKU

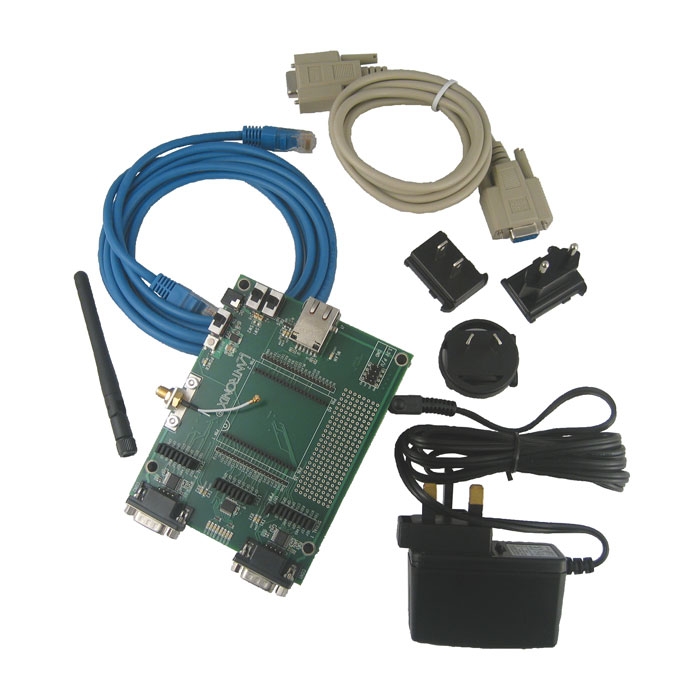

MP10010NMK-01 MatchPort Demo Kit

The demonstration kit contains the key accessories to
evaluate a MatchPort products:

  • MatchPort demonstration board
  • RS-232 cable, DB9F, null modem
  • Cat5e UTP RJ45M/M Ethernet cable
  • 3.3V power supply
  • Antenna

Note: MatchPort b/g, MatchPort b/g Pro, MatchPort AR and MatchPort NR samples must be purchased separately.
