NTC-500 Series

New

NTC-500 Series Tech Specs

• CELLULAR BANDS

  • 5G NR Bands (NTC-501)
    • n2, n5, n7, n12, n13, n14, n25, n26, n29, n30, n38, n41, n48, n66, n71, n77, n78
  • LTE Bands (NTC-501)
    • B2, B4, B5, B7, B12, B13, B14, B17, B25, B26, B29, B30, B38, B41, B42, B43, B46, B48, B66, B71
  • 5G NR Bands (NTC-502)
    • n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n75, n76, n77, n78
  • 4G LTE Bands (NTC-502)
    • B1, B3, B5, B7, B8, B20, B28, B32, B38, B40, B41, B42, B43

• DEVICE CATEGORY

  • 4G LTE
    • Uplink: Cat 18, 2CA Single TX, 256QAM
    • Downlink: Cat 19, 5CA MIMO 4x4. 256QAM
  • 5G NR
    • Uplink: MIMO 2x2 Single Carrier up to 100MHz, 256QAM
    • Downlink: MIMO 4x4 Dual Carrier up to 120MHz, 256QAM

• PEAK DATA SPEEDS

  • 5G NR SA Sub-6
    • 2.4 Gbps (DL) / 900 Mbps (UL)
  • 5G NR NSA Sub-6
    • 2.5 Gbps (DL) / 550 Mbps (UL)
  • 4G LTE
    • 1.6 Gbps (DL) / 200 Mbps (UL)

• ANTENNA CONNECTORS

  • SMA connectors
    • 4 x Cellular ports for external cellular antennas

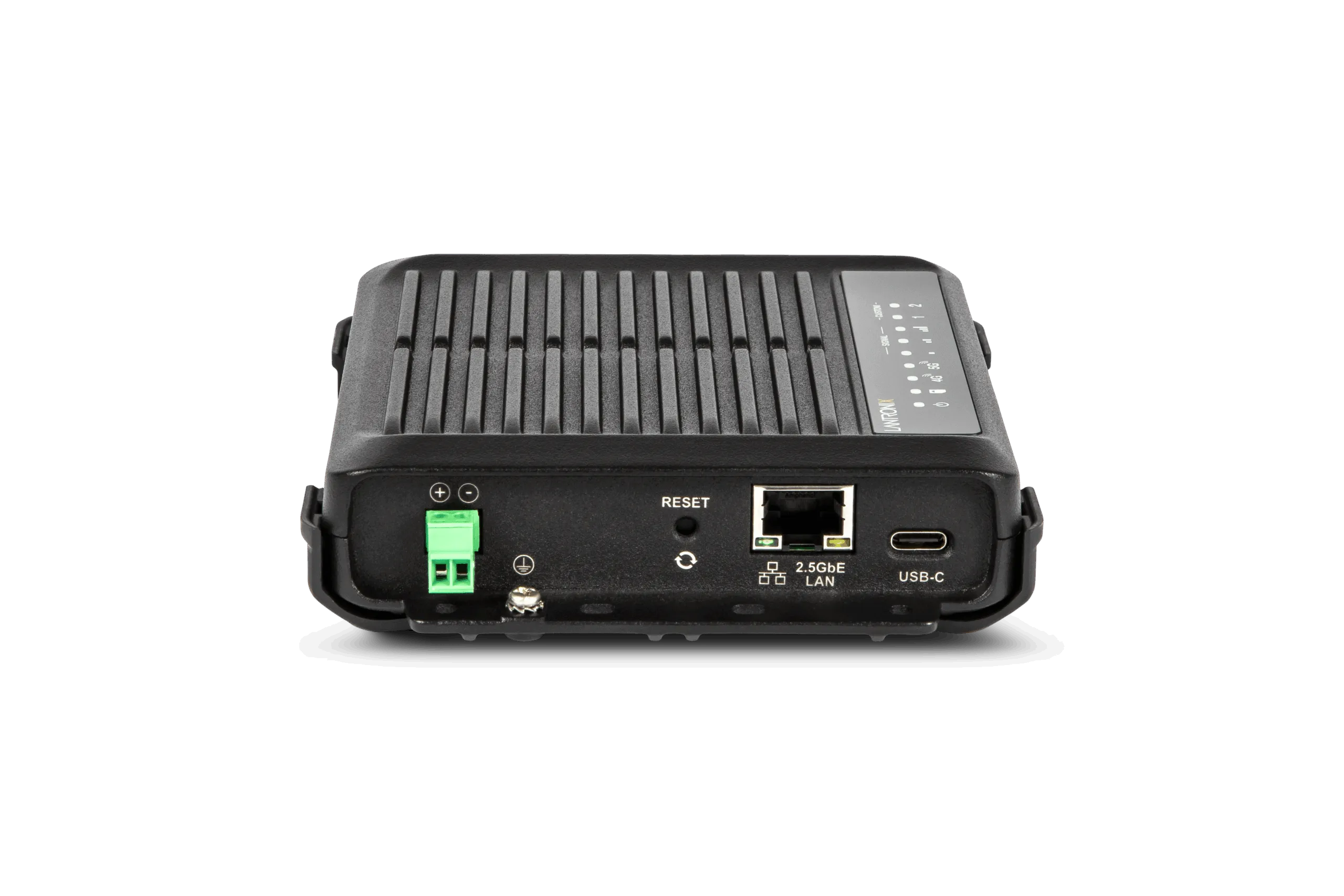

• INTERFACES

  • 1 x 2.5 Gbps LAN port
  • 1 x USB-C port

• LED INDICATORS

  • 1 x Power
  • 1 x SIM
  • 1 x 4G
  • 1 x 5G
  • 3 x Signal strength
  • 2 x Custom indicators

• SIM CARD READER

  • 1 x Mini USIM/SIM Format (2FF) SIM card slot
  • Optional soldered-down SIM (ETSI MFF2 DFN-8 USIM)

• CELLULAR

  • Profile managed packet data connections
  • Profile Routing
  • Data Profile IP Passthrough
  • SIM Security Management (PIN configuration, enable and disable)
  • Automatic and manual cellular band selection
  • Automatic and manual operator selection
  • Configurable automatic SIM switching between external and optional internal SIM
  • 5G and LTE Cell Lock
  • Up to 6 APN configurations
  • Up to 8 Bearers and Traffic Classes

• NETWORK AND ROUTING

  • Static Routing, RIP (v2), Port Forwarding and DMZ
  • Dynamic DNS
  • VRRP for redundant router failover
  • DHCP Server including address reservation by MAC address
  • Custom DNS server definitions
  • DHCP Relay
  • DHCP list display in Web-UI
  • Advanced DHCP Option configuration (Option 42 NTP, Option 66 TFTP)
  • VLAN Management
  • IPS Firewall to protect against DoS attacks
  • Network Service Assurance
  • 5G Dynamic Slicing

• VPN

  • IPSec tunnel termination (for up to 5 tunnels)
  • GRE Tunnelling
  • OpenVPN (Client, Server and P2P)

• ADMINISTRATION AND CONFIGURATION

  • Secure web-based user interface (HTTPS) for full device status and configuration
  • Password protected configuration file backup and restore for quick device configuration and device cloning
  • SSH Command Line Interface for status monitoring, configuration and control
  • SNMP v3 including cellular specific MIB, config and firmware download
  • TR-069 and LWM2M for remote device configuration, configuration backup and restore, and firmware upgrade
  • Ping monitor watchdog (Reset connection on repeated ping failure)
  • Diagnostic Log Viewer (remote and local)
  • System Status and Security Logs
  • NTP Server Support for network time sync of device's system clock
  • Site and location settings
  • Field test information for LTE and 5G
  • MQTT client for device data reporting to Microsoft Azure & AWS cloud services
  • Cumulocity support
  • Advanced Diagnostics and Control via SMS
    • SMS over SGS supported
    • SMS Client (Send/Receive) including inbox, outbox
    • Query status information via SMS - such as Signal Strength, WAN IP, Uptime, and many more
    • Configure device remotely via SMS - such as APN, authentication settings, and many more
    • Execute commands via SMS - such as reboot, reset to defaults, go offline, and many more
    • Secure SMS management using sender whitelisting and password management
    • SMS acknowledgement replies for queries and commands

• FIRMWARE MANAGEMENT

  • Firmware Upgrade locally via LAN or remotely Over-The- Air (HTTPS, SNMP, TR-069, LWM2M)
  • Triggered firmware upgrade via SMS (initiate download & install from HTTPS)

• TEMPERATURES

  • Operating Temperature Range
    • -30°C to +70°C
  • Storage Temperature Range
    • -30°C to +85°C
  • Operating Humidity Range
    • 0-95%

• POWER SUPPLY

  • Power input via 2-way termination block receptacle
  • Field terminable power input via screw type terminal block included
  • DC Power (8 - 40V DC)
  • Recommended DC supply via terminal block (12V 1.5A)

• DIMENSIONS, WEIGHT AND MOUNTING

  • Device dimensions (excluding external antennas):
    • 143.5mm (D) x 110.5mm (W) x 30mm (H)
  • Weight
    • 445g
  • Wall mount support in multiple orientations via embedded mounting holes
  • DIN Rail mount support via plastic bracket included in the box

• ENCLOSURE

  • IP41 rated

Warranty

• 1 Year
