Open-Q™ Development Kits

-Powered by ultra-compact (50x25mm) Open-Q 610 µSOM
-Open-frame Mini-ITX Form-factor carrier board for evaluation and development
-Ethernet, 2x USB, µSD socket, GPIO, sensor board
-Optional LCD/touchscreen and cameras
-Wi-Fi / Bluetooth antenna on carrier board
-Yocto Linux™

Connectivity:

Bluetooth, Wi-Fi

Powered by the Open-Q™ 865XR SOM (Micro System on Module)
Octa-core 64-bit Kryo™ 585 CPU, Adreno™ 650 GPU & Hexagon™ DSP
Carrier board Mini-ITX 170mm x 170mm
Android™ 10

Connectivity:

Bluetooth, Wi-Fi

Powered by the Open-Q™ 845 µSOM (Micro System on Module)
Octa-core 64-bit Kryo™ 385 CPU, Adreno™ 630 GPU & Hexagon™ 685 DSP
Carrier board Mini-ITX 170mm x 170mm
Android™ 9 Pie, Android™ 10, Yocto Linux®

Connectivity:

Bluetooth, Wi-Fi

Powered by the Open-Q™ 835 µSOM (Micro System on Module).
Octa-core 64-bit Kryo™ CPU, Adreno™ 540 GPU & Hexagon™ DSP with Dual HVX
Carrier board Mini-ITX 170mm x 170mm
Android™ 8 Oreo™, Android™ 9 Pie

Connectivity:

Bluetooth, Wi-Fi

Powered by the Open-Q™ 820Pro µSOM (Micro System on Module)
Long-life, higher-speed, Qualcomm® Snapdragon™ 820E (APQ8096SG) SoC
Quad-core 64-bit Kryo™ CPU @ 2.342 GHz, Adreno™ 530 GPU @ 652.8 MHz, Hexagon™ 680 DSP with HVX
Carrier board 170mm X 170mm, SOM 50mm x 25mm
Android™ 9 Pie, Debian Linux®

Connectivity:

Bluetooth, Wi-Fi

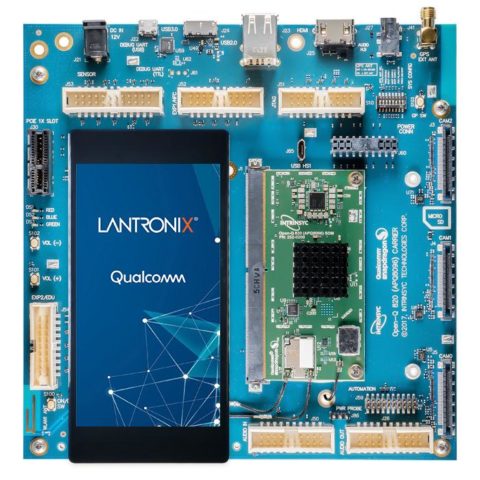

Powered by the Open-Q™ 820 µSOM (Micro System on Module)
Quad-core 64-bit Kryo™ CPU, Adreno™ 530 GPU & Hexagon™ 680 DSP with HVX
Carrier board 170mm X 170mm, SOM 50mm x 25mm
Android™ 7 Nougat, Android™ 8 Oreo™, Linux®, Android™ 9 Pie
See the Open-Q™ 820 SOM vs. Open-Q™ 820 µSOM selection guide here

Connectivity:

Bluetooth, Wi-Fi

Powered by the Open-Q™ 820 SOM (System on Module)
Quad-core 64-bit Kryo™ CPU, Adreno™ 530 GPU & Hexagon™ 680 DSP with HVX
Carrier board 170mm X 170mm, SOM 82mm x 42mm
Android™ 7 Nougat, Android™ 8 Oreo™, Linux®, Android™ 9 Pie
See the Open-Q™ 820 SOM vs. Open-Q™ 820 µSOM selection guide here

Connectivity:

Bluetooth, Wi-Fi

Powered by the Open-Q™ 810 SOM (System on Module)
Octa-core ARM® Cortex® quad A57, quad A53,Adreno™ 430 GPU, Hexagon™ v5.5 DSP
Carrier board 170mm X 170mm, SOM 82mm x 42mm
Android™ 6 Marshmallow

Connectivity:

Bluetooth, Wi-Fi

Powered by the Open-Q™ 800 SOM (System on Module)
Quad-core Krait™, Adreno™ 330 GPU, Hexagon™ QDSP6
Carrier board 170mm X 170mm, SOM 82mm x 42mm
Android™ 4 Jelly Bean

Connectivity:

Bluetooth, Wi-Fi

Powered by the Open-Q™ 660 µSOM (Micro System on Module)
Octa-core 64-bit Kryo™ 260 CPU, Adreno™ 512 GPU & Hexagon™ 680 DSP
Carrier board Mini-ITX 170mm x 170mm
Android™ 9 Pie

Connectivity:

Bluetooth, Wi-Fi

Powered by the Open-Q™ 626 µSOM (Micro System on Module)
Octa-Core 64-bit ARM® Cortex™ A53 2.2GHz CPU (APQ 8053Pro)
Carrier board 170mm x 170mm
Android™ 9, Android™ 10,  Yocto Linux®

Connectivity:

Bluetooth, Wi-Fi

Powered by the Open-Q™ 624A SOM (System on Module)
Octa-Core 64-bit ARM® Cortex™ A53 1.8GHz
Carrier board 170mm x 115mm
Android™ 8 Oreo™

Connectivity:

Bluetooth, Wi-Fi

Powered by the Open-Q™ 410 SOM (System on Module)
Quad-core 64-bit ARM® Cortex® A53, Adreno™ 306 GPU, Hexagon™ v5 DSP
Carrier board 130mm X 130mm, SOM 44mm x 26.5mm
Android™ 7 Nougat, Android™ 5 Lollipop, Windows™ 10 IoT Core, Linux®

Connectivity:

Bluetooth, Wi-Fi

Powered by the Open-Q™ 2500 SOM (System on Module)
Quad-Core ARM Cortex A7 (32-bit) at 1.094GHz
Carrier board 170mm x 170mm,SOM 31.5mm x 15mm
Optimized Android™ for Wearables

Connectivity:

Bluetooth, Wi-Fi

Powered by the Open-Q™ 212A SOM (System on Module)
Home Hub and Smart Audio Dev Platform
Carrier board 170mm x 115mm
Linux Home Hub OS

Connectivity:

Bluetooth, Wi-Fi

Powered by the Open-Q™ 2100 SOM (System on Module)
Quad-core ARM Cortex A7 up to 1.094GHz
Carrier board nano-ITX 120mm x 120mm, SOM 31.5mm x 15mm
Android™ 7 Customized for Wearable products

Connectivity:

Bluetooth, Wi-Fi
