Open-Q™ 6490CS SMARC SOM Development Kit

Supporting the Open-Q™ 6490CS SMARC System on Module (SOM)

Product Brief

Overview

The Open-Q™ 6490CS SMARC SOM Development Kit is the premier evaluation and prototyping platform for Lantronix’s next-generation industrial SMARC System on Module (SOM) product line. Powered by the high-performance Qualcomm^®Dragonwing™ QCS6490 chipset, this versatile kit accelerates proof-of-concept engineering for advanced computer vision and multimedia applications.

Designed to a standard SMARC form factor, the platform seamlessly showcases the SOM’s elite capabilities, exposing robust interfaces for MIPI CSI cameras, displays, Ethernet, high-fidelity audio, and sensors. It serves as both an ideal starting point for product evaluation and a comprehensive reference design for complex hardware integration.

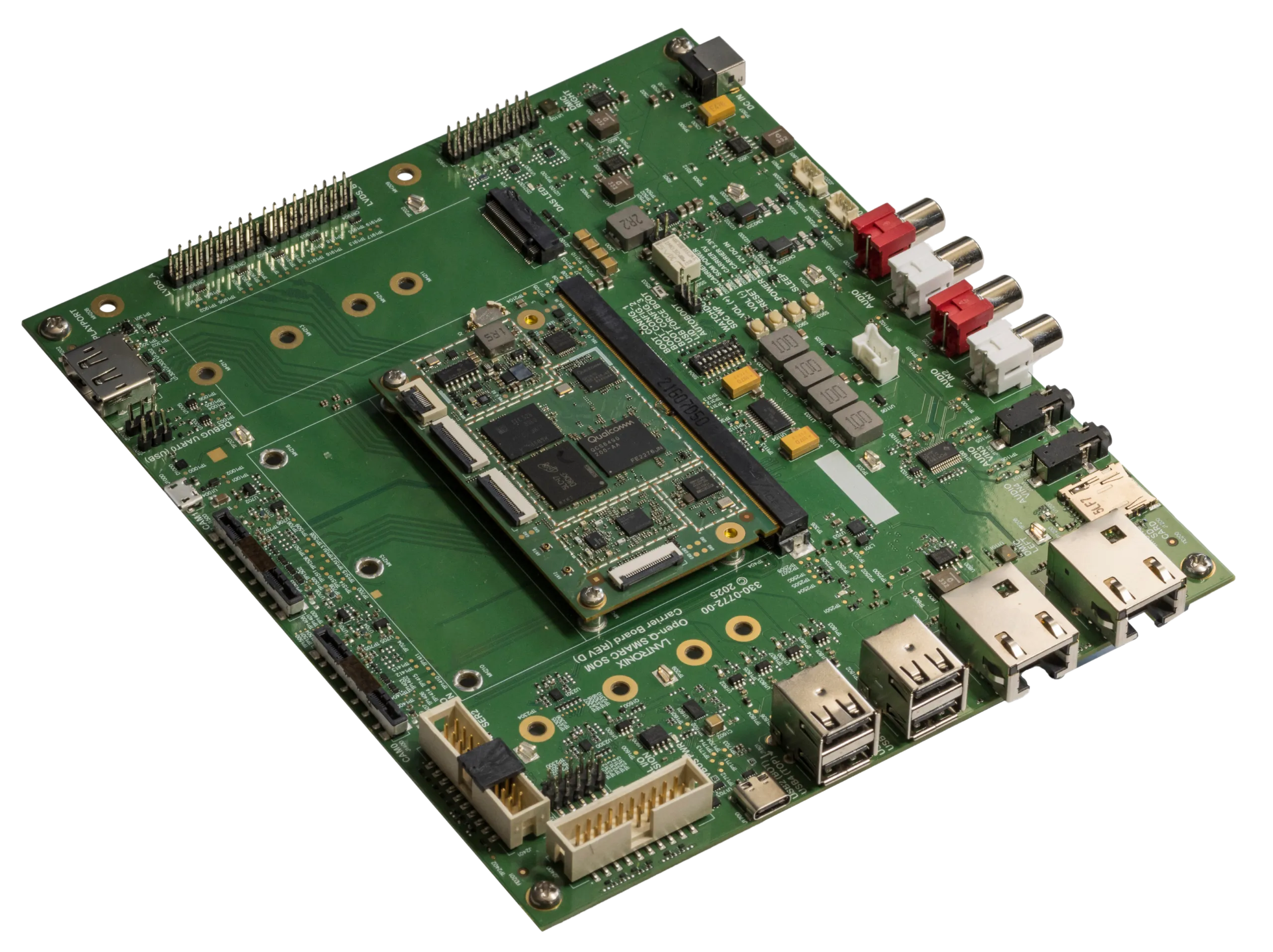

Each production-ready kit delivers a complete development reference platform. It features the Open-Q™ 6490CS SMARC SOM, an open-frame carrier board for unrestricted I/O access, and a curated suite of accessories engineered to compress your time-to-market.

Features

Qualcomm® Dragonwing™ QCS6490 SoC
Up to 8GB LPDDR5 RAM + 64GB UFS
Additional storage via SD card and NVME
Multiple D-PHY MIPI camera & Display Ports
Multiple high speed connectivity options
Supports SMARC 2.2 SOM
Android™ 13 and Qualcomm Linux

Engineering Services

Lantronix leverages our unparalleled engineering expertise and product development best practices to deliver high quality, innovative products, cost-effectively, and on time.

Learn More

Specifications

Open-Q™ 6490CS SMARC SOM
- Processors
  - Qualcomm® Dragonwing™ QCS6490 SoC built on 6nm technology:
  - Kryo™ 670 Octa-core CPU: 1 Prime @ 2.7 GHz + 3 Gold @ 2.4 GHz + 4 Silver @ 1.8 GHz
  - Hexagon™ 770 with Hexagon Vector eXtensions (HVX)
- Memory/Storage
  - Up to 8GB LPDDR5 and 64GB UFS
  - Supports external NVMe and μSD card storages
- Wireless
  - Supports up to Wi-Fi 6E, 2×2 MU-MIMO + Bluetooth 5.2
Open-Q™ 6490CS SMARC SOM Carrier Board
- Display Interfaces
  - DisplayPort v1.4
  - LVDS Connectors; Supporting LVDS panels up to 1920 × 1080p at 60 fps
- Camera Interfaces
  - 1x MIPI 2-lane CSI D-PHY 1.2 with CCI I2C control
  - 1x MIPI 4-lane CSI D-PHY 1.2 with CCI I2C control
  - *additional 3x MIPI CSI connectors on the SOM
  - Compatible camera module: Lantronix IMX258 13MP (QC-DB-U10006)
- Audio Interfaces
  - RCA 2 Channel Audio input
  - RCA 2 Channel Audio output
  - TRS connector Audio input
  - DMIC
- I/O Interfaces
  - 4× USB 2.0 ports, 1× USB 3.1 Type-C port
  - Micro USB debug UART and serial debug UART connectors
  - MicroSD socket
  - GPIO, I²C, UART, CAN, and JTAG interfaces
  - Digital I/O expansion headers
  - M.2 M-Key connector for PCIe
  - 2× Gigabit Ethernet interfaces
- Power
  - 12V input
- Form Factor
  - 200mm x 170mm
- OS Support
  - Android 13 and Qualcomm Linux

*QCS6490 Chipset Performance, see SOM/SIP Release Notes for details on tested configurations and platforms.

Specifications are subject to change without notice. Not all features listed may be supported in software. All brand or product names are trademarks or registered trademarks of their respective owners. Open-Q is a trademark of Lantronix, Inc. Qualcomm and Qualcomm Dragonwing are trademarks or registered trademarks of Qualcomm Incorporated. Qualcomm QCS6490, Qualcomm Adreno, Qualcomm Hexagon, Qualcomm Kryo, Qualcomm Spectra and Qualcomm AI Engine are products of Qualcomm Technologies, Inc. and/or its subsidiaries. Qualcomm, Adreno, Hexagon, Kryo and Spectra are trademarks of Qualcomm Incorporated, registered in the United States and other countries. Kryo, Spectra and IZat are trademarks of Qualcomm Incorporated. Used with permission.

Lantronix and Open-Q and their respective logos are trademarks, registered and otherwise, of Lantronix Corporation in Canada, European Union, Taiwan, United States of America and other jurisdictions.

Part Numbers

Filter by type:


Part Number	Name	Description
LOQ-6490-SMARC-EVK	Open-Q™ 6490 SMARC Development Kit	Open-Q™ 6490 SMARC devkit with SOM (8GB/64GB), BT/WiFi antennas, USB debug Cable, and accessories	Contact Us
