Coming Soon!

NTC-201 Series

4G LTE CAT 1BIS INDUSTRIAL IOT ROUTER

Secure, managed connectivity for critical industrial IoT. The NTC-201 pairs reliable LTECat 1bis performance with Percepxion™ cloud management, enabling zero-touchprovisioning, remote fleet monitoring and CRA-compliant firmware updates across thefull device lifecycle. Built for demanding environments and backed by an NDAA-compliant, diversified supply chain, this single globally certified SKU makes worldwidedeployment simple, resilient, and cost-effective.

Product Brief Request a Demo

Key Differentiators

Global Connectivity

One certified SKU. One antenna. One purpose-built design — streamlining installation and standardizing deployments worldwide.

Edge Intelligence

Run custom applications directly on the NTC-201 using the Linux SDK. Process and act on data at the source — no external industrial computer required.

NDAA-compliant

Procurement-ready for regulated and government-adjacent programs without additional compliance review.

Zero Truck-Roll Management

Percepxion delivers OTA firmware, remote configuration, and SMS diagnostics — keeping remote assets online and manageable without a site visit.

Overview

WORLDWIDE CONNECTIVITY

Supporting all global 4G LTE bands, the NTC-201 ensures seamless deployment across regions without compatibility concerns. Powered by LTE Category 1bis, it delivers next-generation connectivity—combining reliable performance and cost efficiency for industrial IoT and remote operations.

POWERFUL EDGE PROCESSING

The NTC-201 runs on a robust Linux-based operating system, enabling custom applications built with the Software Development Kit (SDK) to execute directly on the device. This eliminates the need for external industrial computers, reducing complexity and cost while delivering true edge intelligence.

REMOTE MANAGEMENT

Cloud-ready with TR069, MQTT/s, TLS 1.3 support and integration with Percepxion™ for centralized device management. IoT deployments in remote locations can be managed in real time, minimizing the need for site visits and reducing manual maintenance costs.

SOLUTION FEATURES

Simplified IoT Solution

One globally certified SKU with DIN rail and wall-mount options, rugged IP40 housing, and plug-and-play LED status — ready for the field, out of the box

Enterprise-Grade Security

IPSec (5 tunnels), OpenVPN, TLS 1.3, SNMP v3, and SMS sender whitelisting provide a layered security stack built for unattended industrial environments.

Cloud Management Included

Remote management via Percepxion cuts operational cost — fewer site visits, faster troubleshooting, and fleet-wide firmware updates from a single pane of glass.

Harsh Environment Ready

IP40 rated: Operates from -30°C to +70°C on 8–40V DC. Optional soldered MFF2 SIM eliminates vibration failures in demanding industrial, traffic, and surveillance applications.

FOCUS APPLICATIONS

Vending & Ticketing

Always-on payment and telemetry for unattended machines

Smart Buildings

Connect BMS controllers, HVAC, fire alarm panels, energy assets across distributed sites.

Access Control

Reliable uplink for gates, readers and building entry systems

Retail & Digital Signage

Keep distributed displays online, monitored and remotely updated

Percepxion Platform

Connect, Update, and Stay Compliant

Percepxion turns a fleet of connected assets into a single managed workflow with zero-touch provisioning and centralized control. Onboard devices across every site — from digital signage to fire alarm panels — then monitor status, push configuration, and deliver firmware and security updates over the air, without a truck roll or a building-IT request. Faster deployment, fewer site visits, and a clear, auditable path to keeping every asset current and CRA-ready.

Demo Today Explore Percepxion

Specifications

CELLULAR BANDS
- 5G NR Bands (NTC-551)
  - n2, n5, n7, n12, n13, n14, n25, n26, n29, n30, n38, n41, n48, n66, n71, n77, n78
- 4G LTE Bands (NTC-551)
  - B2, B4, B5, B7, B12, B13, B14, B17, B25, B26, B29, B30, B38, B41, B42, B43, B46, B48, B66, B71
- 5G NR Bands (NTC-552)
  - n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n75, n76, n77, n78
- 4G LTE Bands (NTC-552)
  - B1, B3, B5, B7, B8, B20, B28, B32, B38, B40, B41, B42, B43
DEVICE CATEGORY
- LTE FDD Cat 1bis 3GPP Rel 13 compliant
  - Downlink up to 10 Mbps
  - Uplink up to 5 Mbps
- ANTENNA CONNECTORS
  - 1 x SMA antenna connector
INTERFACES
- 1 x 100Base-T Ethernet RJ45 port
- 1 x Recessed multifunctional reset button
  - Reboot
  - Reboot into recovery mode
  - Reset to factory default settings
- LED INDICATORS
  - 1 x Power
  - 1 x SIM
  - 1 x 4G
  - 3 x Signal strength
  - 1 x Custom indicators
SIM CARD SUPPORT
- 1 x SIM card slot supports Mini USIM/SIM Format (2FF)
- Optional soldered-down SIM (ETSI MFF2 DFN-8 USIM)
PROCESSOR AND STORAGE
- 1 GHz ARM Cortex A8 processor with 256 MB RAM
- 512 MB flash memory storage
CELLULAR
- Profile managed packet data connections
- Profile Routing
- SIM Management
- SIM Security (PIN configuration, enable and disable)
- Automatic and manual cellular band selection
- Automatic and manual operator selection
- Up to 6 APN configurations
NETWORK & ROUTING
- Static Routing, Port Forwarding and DMZ
- Dynamic DNS
- VRRP for redundant router failover
- DHCP Server, including address reservation by MAC address
- Custom DNS server definitions
- DHCP Relay
- DHCP list display in Web-UI
- Advanced DHCP Option configuration (Option 42 NTP, Option 66 TFTP, Option 150, Option 160)
- Firewall to protect against DoS attacks
VPN
- IPSec tunnel termination (for up to 5 tunnels)
- GRE Tunnelling
- OpenVPN (Client, Server and P2P)
ADMINISTRATION & CONFIGURATION
- Percepxion™ for centralized cloud-based device monitoring, management, and data insights.
- Secure web-based user interface (HTTPS) for complete device status and configuration
- Password-protected configuration file backup and restore for quick device configuration and device cloning
- SSH Command Line Interface for status monitoring, configuration and control
- SNMP v1/v2/v3, including cellular-specific MIB, config and firmware download
- LWM2M and TR-069 client for remote device configuration, configuration backup and restore, and firmware upgrade
- Ping monitor watchdog (reset the connection on repeated ping failures)
- Diagnostic Log Viewer (remote and local)
- System Status and Security Logs
- NTP Server Support for network time sync of the device’s system clock
- SMS over SGs support
- Advanced Diagnostics and Control via SMS
  - Query status information – such as Signal Strength, WAN IP, and Uptime.
  - Configure the device remotely via SMS – such as APN and authentication settings.
  - Execute commands via SMS – such as reboot and reset to defaults.
  - Secure SMS management using sender whitelisting and password management
  - SMS acknowledgement replies for queries and commands
FIRMWARE MANAGEMENT
- Firmware Upgrade locally via LAN or remotely Over-The-Air (HTTPS, SNMP, TR-069, LWM2M)
- Multiple firmware image storage on the device and dynamic install
- Triggered firmware upgrade via SMS (initiate download & install from HTTPS)
SOFTWARE DEVELOPMENT KIT
- Develop and install custom software applications
- Open Linux standard development environment
- Develop applications/scripting in standard ANSI C/Shell script and LUA
- Package manager built into Web-UI for Application installation/removal
- API (C, LUA and Shell libraries) to the unit’s internal Runtime Database to allow complete status monitoring, configuration and control of the device from custom applications
TEMPERATURE
- Operating Temperature Range
  - -40°C to +70°C
- Storage Temperature Range
  - -40°C to +85°C
- Operating Humidity Range
  - 0-95%
POWER SUPPLY
- Power input
  - via 2-way termination block receptacle
  - Field terminable power input via screw-type terminal block included
- DC Power
  - 8 – 40V DC
  - via terminal block (12V 1.5A)
DIMENSIONS & MOUNTING
- Device dimensions (excluding external antennas)
  - 105 mm (L) x 88 mm (W) x 35 mm (H)
- Device dimensions with Mounting Bracket (excluding external antennas)
  - 111 mm (L) x 96 mm (W) x 40 mm (H)
- Wall mount support in multiple orientations via mounting bracket
- DIN Rail mount support via mounting bracket (Top hat section rail TH 35 IEC60715)
ENCLOSURE
- IP40 rated
WARRANTY
- 2 year limited warranty

What’s In The Box (7)

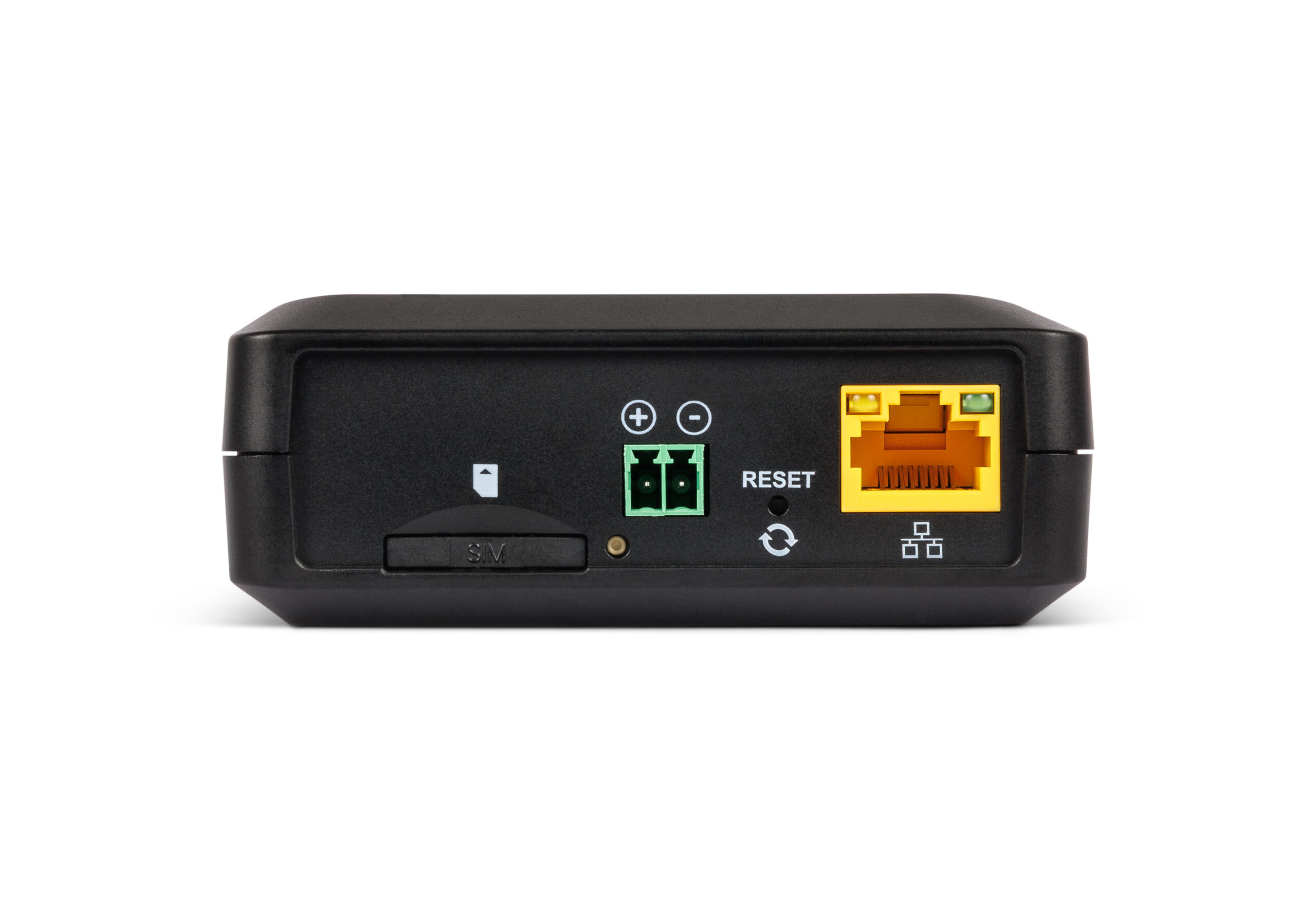

Lantronix NTC-201 router

Box insert

Cellular antenna

1m Ethernet cable 8P8C

DIN rail mounting bracket

Horizontal DIN rail mounting adapter

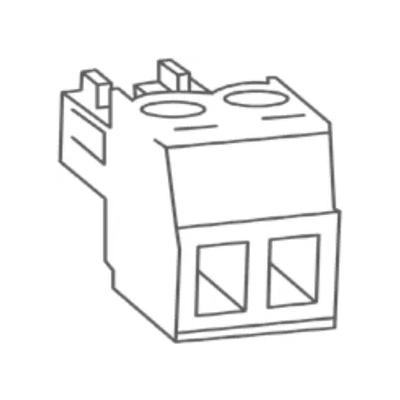

TWO-WAY TERMINAL BLOCK CONNECTOR (PSU not included)

Part Numbers

Filter by type:

MODELS
Part Number	Name	Description
NTC-201-01-01	Worldwide	Certifications: FCC, ISED, CE, RCM, PTCRB, AT&T, Verizon. Cellular Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B34, B38, B39, B40, B41, B66	Contact Us
Antenna
Part Number	Name	Description
NANT-00001-000	4G LTE Antenna	Antenna, Single, LTE 3dBi, L-Hinged, SMA Male	Contact Us
Accessories
Part Number	Name	Description
PSU-0250	Power Supply	12VDC 1.5A Standard Temperature PSU w7 Interchangeable Plugs without DC connector fitted (+/-2KV)	Contact Us
PSU-0250	Power Supply	Accessory, Power Supply, Wall Cube, 12VDC 2.5A, 30W, 2M Cable With 2 Bare Wires, Universal AC Plug EU/UK/US/SAA, +/-2KV	Buy Now
25165	25165	Industrial DIN Rail Mounted Power Supply	Contact Us

ALL YOUR SITES. ONE CONNECTION.

Bring every remote asset — from fire alarm panels to vending machines, access controllers and digital signage — onto a single secure platform with the NTC-201 and Percepxion. Talk with our IoT solution experts to design a deployment that delivers reliable connectivity and the lowest total cost of ownership at any scale.

Contact an Expert
