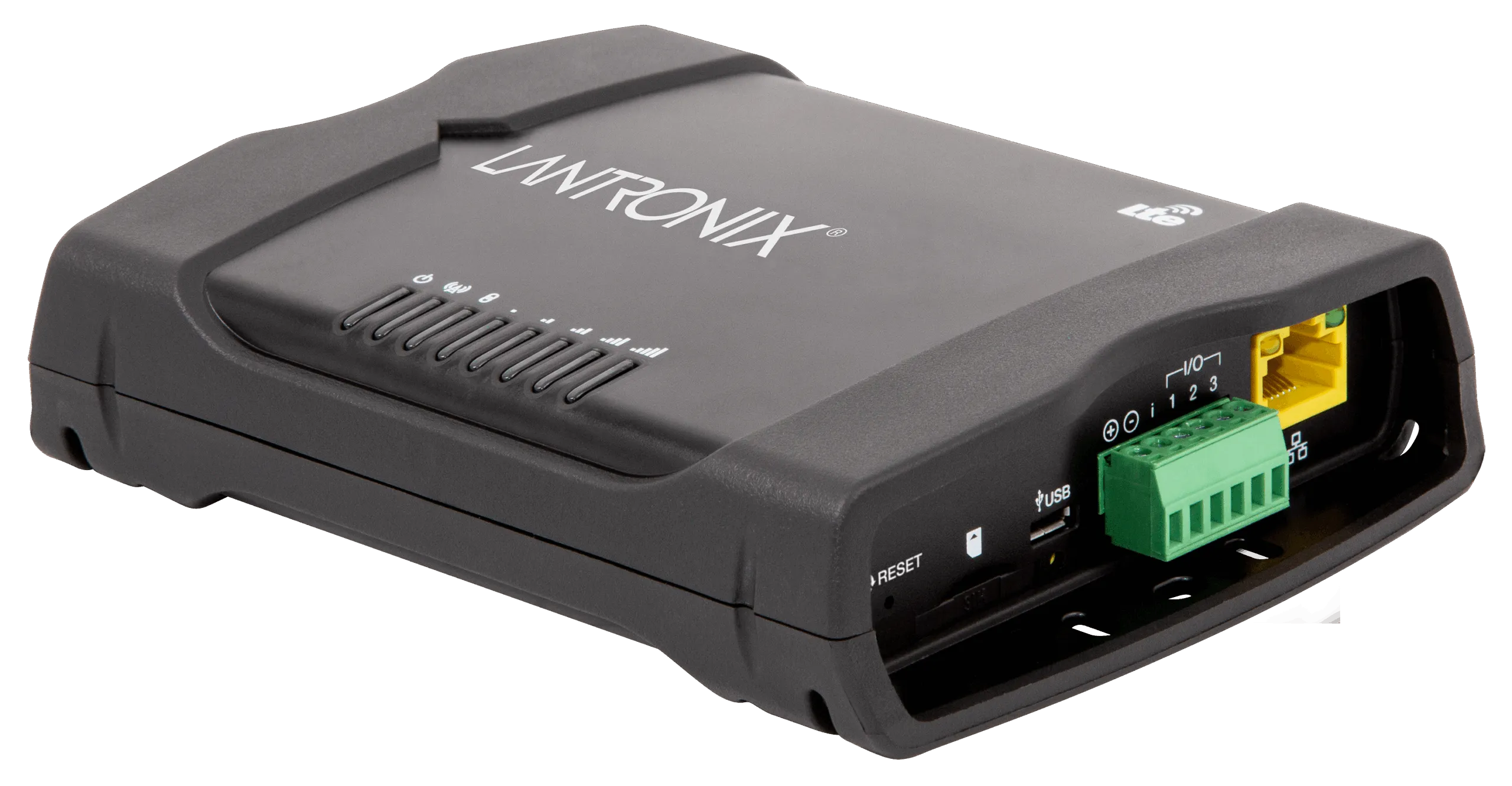

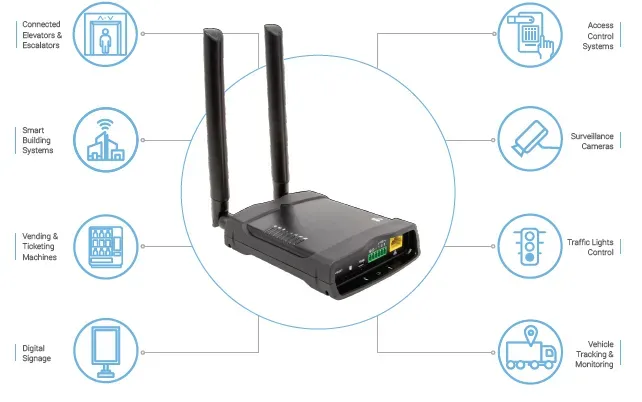

NTC-220 Series

New

NTC-220 Series Tech Specs

• PEAK DATA SPEED (MODEL DEPENDENT)

  • LTE FDD
    • Max10 Mbps (DL) / Max 5 Mbps (UL)
  • LTE TDD
    • Max 8.96 Mbps (DL) / Max 3.1 Mbps (UL)
  • DC-HSPA+
    • Max 42 Mbps (DL) / Max 5.76 Mbps (UL)
  • UMTS
    • Max 384Kbps (DL) / Max 384Kbps (UL)
  • EDGE
    • Max 236.8 Kbps (DL) / Max 236.8 Kbps (UL)
  • GPRS
    • Max 85.6 Kbps (DL) / Max 85.6 Kbps (UL)

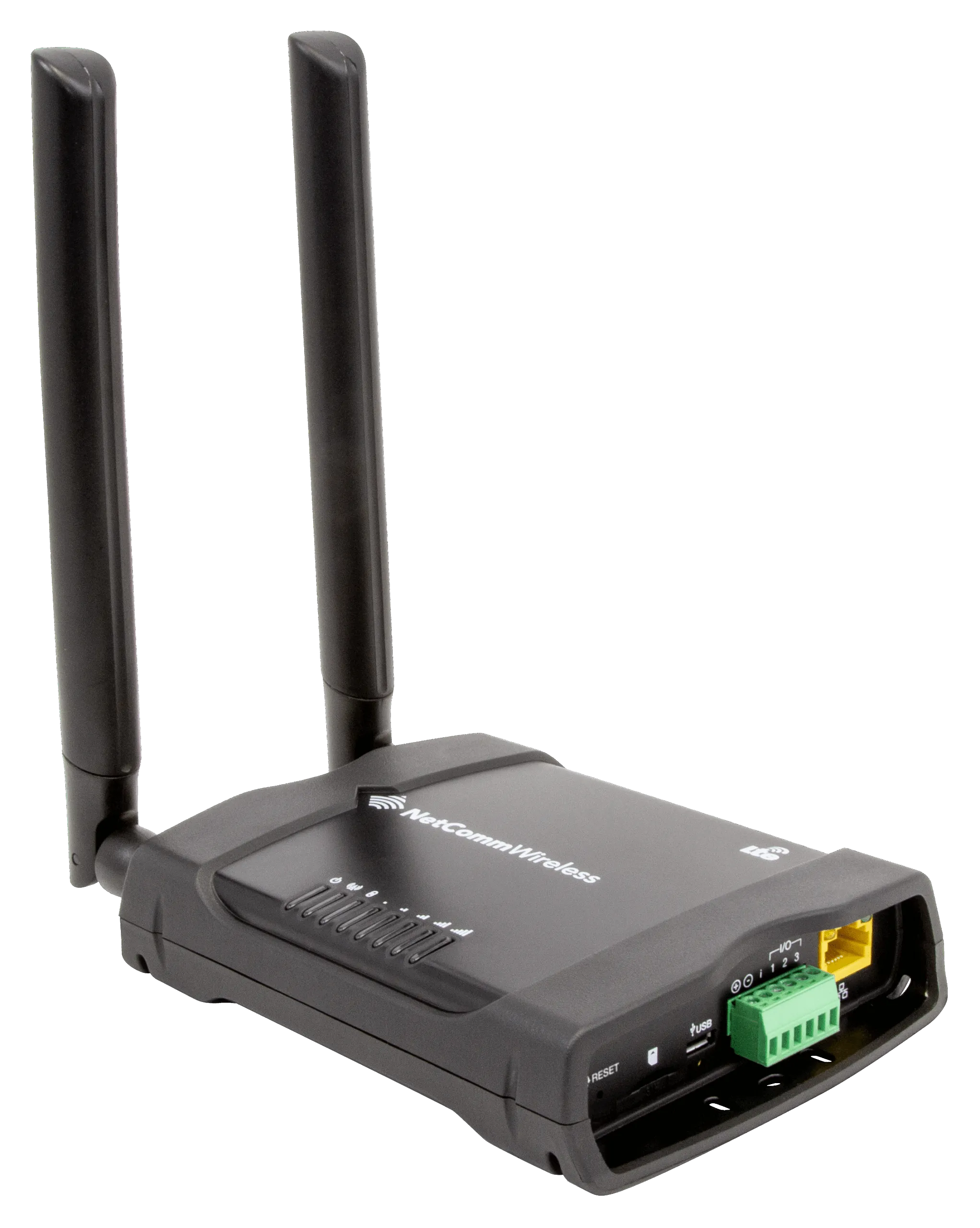

• ANTENNA CONNECTORS

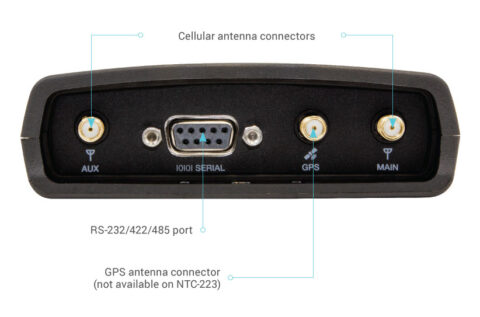

  • 2 x SMA connectors for 4G/3G/2G (1 x Main and 1 x RX Diversity)
  • 1 x SMA connector for GPS (not available on NTC-223)

• ANTENNA SPECIFICATIONS

  • Frequency (MHz): 698-2700
  • Maximum Gain (dBi):
    • 4.71 (NANT-00001)
    • 3.24 (NANT-00006)
  • VSWR: < 3.0:1
  • Height (mm): 201
  • Radome diameter (mm): 17

• INTERFACES

  • 1 x 100Base-T Ethernet RJ45 port
  • 1 x RS232 Serial Port DB-9 female DCE supporting either
  • 9 wire RS232 or RS485/RS422 (software selectable)
  • Software controlled termination resistors for RS485
  • 1 x Micro USB 2.0 OTG interface with 0.5A supply capability
  • I/O terminal block providing:
    • 3 x Multipurpose I/O pins
    • NAMUR (EN 60947-5-6 / IEC 60947-5-6) compatible sensor input
    • Analogue 0V to 30V input
    • Digital input (through measurement of voltage above/ below threshold)
    • Open collector output
  • 1 x Recessed multifunctional reset button
    • Reboot
    • Reboot into recovery mode
    • Reset to factory default settings

• LED INDICATORS

  • 8 x tri-color LEDs
    • Power, Network, a GPS/customizable LED and 5x Signal Strength indicators
  • Easy and clear LED status display for connection status, connected network type, and connection errors

• GPS (NOT AVAILABLE ON NTC-223)

  • GPS
  • GLONASS
  • BeiDou
  • Galileo
  • QZSS

• SIM CARD READER

  • 1 x SIM card slot
    • Supports Mini USIM/SIM Format (2FF)
    • Optional soldered-down SIM (ETSI MFF2 DFN-8 USIM)

• PROCESSOR AND STORAGE

  • 1 GHz ARM Cortex A8 processor with 256 MB RAM
  • 512 MB flash memory storage

• CELLULAR

  • Profile managed packet data connections
  • NAT Disable for framed route configuration
  • Transparent bridge mode using PPPoE to allow the router to transparently forward Public WAN IP address to a downstream device
  • SIM Security Management (PIN configuration, enable and disable)
  • Automatic and manual cellular band selection
  • Automatic and manual operator selection
  • Odometer reading available via Web-UI, CLI and SDK

• NETWORK & ROUTING

  • Static Routing, RIP (v1/v2), Port Forwarding and DMZ
  • Dynamic DNS
  • VRRP for redundant router failover
  • DHCP Server including address reservation by MAC address
  • Custom DNS server definitions
  • DHCP Relay
  • DHCP list display in Web-UI
  • Advanced DHCP Option configuration (Option 42 NTP, Option 66 TFTP, Option 150, Option 160)
  • Data Stream Manager providing ability to create mappings between input and output ports (e.g. Serial Port, SMS, USB) and perform required translation or data processing by each virtual tunnel.
  • Modbus Server TCP/IP Gateway and Client TCP/IP Agent with up to 247 slaves connected to the Serial TCP/IP Gateway
  • Modbus RTU/ASCII frames support

• VPN

  • PPTP Client for VPN connectivity to remote PPTP VPN Server
  • IPSec tunnel termination (for up to 5 tunnels)
  • GRE Tunnelling
  • OpenVPN (Client, Server and P2P)

• ADMINISTRATION & CONFIGURATION

  • Secure web-based user interface (HTTPS) for full device status and configuration
  • Password protected configuration file backup and restore for quick device configuration and device cloning
  • SSH Command Line Interface for status monitoring, configuration and control
  • SNMP v1/v2/v3 including cellular specific MIB, config and firmware download
  • TR-069 Client for remote device configuration, configuration backup and restore, and firmware upgrade
  • SMS Client (Send/Receive) including inbox, outbox
  • Ping monitor watchdog (Reset connection on repeated ping failure)
  • Diagnostic Log Viewer (remote and local)
  • System Status and Security Logs
  • NTP Server Support for network time sync of device’s system clock
  • Device User Guide stored on the device and accessible via the secure web-based user interface (HTTPS)

• Advanced Diagnostics and Control via SMS

  • Query status information – such as Signal Strength, WAN IP, Uptime, and many more
    • Configure device remotely via SMS – such as APN, authentication settings, and many more
  • Execute commands via SMS – such as reboot, reset to defaults, go offline, and many more
  • Secure SMS management using sender whitelisting and password management
  • SMS acknowledgement replies for queries and commands

• FIRMWARE MANAGEMENT

  • Firmware Upgrade locally via LAN or remotely Over-The-Air (HTTPS, SNMP, TR-069, LWM2M)
  • Multiple firmware image storage on device and dynamic install
  • Triggered firmware upgrade via SMS (initiate download & install from HTTPS)

• SOFTWARE DEVELOPMENT KIT

  • Develop and install custom software applications
  • Open Linux standard development environment
  • Develop applications/scripting in standard ANSI C/Shell script and LUA
  • Package manager built into Web-UI for Application installation/removal
  • API (C, LUA and Shell libraries) to the unit’s internal Runtime Database to allow full status monitoring configuration and control of the device from custom applications

• TEMPERATURE

  • Operating Temperature Range: -40°C to +70°C
  • Storage Temperature Range: -40°C to +85°C
  • Operating Humidity Range: 0% to 95%

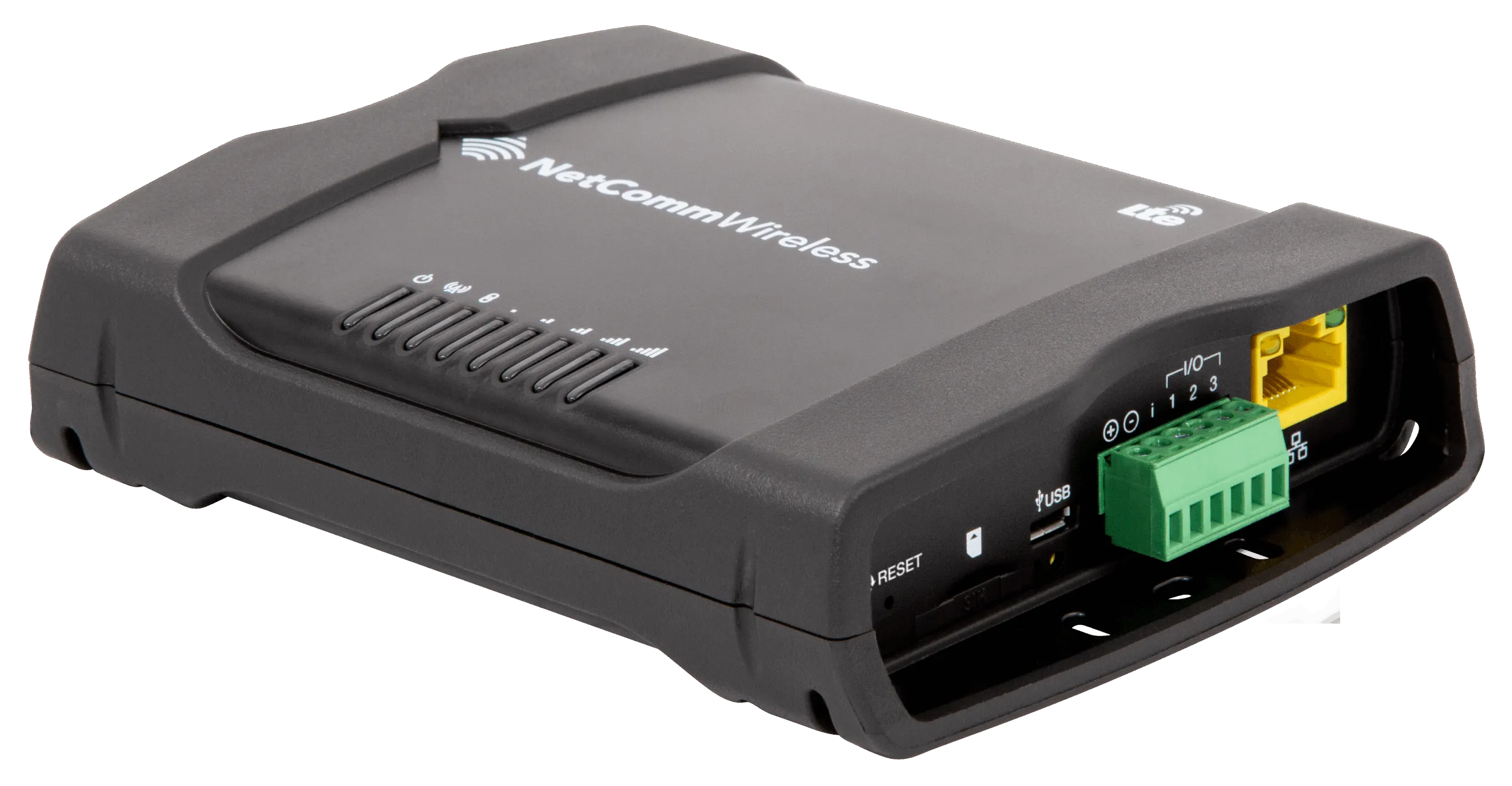

• POWER SUPPLY

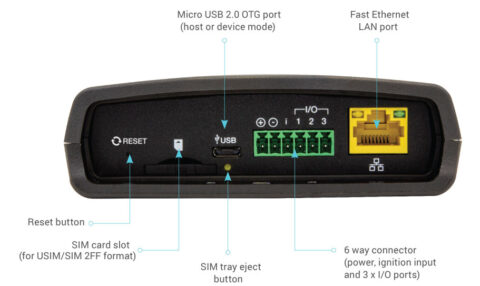

  • Power input via 6-way termination block receptacle
  • Field terminable power input via screw type terminal block included
  • DC Power (8 – 40V DC)
  • 1 x Dedicated ignition input and 3 x I/O ports on 6-way connector (only available on some models)
  • Power consumption 6W, recommended DC supply via terminal block (12V 1.5A)
  • Vehicle compatible protection on DC Input Jack. (ISO7637 standard)

• DIMENSIONS, WEIGHT & MOUNTING

  • Device dimensions (excluding external antenna):
    • 143 mm (L) x 107 mm (W) x 34 mm (D)
  • Weight
    • 221 g (254 g with bracket)
  • Wall mount support in multiple orientations via embedded mounting holes
  • DIN Rail mount support via plastic bracket included in box (Top hat section rail TH 35 IEC60715)

• ENCLOSURE

  • IP41 rated

Warranty

• 1 Year
