FOX Series
New

FOX is a compact, all-in-one cellular telematic gateways combining a rich connectivity choice with our powerful Edge intelligence. NOW with Percepxion Software.

Product Brief Learn More about Percepxion!

Key Features

Send only the data you need to the cloud with the FOX edge processing and local data storage to reduce your recurring cost and ensure the fastest response time from your device.
Secure critical data from cyber-attacks using advanced encryption such as AES, SSL/TLS 1.3.
Collect vehicle information such as tachograph (FMS), RPM (x1000), temperature, and fuel levels with high accuracy.
Support for common fieldbuses like Modbus and others using RS-232/485 interfaces.
Collect ID, buzz, magnetic detection, movement, and temperature using Lantronix BLE sensors, or bring your own.

FOX Series Overview

The Lantronix FOX series is an ideal solution for securely transforming telemetry data from assets such as field equipment and fleet vehicles into actionable insights. When paired with Lantronix Percepxion™ software, it streamlines complex device management tasks, including true zero-touch provisioning, enhancing efficiency and minimizing errors.

The Complete Package to Successfully Deploy Your IoT and Telematics Projects

Having an integration between hardware, connectivity, accessories, and ability to adapt to different field equipment is a critical success factor for all projects depending on telemetry data. Lantronix FOX, a secure intelligent telemetry gateway, combines flexible edge data acquisition and processing, and optimizes the data transmission with the back-office systems. Percepxion™ device management system automates and simplifies device life cycle management, provides real-time monitoring and APIs for easy integration.

Multiple Hardware Interfaces to Connect Your Field Equipment

The FOX series gateways are equipped with diverse set of inputs and outputs and support a wide range of fieldbus protocols. The gateways support cellular connectivity and integrated GNSS technology enables location-based feature sets. Designed for deployment in intricate industrial settings or challenging urban landscapes, the FOX series operates seamlessly with internal or external antennas, significantly streamlining logistics, installation, and ongoing support.

Protect and Process Data at the Edge

Push intelligence to the edge by leveraging the Lantronix PFAL scripting language or widely adopted LUA language. Edge intelligence allows faster reaction to changing conditions compared to cloud-only solutions. It can also reduce the total cost of ownership, when cellular data usage can be optimized by pre-processing and normalizing the data at the edge. FOX series gateways expedite the integration to IoT Platforms by supporting MQTT, Azure, and REST APIs.

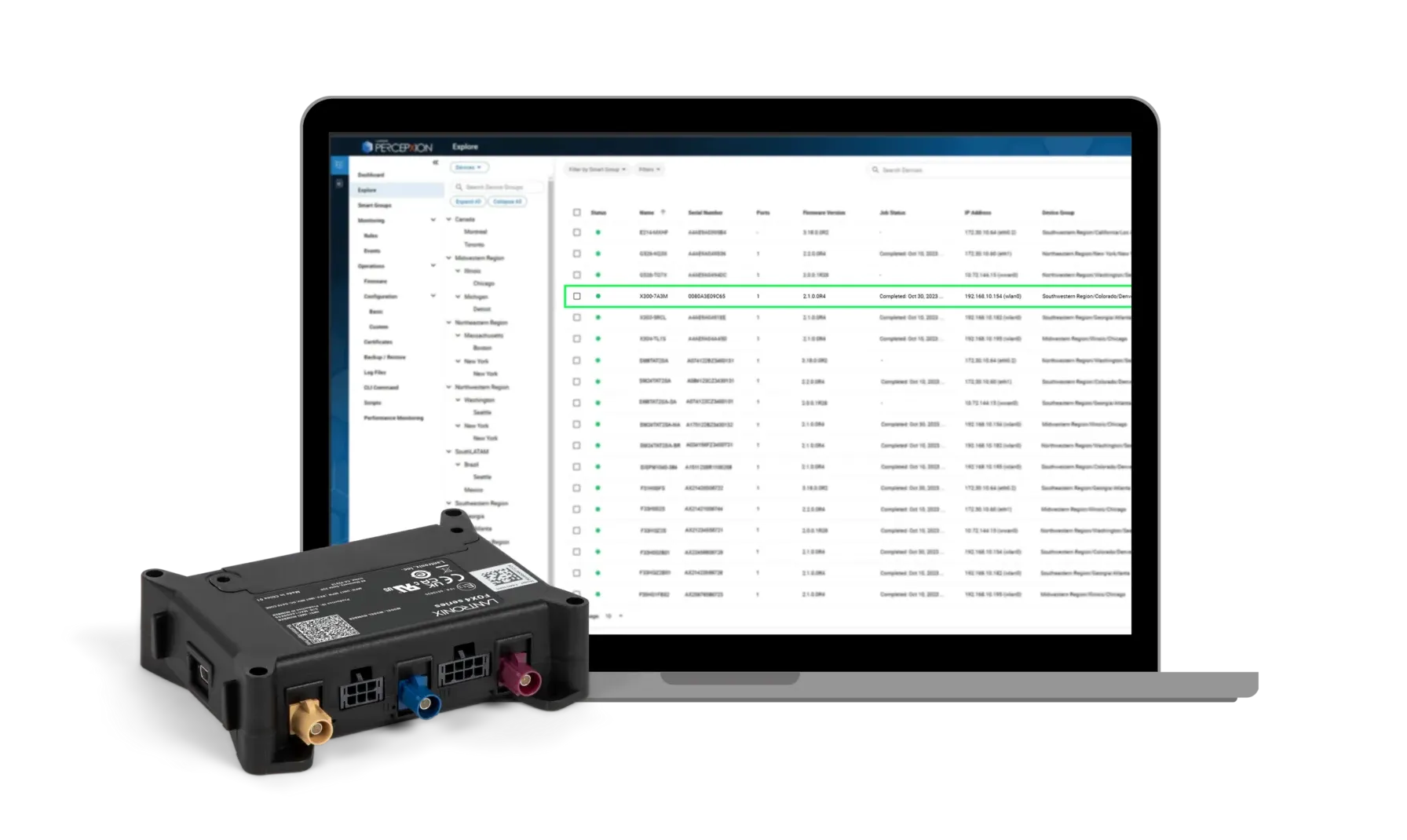

Percepxion™ Centralized Device Management Platform

With the ready-to-use software platform, monitor, manage, and control your devices from anywhere, anytime. The Percepxion platform provides software-defined automation across all your devices and the capture of device telemetry data for event management and analytics.

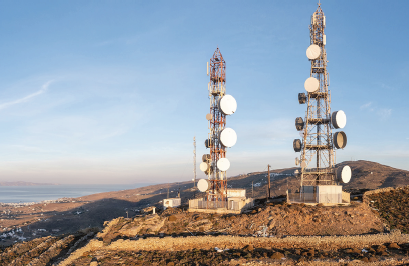

FOX Series Applied to Critical Infrastructure

User configurable Multi-platform communication
Data decoding and buffering
Remote zero-touch provisioning through Percepxion™
– Firmware
– Configuration
– Certificate

Percepxion for IoT Application – Integrate Edge Devices & Device Management into Enterprise IoT Systems

State-of-Art Tracking Technology

State-of-the-art 2G and GNSS technology
3-axis acceleration, internal temperature sensors
Gyro / Magnetic sensors (external only)
Sensor interfaces via RS-232/RS-485/1-Wire/CAN
PFAL programming language
Passive/active RFID connectivity via RS-232

Other Features

Route management
Manage driver hours
SOS alerts using digital input
Driver Identification with RFID
Fully Customizable
Trigger / count

Speed reporting
Black-box features
MEMS interface
Speed reporting
Hardware extendable

Case Studies

Transportation

Lantronix FOX3 Gateway Drives LACOS Farm Equipment Telemetry

Lantronix FOX3 series telematics gateways used to remotely capture and securely share information about farm equipment operations

Learn More

Transportation

Lantronix FOX3 Gateway Powers SATLOG Fleet Telematics Solution

Lantronix telematics gateway used to remotely capture and securely share fleet information.

Learn More

Manufacturing & Agriculture

Quantum Aviation

Empowering Airport Ground Support Equipment

Learn More

FOX Series Tech Specs

Cellular/GNSS
- 4G LTE, with 2G fallback (refer to the table below)
- Internet (TCP/UDP/HTTP/SMTP)
- Multi channel GNSS (GPS/Galileo/GLONASS)
- Dead Reckoning variants
- A-GPS (online / offline /autonomous)
- Protocols: NMEA; PFAL (binary)
- Position Accuracy
  - GPS: 2.5m
  - GLONASS: 4.0m
- Acquisition / Sensitivity
  - Cold Start: GPS 29 s; GLONASS 30 s
  - Tracking: GPS -161 dBm; GLONASS -158 dBm
  - Sensitivity: GPS -148 dBm; GLONASS -145 dBm
- GPS Operational limits
  - Velocity: 500 m/s (972 knots)
  - Altitude: 50.000 m
  - Update rate: 1 Hz
GSM / GNSS Antenna
- Internal and external with automatic/manual
  - Activation with PFAL-Command
- Wi-Fi 2.4, BLE 5.2
  - FOX4 Only
Power
- Power supply: +10.8 V~ 60 V DC
- Internal 1000 mAh rechargeable battery
  - Optional / Accessory
- Average Power Consumption
  - Normal operation: 50mA @ 12 VDC
  - Sleep mode: < 1mA @ 12 VDC
Environmental Data
- Operating temp.: -40°C to +85°C
- Storage temp.: -40°C to +85°C
- GSM: -40°C to +85°C
  - The GSM/GPRS module is fully functional (-20°C to + 55°C meets the 3GPP specifications)
- Battery Discharging temp.: -20°C to +60°C
  - Applicable with backup battery. Storage and using conditions of the device with battery option are limited to the battery temperature range.
- Charging temp.: 0°C to +45°C
Physical Specifications
- Dimensions (LxWxH): 105 mm x 83 mm x 28 mm
Security Features
- Secure Boot
- ATEC608 secure element
  - FOX4 only
Interfaces
- 3 x Digital/analog IO ports (user-configurable)
- 1 x Predefined digital input (Ignition)
- 3 x LED indicators (user-configurable)
- 2 x RS-232 Ports or 1x RS-232 1x RS-485 variants
- 1 x 10pin Mini-USB connector for IOBOX-MINI and IOBOX-CAN
  - Optional / Accessory
- 1 x 1-Wire interface (incl. 5V Phantom Power)
- 1 x I²C interface
- 1 x CAN-Bus Interface (uses 2 of 3 I/Os)
  - Optional / Accessory
  - Hardware Premium Features: CAN-interface.
- 1 x 2FF SIM Card Holder
- 1 x USB 2.0 interface
Sensors
- 3-axis Acceleration/Temperature
- - 3DG: ± 8g (programmable)
- - Temperature: - 50 to + 120°C (programmable)
Processor Core
- RTC
- 8 MB Flash (History / Firmware / Configuration)

Product Selection Guide

SKU	REGION	DEAD RECKONING	BATTERY	RS-485	BLE	Wi-Fi	4G LTE	3G/2G FB
F33H002B01	WORLDWIDE		x				M, NB1	x
F33H002B02	WORLDWIDE		x				M, NB1	x
F33H002S	WORLDWIDE						M, NB1	x
F33H007S	JAPAN		x				M, NB2
F33H502S	WORLDWIDE		x	x			M, NB1	x
F33HGZ2B01	WORLDWIDE		x		4.1		M, NB1	x
F43H102S	EMEA		x		5.2	802.11n	M, NB2	x
F43H207S	JAPAN		x		5.2	802.11n	M, NB2
F43H20FS	WORLDWIDE		x		5.2	802.11n	M, NB2
F43H502S	EMEA		x	x	5.2	802.11n	M, NB2	x
F43H507S	JAPAN		x	x	5.2	802.11n	M, NB2
F43H50FS	WORLDWIDE		x	x	5.2	802.11n	M, NB2
F43R202S	EMEA	x	x		5.2	802.11n	M, NB2	x
F43R20FS	WORLDWIDE	x	x		5.2	802.11n	M, NB2
F44H102S	EMEA		x		5.2	802.11n	Cat-1	x
F44H104S	ANZ, LATIN AMERICA		x		5.2	802.11n	Cat-1	x
F44H502S	EMEA		x	x	5.2	802.11n	Cat-1	x
F44H504S	ANZ, LATIN AMERICA		x	x	5.2	802.11n	Cat-1	x

FOX Series Downloads

Product Brief

Lantronix Part #	Name	Description	Order Now
Sorry, no parts were found that match that search query.
FOX Promotion Kit - Recommended For New Customers
Lantronix Part # F33H002B02	Name FOX3, EMEA, LTE M, PROMO KIT	FOX3 EMEA, PROMOTION KIT, INCLUDES ALL ACCESSORIES NEEDED, EVAL BOARD, SIM CARD, LEVEL 2 TECH SUPPORT, PERCEPXION DEVICE MANAGEMENT PLATFORM	Buy Now
Standard Unit - Single Pack
Lantronix Part # F33H002S	Name FOX3, EMEA, LTE M	FOX3, EMEA, LTE M & NB1 BANDS 2, 3, 4, 5, 8, 12, 13, 20, 2G FB, GNSS, ACC., INT. & EXT. ANT., MINI SIM, RS232, 3 I/O, I2C, RTC, 1 WIRE	Buy Now
Lantronix Part # F33H002B01	Name FOX3, EMEA, LTE M, BAT-01	FOX3, EMEA, LTE M & NB1 BANDS 2, 3, 4, 5, 8, 12, 13, 20, 2G FB, GNSS, ACC., INT. & EXT. ANT., MINI SIM, RS232, 3 I/O, I2C, RTC, 1 WIRE, BAT-01	Buy Now
Lantronix Part # F33H007S	Name FOX3, JAPAN, LTE M	FOX3, JAPAN, LTE M & NB2 BANDS 1, 8, 19, GNSS, ACC., INT. & EXT. ANT., MINI SIM, RS232, 3 I/O, I2C, RTC, 1 WIRE	Buy Now
Standard Unit With BLE - Single Pack
Lantronix Part # F33HGZ2S	Name FOX3, EMEA, LTE M, BLE	FOX3, EMEA, LTE M & NB1 BANDS 2, 3, 4, 5, 8, 12, 13, 20, 2G FB, GNSS, BLE 4.1, ACC., INT. & EXT. ANT., MINI SIM, RS232, 3 I/O, I2C, RTC, 1 WIRE	Contact Us
Lantronix Part # F33HGZ2B01	Name FOX3, EMEA, LTE M, BLE, BAT	FOX3, EMEA, LTE M & NB1 BANDS 2, 3, 4, 5, 8, 12, 13, 20, 2G FB, GNSS, BLE 4.1, ACC., INT. & EXT. ANT., MINI SIM, RS232, 3 I/O, I2C, RTC, 1 WIRE, BAT-01	Buy Now
Lantronix Part # F43H102S	Name FOX4 LTE M1 EMEA, 2G FALLBACK	FOX4, EMEA, LTE M & NB2 BANDS 1, 2, 3, 4, 5, 8, 12, 13, 18, 19, 20, 25, 26, 28, 66, 85, 2G FB, GNSS, WIFI 4, BLE 5.2, ACC., INT. & EXT. ANT., MINI SIM, 2x RS232, 3 I/O, I2C, RTC, 1 WIRE, BAT-01	Contact Us
Lantronix Part # F43H207S	Name FOX4 LTE M1 JAPAN	FOX4, JAPAN, LTE M & NB2 BANDS 1, 2, 3, 4, 5, 8, 12, 13, 18, 19, 20, 25, 26, 28, 66, 71, 85, GNSS, WIFI 4, BLE 5.2, ACC., INT. & EXT. ANT., MINI SIM, 2x RS232, 3 I/O, I2C, RTC, 1 WIRE, BAT-01	Buy Now
Lantronix Part # F43H20FS	Name FOX4 LTE M1 WW	FOX4, WW, LTE M & NB2 BANDS 1, 2, 3, 4, 5, 8, 12, 13, 18, 19, 20, 25, 26, 28, 66, 71, 85, GNSS, WIFI 4, BLE 5.2, ACC., INT. & EXT. ANT., MINI SIM, 2x RS232, 3 I/O, I2C, RTC, 1 WIRE, BAT-01	Contact Us
Lantronix Part # F44H102S	Name FOX4 LTE CAT1 EMEA, 2G Fallback	FOX4, EMEA, LTE CAT 1 BANDS 1, 3, 7, 8, 20, 28, 3G 1& 8, 2G 3 & 8, GNSS, ACC., WIFI 4, BLE 5.2, INT. & EXT. ANT., MINI SIM, 2x RS232, 3 I/O, I2C, RTC, 1 WIRE, BAT-01	Buy Now
Standard Unit With BLE And Dead Reckoning - Single Pack
Lantronix Part # F43R20FS	Name FOX4 LTE M1 WW DR	FOX4, WW, LTE M & NB2 BANDS 1, 2, 3, 4, 5, 8, 12, 13, 18, 19, 20, 25, 26, 28, 66, 71, 85, DR GNSS, WIFI 4, BLE 5.2, ACC., INT. & EXT. ANT., MINI SIM, 2x RS232, 3 I/O, I2C, RTC, 1 WIRE, BAT-01	Contact Us
RS-485 Unit - Single Pack
Lantronix Part # F33H502S	Name FOX3, Worldwide, 4G CatM1	TRACKER FOX3-4G-M1-FB-WW-4G CATM1/NB1 BANDS 2, 3, 4, 5, 8, 12, 13, 20-2G FB-GNSS-ACCELEROMETER, INT/EXT ANT-MINI SIM-2 X RS485-3 I/O-I2C-RTC-1 WIRE-MINI USB-AVL SOFTWARE BAT-01 1000 MAH LI-ION BATTER	Buy Now
RS-485 Unit With BLE - Single Pack
Lantronix Part # F43H502S	Name FOX4 LTE M1 EMEA, 2G Fallback, RS485	FOX4, EMEA, LTE M & NB2 BANDS 1, 2, 3, 4, 5, 8, 12, 13, 18, 19, 20, 25, 26, 28, 66, 85, 2G FB, WIFI 4, BLE 5.2, GNSS, ACC., INT. & EXT. ANT., MINI SIM, 1x RS232, 1x RS485, 3 I/O, I2C, RTC, 1 WIRE, BAT-01	Contact Us
Lantronix Part # F43H507S	Name FOX4 LTE M1 JAPAN, RS485	FOX4, JAPAN, LTE M & NB2 BANDS 1, 2, 3, 4, 5, 8, 12, 13, 18, 19, 20, 25, 26, 28, 66, 71, 85, GNSS, WIFI 4, BLE 5.2, ACC., INT. & EXT. ANT., MINI SIM, 1x RS232, 1x RS485, 3 I/O, I2C, RTC, 1 WIRE, BAT-01	Buy Now
Lantronix Part # F43H50FS	Name FOX4 LTE M1 WW, RS485	FOX4, WW, LTE M & NB2 BANDS 1, 2, 3, 4, 5, 8, 12, 13, 18, 19, 20, 25, 26, 28, 66, 71, 85, WIFI 4, BLE 5.2, GNSS, ACC., INT. & EXT. ANT., MINI SIM, 1x RS232, 1x RS485, 3 I/O, I2C, RTC, 1 WIRE, BAT-01	Buy Now
Lantronix Part # F44H502S	Name FOX4 LTE CAT1 EMEA, 2G Fallback, RS485	FOX4, EMEA, LTE CAT 1 BANDS 1, 3, 7, 8, 20, 28, 3G 1& 8, 2G 3 & 8, GNSS, WIFI 4, BLE 5.2, ACC., INT. & EXT. ANT., MINI SIM, 1x RS232, 1x RS485, 3 I/O, I2C, RTC, 1 WIRE, BAT-01	Contact Us
SOFTWARE ACTIVATED PREMIUM FEATURE
Lantronix Part # 1000000	Name ECO DRIVE	PREMIUM FEATURE 1: ECO DRIVE GPS	Contact Us
Lantronix Part # 1000104	Name LUA	PREMIUM FEATURE 11: LUA	Contact Us
Lantronix Part # 1000002	Name AES 128	PREMIUM FEATURE 2: AES 128	Contact Us
Lantronix Part # 1000003	Name INDEXED HISTORY	PREMIUM FEATURE 3: INDEXED HISTORY	Contact Us
Lantronix Part # 1000005	Name CAN BUS	PREMIUM FEATURE 5: CH/FMS/OBDII	Contact Us
Lantronix Part # 1000008	Name EXTENDED ALARMS	PREMIUM FEATURE 8: EXTENDED ALARMS	Contact Us
Lantronix Part # 1000009	Name EXTENDED GEOFENCE	PREMIUM FEATURE 9: EXTENDED GEOFENCE	Contact Us
CAN and IO extension box
Lantronix Part # 60149	Name CAN and IO extension box	CAN and IO extension box. A high-quality accessory for the FOX3 series with a mini-USB port and a 16pin MOLEX connector with CAN-Bus interface supporting up to 14 additional CAN-IDs and up to 50 variables, D8 interface for digital tachographs with VDO and the Stoneridge formats and 8 x IOs. Requires cable CA38 to interface it with the vehicle’s signals/external system.	Contact Us
Input/Output extension box
Lantronix Part # 60100	Name Input/Output extension box	Input/Output extension box. A high-quality accessory for the FOX3 series with a mini-USB port and a 16pin MOLEX connector with 13 additional IOs. Requires cable CA38 to interface it with the vehicle’s signals/external system.	Contact Us
Service and Power Cable
Lantronix Part # 60044	Name Cable	FOX3 and BOLERO40 service and power cable with 8pin (2×4) Molex connector, car charger, RS-232 female connector, 1.5 m cable length with 2A-fuse.	Contact Us
Cable
Lantronix Part # 60286	Name OBD-II Cable, 1.5m	FOX3 and BOLERO40 power and OBDII connection cable, 1.5 long with 8pin (2×4) connector, OBDII connector and a separate ignition (IGN) wire. This cable is compatible with all OBDII-compliant vehicles. Refer to the Installation Guide for a description of each cable.	Contact Us
Accessories
Lantronix Part # 60395	Name	Blue PUCK MOV IDF25244 (ELA)	Contact Us
Lantronix Part # 60487	Name	MAGNET02 ELA (ACIOM94)	Contact Us
Lantronix Part # 60398	Name BLUE-PUCK-T	BLUE PUCK T, IDF25241B	Contact Us
Lantronix Part # 60374	Name PUCK-HOLDER-STICKER	PUCK Holder Sticker, ACIOM118, mounting PUCKs	Contact Us
Lantronix Part # 60491	Name BLUE-PUCK-RHT	BLUE PUCK RHT, IDF25242	Contact Us
Lantronix Part # 60434	Name BLUE-COIN-ID	BLUE COIN ID, IDF10240	Contact Us
Lantronix Part # 60435	Name BLUE-COIN-MAG	BLUE COIN MAG, IDF10243B	Contact Us
Lantronix Part # 60436	Name BLUE-COIN-MOV	BLUE COIN MOV, IDF10244	Contact Us
Lantronix Part # 60376	Name BLUE-PUCK-ID	BLUE PUCK ID, IDF25240B	Contact Us
Lantronix Part # 60431	Name BLUE-PUCK-MAG	BLUE PUCK MAG, IDF25243B	Contact Us
Compatible Accessories
