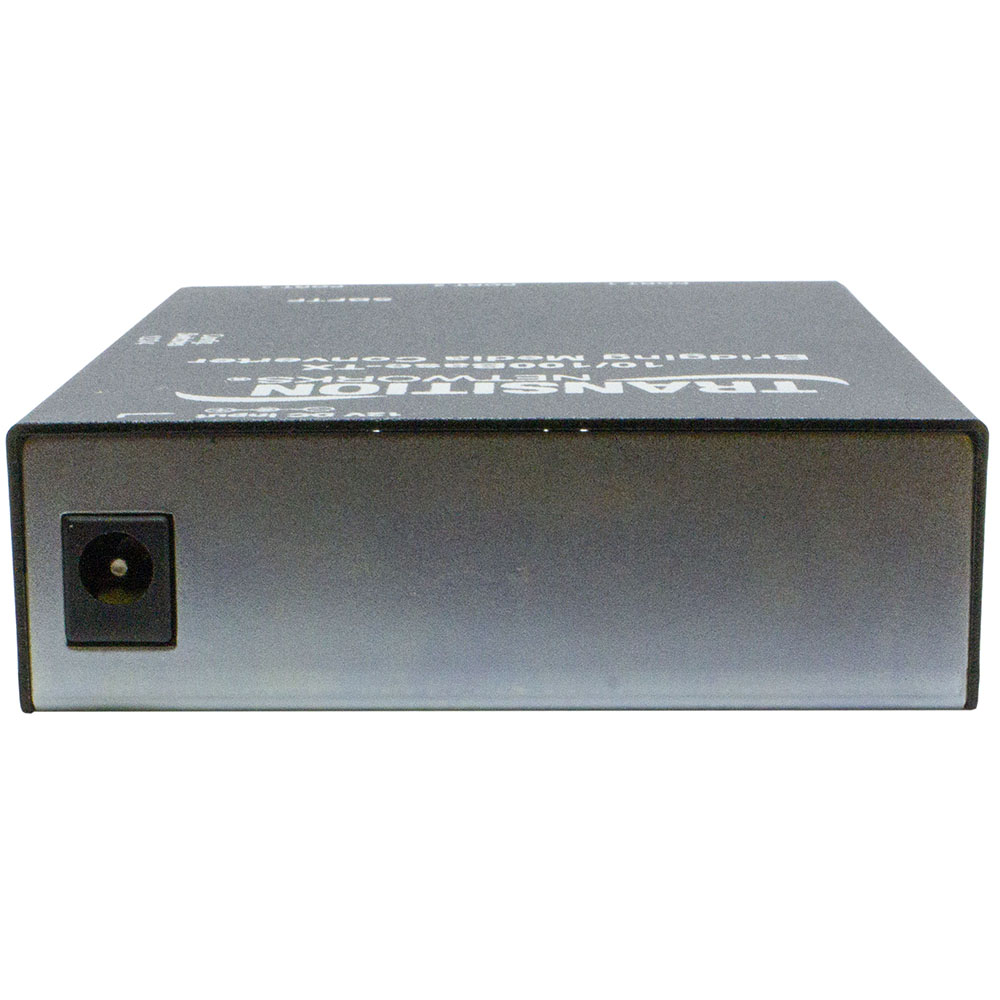

SBFTF1010-130

Stand-alone Fault-Tolerant Redundant Link Protector
10/100Base-TX

The SBFTF1010-130 Redundant Link Protector is a 10/100 Ethernet fault-tolerant transceiver that significantly reduces network down time by adding a new level of redundancy to 10/100 Ethernet connections. The Redundant Transceiver has three ports: one for the critical (main) device, one for the default (primary) path to the critical device, and another (backup) for the backup path. It is a smart device that will not send any signal on a path that is inactive. If the primary path loses its link, then the transceiver will switch to the backup path in approximately 189 milliseconds.

When the primary path re-establishes its link, the Redundant Link Protector will automatically switch back to the primary path. Optional functionality, controlled via a dip switch, allows the unit to move from the fault-tolerant mode to a 3-port switch mode.

NDAA CompliantTAA Compliant

SBFTF1010-130 Overview

Features

  • Fault-tolerant redundant connections
  • Easy to install and use
  • Supports half and full-duplex transmission
  • Auto-MDI/MDIX
  • Auto-Negotiation
  • IEEE 802.3 compliant
  • 9 diagnostic LEDs
  • Optional 3-port switch mode

SBFTF1010-130 Tech Specs

Standards

  • IEEE 802.3

Connectors

  • Type: 8-position, RJ-45 receptacle:
  • 1: TX+5: NC (no connection)
  • 2: TX-6: RX-
  • 3: RX+7: NC (no connection)
  • 4: NC (no connection)
  • 8: NC (no connection)

Data Rate

  • 10/100 Mbps

Dip Switch

  • SW1 (TP): Auto-Negotiation enable/disable
  • SW2 (TP): 10Mbps or 100 Mbps
  • SW3 (Fiber): Half or Full-duplex
  • SW4: Redundancy/Switch

System LEDs

  • Power (PWR): Indicates the presence of POWER
  • Primary (PRI): Indicates a link is established on the Primary port
  • Backup (BKP): Indicates the link has moved over to the Backup port

Port LEDs

  • Lower Right:
  • Green indicates 100 Mbps;
  • Orange indicates 10 Mbps;
  • Flashing indicates Activity
  • Lower Left:
  • Green indicates full-duplex; Off half-duplex

Dimensions

  • Width: 3.25” [82.55 mm]
  • Depth: 4.8” [121.92 mm]
  • Height: 1″ [25 mm]

Power Consumption

  • 2.4 Watts

Power Input

  • 120 VAC @ 60 Hz. (Domestic)
  • 100 – 240 VAC @ 50 Hz. (International)

Power Output

  • 12 VDC, 0.5 Amp (Domestic)
  • 12 VDC, 1.25 Amp (International)

Environment

  • Operating: 0°C to 50°C
  • Storage: -15°C to 65°C
  • Humidity: 5% to 95% (non-condensing)
  • Altitude: 0 – 10,000 ft.

Weight

  • 2 lbs. [0.90 kg]

Certifications

  • Safety: Wall Mount Power Supply: UL Listed & CSA certified; FCC Class A, EN55024, EN61000, CE Mark

Warranty

  • Lifetime

SBFTF1010-130 Downloads

Additional Product Information

Note: Some Documentation may have Transition Networks named or pictured. Transition Networks was acquired by Lantronix in August 2021. Learn more about the acquisition here.

Visio Stencils

Plan your network with Microsoft Visio Stencils. You must log in or create a MyLantronix account to access Visio Stencils.

Lantronix Part # Name Description Order Now
Sorry, no parts were found that match that search query.
Lantronix Part #
SBFTF1010-130
Name
SBFTF1010-130

10/100Base-TX Link Protector Transceiver (3) 10/100Base-TX (RJ-45) [100 m/328 ft.]
