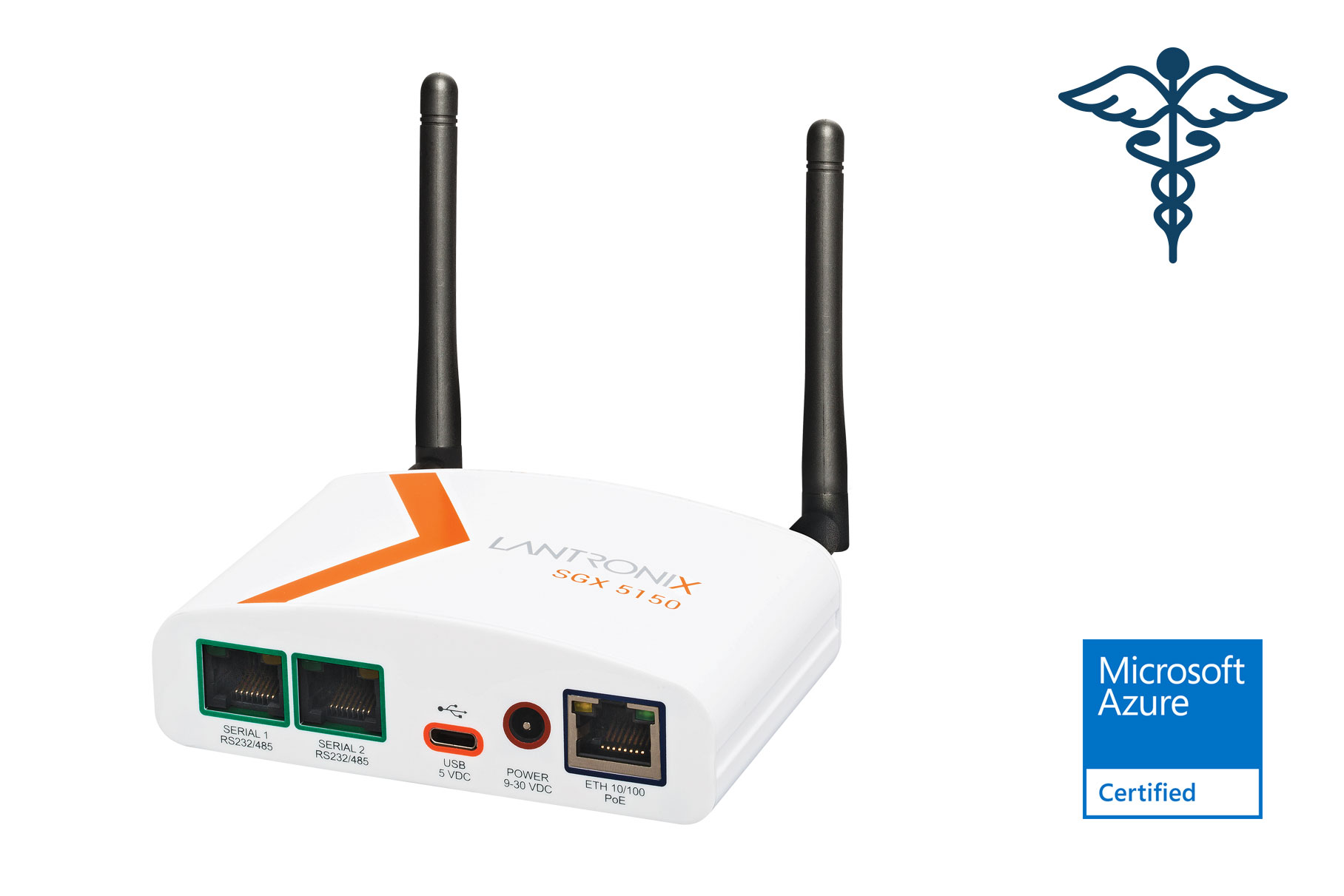

SGX 5150-MD

Highly versatile, secure, and IEC-60601 certified wireless IoT gateway for medical devices.

Easily configure and connect to the enterprise network, out-of-the-box
Unique Device ID feature allows you to make your device visible to authorized users
Linux SDK and Python runtime services allow quick development and deployment of custom apps
Experience the Lantronix industrial design quality and reliability
Wi-Fi^® Alliance and USB Certification
IEC-60601 certified

SGX 5150-MD Overview

Optimize your healthcare operation with our highly versatile, secure, and IEC-60601 certified Lantronix® SGX 5150 MD Wireless IoT Gateway for Medical Devices. Its advanced turnkey design provides everything you need to benefit from tracking hospital assets to managing critical patient data.

Improve Patient Care

The SGX 5150 MD enables healthcare professionals to access and monitor patients’ health status in real-time. With accurate and on-demand insight into
a patient’s health status, doctors and nurses can deliver more personalized treatments and improve their patients’ quality of life.

Strong Security with InfiniShield™ Technology

The SGX 5150 MD platform was designed to support critical assets and protect your operation from unauthorized access, giving you peace of mind
that your data always remains secure. The SGX 5150 MD is also protected from unauthorized configuration with Secure boot support.

Lower Operational Costs

The SGX 5150 MD facilitates the delivery of data to your private or public cloud infrastructure and mobile app so that you can track your organization’s assets at all times. This increase in asset visibility substantially lowers the cost and likelihood of losing expensive medical devices.

Past. Present. Future—All Covered

The SGX 5150 MD offers a future-proof path for connectivity to any medical device. It provides multiple interface options to connect to virtually any medical asset. The SGX 5150 MD supports legacy serial interfaces with a single or dual RS-232 ports, USB 2.0 with host and device modes and Ethernet interfaces.

High-Performance Wireless Connectivity

The SGX 5150 MD offers Bluetooth® and Wi-Fi® connectivity. It is equipped with industry-leading high-performance 5GHz (802.11ac) Wi-Fi, offering
reliable, persistent wireless connections and bandwidth for high-speed data processing.

SGX 5150-MD Tech Specs

Wireless Specifications

5G Wi-Fi (IEEE 802.11ac)

1×1 ac (MCS0 – MCS9)
20, 40 and 80 MHz Channels with optional SGI

IEEE 802.11 n

1×1 n (MCS0 – MCS7)
20 MHz and 40 MHz channel width with optional SGI

Advanced 802.11 n/ac Features

Transit Beamforming
Tx/Rx Low Density Parity Check (LDPC)
Rx Space Time Block Coding (STBC)

Bluetooth and WLAN Coexistence
Compatible with IEEE 802.11 a/b/g and Supports IEEE 802.11 d/h/j/i
Dual band 2.4 GHz and 5 GHzM

2.412 GHz – 2.484 GHz – Channels 1 – 14
U-NII-1 (5.15 – 5.25 GHz) Channels 36, 40, 44, 48
U-NII-2 (5.25 – 5.35 GHz) Channels 52, 56, 60, 64
U-NII-2e (5.47 – 5.725 GHz) Channels 100 – 140
U-NII-3 (5.725 – 5.825 GHz) Channels 149 – 165

Ethernet Specifications

IEEE 802.3 MAC and PHY, 10BaseT and 100BaseT
Auto-Negotiation/Auto MDIX, Full-duplex and Half-duplex

USB Specifications

Configurable Host/Device USB 2.0 HS/FS port with USB type C connector
USB configurable host can provide VBUS 5V 0.5A

Physical Interface

(1 or 2) RJ-45 RS232 Serial Ports, with Baud rate up to 921 Kbps
15 KV ESD Protection
(1) USB port – Type C Host / Device Connector
(1) RJ-45 Ethernet port, 10/100Mbps, 1.5 KV Surge Isolation
(1) Reset-to-default Button
(1) WPS Button
(1) Barrel jack for 12 VDC power input

LED Indicators

System Status LED
WLAN Status LED
Wi-Fi Receive Signal Strength Indicator LEDs
Ethernet Link/Activity LEDs (on RJ45)
Serial Port TX/RX LEDs (on RJ45)

Protocols

DHCP Client, DHCP Server, DHCPv6 Client
uPnP (Discovery), LCAP (77FE), Telnet, (S)FTP, HTTP(S)
IPv4/IPv6, TCP, UDP, ICMP, ARP, Auto-IP, DNS, SNMP v2/v3

InfiniShield ™ Security

FIPS 140-2 Level 1 Certification*
WLAN Security
AES/CCMP and TKIP encryption, 802.11i
WPA/WPA2 Pre-Shared Key (PSK) or IEEE 802.1X, AES-CCMP

Enterprise Security (WPA2-Enterprise)

EAP-TLS
EAP-TTLS (MS-CHAPv2)
EAP-PEAPv0/EAP-MS-CHAP v2)
EAP-PEAPv1
EAP-FAST
IPSec

Firmware Authentication and Secure Data Storage

ECDSA 256-bit verification

Management Interfaces

DeviceInstaller™ utility
Web Manager (HTML5 Browser HTTP/HTTPS)
CLI (over serial ports, telnet or SSH)
OTA Field upgradeable
Supports SNMP v2, V3
XML Configuration records via
CLI or FTP

Wireless Features

Soft Access Point
Wi-Fi Direct
Multiple Soft AP Connections
Simultaneous Soft AP and Client mode
Secure Com Port Redirector™ software

Environmental

Operating Temp: 0oC to +45oC (32oF to 113oF)
Extended Storage Temp: -40° to 85° C
(-40° to 185° F)
IP Rating: 20
Relative Humidity: 5 to 95%, Non-condensing
ESD tolerance: Contact Discharge= 4KV; Air Discharge=15KV

Power

Input: DC barrel, 12 VDC from Medical Power Supply shipped with unit
Power Consumption = 1.9W typical without USB Load
Power Consumption = 5.5W max with

USB Load

Output: 5V / 500 mA via USB Type C connector (in Host mode) when used
with the medical power supply provided

Certifications

FCC, IC, EU RED, UL/CE, 60601-1, 60601-1-2 4th Edition.
For a complete list of compliance details, refer to the SGX 5150 User Guide

Physical Dimensions

Dimensions: 10.8 cm (4.3 in) x 7.2 cm (2.8 in) x 3.3 cm (1.3 in)
Weight: 0.35 kg (0.77 lb)

Warranty

Industry-leading 5-Year Limited Warranty
