Bluetooth Low Energy KIT

Bluetooth Low Energy (BLE) demo KIT

Fully pre-configured cellular & Bluetooth LE starter kit for rapid P.O.C.

Bluetooth Low Energy demo KIT

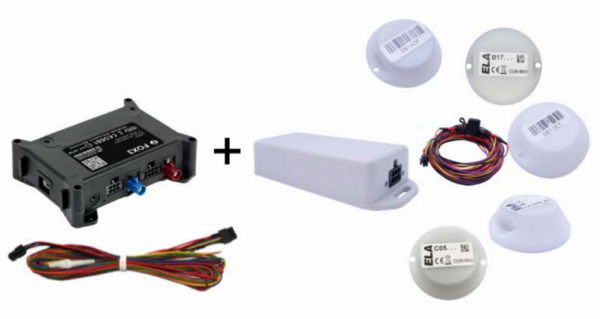

Lantronix gateway and BLE sensor development kit is a combination of sensors, gateway, connectivity to get you started with your BLE development or proof of concept before buying or developing an entire system. Working with the FOX3 telematics gateway or SGX 5150 IoT Gateway and a set of BLE tags, this BLE development kit is specifically designed for Real-time Location System and environment monitoring. The pre-configured cellular FOX3 or SGX5150 with a set of BLE Tags capture sensor data such as the presence, identification, temperature, humidity and location of assets, people or vehicles.



  • Temperature sensors
  • Humidity sensors
  • Open/closed sensor
  • ID tag x 2

Controller and communications:

  • Pre-configured FOX3-3G or SGX 5150
  • Cellular connectivity (from 1 to 1,024 Mbytes)
  • Online platform for data monitoring and alerts
  • VPN server (optional)

Bluetooth Low Energy KIT

Related Products

Bluetooth Low Energy KIT Overview


BLUE LITE ID – Bluetooth Low Energy Beacon

  • Receiving range: Up to 300 meters
  • High autonomy : up to 5 years
  • Operating temp.: -30°C to +70°C
  • Size: 45mm length, 23.2mm width, 5.3mm height
  • Pick to light : integrated high power LED



BLUE PUCK MAG – Bluetooth Low Energy Magnetic Sensor

  • Receiving range: up to 500 meters
  • Very high autonomy : up to 14.5 years
  • Robust IP68 industrial casing
  • Operating temp.: -40°C to +85°C
  • Size: diameter 57mm – thickness 20mm
  • Smart & secure programming by NFC

BLUE PUCK RHT – Bluetooth Low Energy Humidity & Temperature Sensor

  • Receiving range: Up to 500 meters
  • Very high autonomy : up to 18 years
  • Operating temp.: -40°C to +85°C
  • Size: 57 mm base – Height 20 mm
  • Waterproof (IP65)

BLUE PUCK T – Bluetooth Low Energy Temperature Sensor

  • Receiving range: up to 500 meters
  • Very high autonomy : up to 20 years
  • Robust IP68 industrial casing
  • Operating temp.: -40°C to +85°C
  • Size: diameter 57mm – thickness 20mm
  • Smart & secure programming by NFC

BLUE PUCK T-PROBE – Bluetooth Low Energy Temperature Sensor

  • Receiving range: up to 500 meters
  • Very high autonomy : up to 15 years
  • Robust IP68 industrial casing
  • Operating temp.:
    • PUCK housing : -40°C to +85°C
    • Probe : -80°C – +200°C
  • Size
    • PUCK housing : 57 mm base – height 20 mm
    • Probe : 3 mm – Length 28 mm – M8
    • Cable : 1 m
  • Approved EN12830 v2018





FOX3 Cellular Gateway

  • Cellular gateway
  • Global 3G connectivity
  • Pre-configured to read RFID tag and report data to D2Sphere
  • Internal or external antenna
  • Multi-constellation GNSS technology
 SGX 5150 left view



SGX 5150 IoT Device Gateway

  • Wi-Fi® Alliance and USB Certification
  • High Performance Wi-Fi®
  • Enterprise Class Security
  • Multi-Interface Access

Bluetooth Low Energy KIT Resources

Application Spotlights
Videos
Press Releases
Case Studies

Bluetooth Low Energy KIT Part Numbers



Accessories
60395

Blue PUCK MOV IDF25244 (ELA)
60487

MAGNET02 ELA (ACIOM94)
60398 BLUE-PUCK-T

BLUE PUCK T, IDF25241B
60374 PUCK-HOLDER-STICKER

PUCK Holder Sticker, ACIOM118, mounting PUCKs
60491 BLUE-PUCK-RHT

BLUE PUCK RHT, IDF25242
60434 BLUE-COIN-ID

BLUE COIN ID, IDF10240
60435 BLUE-COIN-MAG

BLUE COIN MAG, IDF10243B
60436 BLUE-COIN-MOV

BLUE COIN MOV, IDF10244
60376 BLUE-PUCK-ID

BLUE PUCK ID, IDF25240B
60431 BLUE-PUCK-MAG

BLUE PUCK MAG, IDF25243B
ACC-220-1774-00 THINLINE IR

THINLINE IR, IDP0231
Lantronix Part # Name Description Order Now

Compatible Accessories

Lantronix Part # Legacy Part # Name Description Order Now
F38H002S 60192 FOX3 FOX3 is a compact, all-in-one cellular telematics gateway combining a rich connectivity choice with our powerful Edge intelligence.
