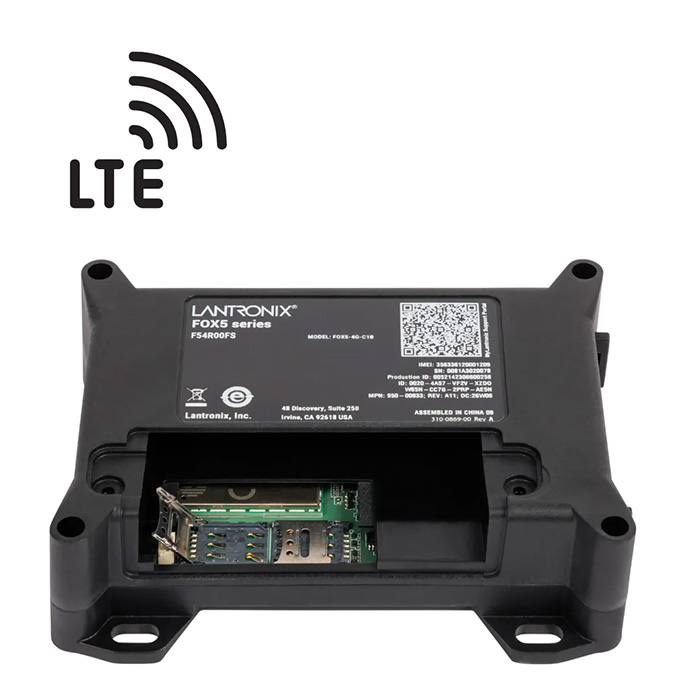

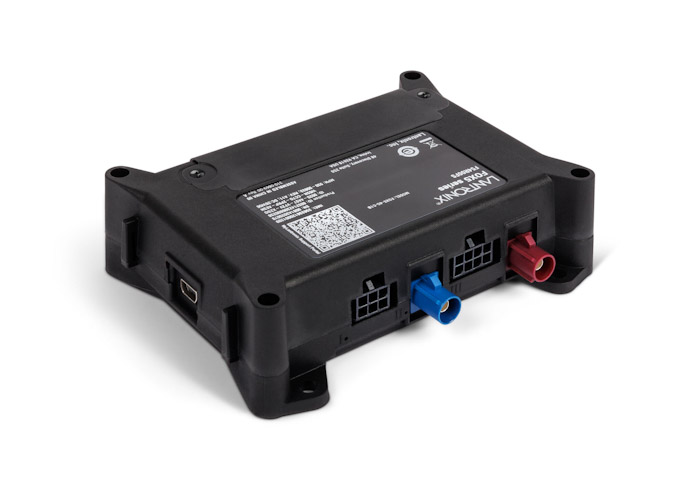

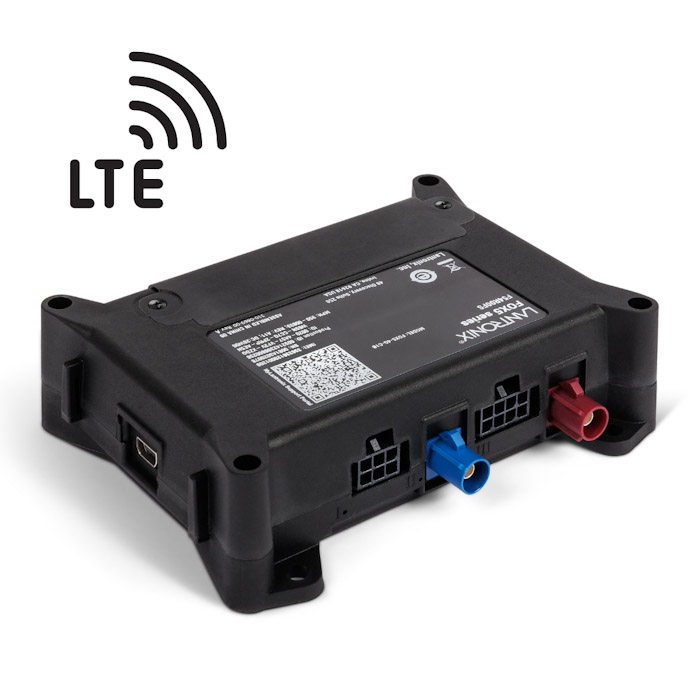

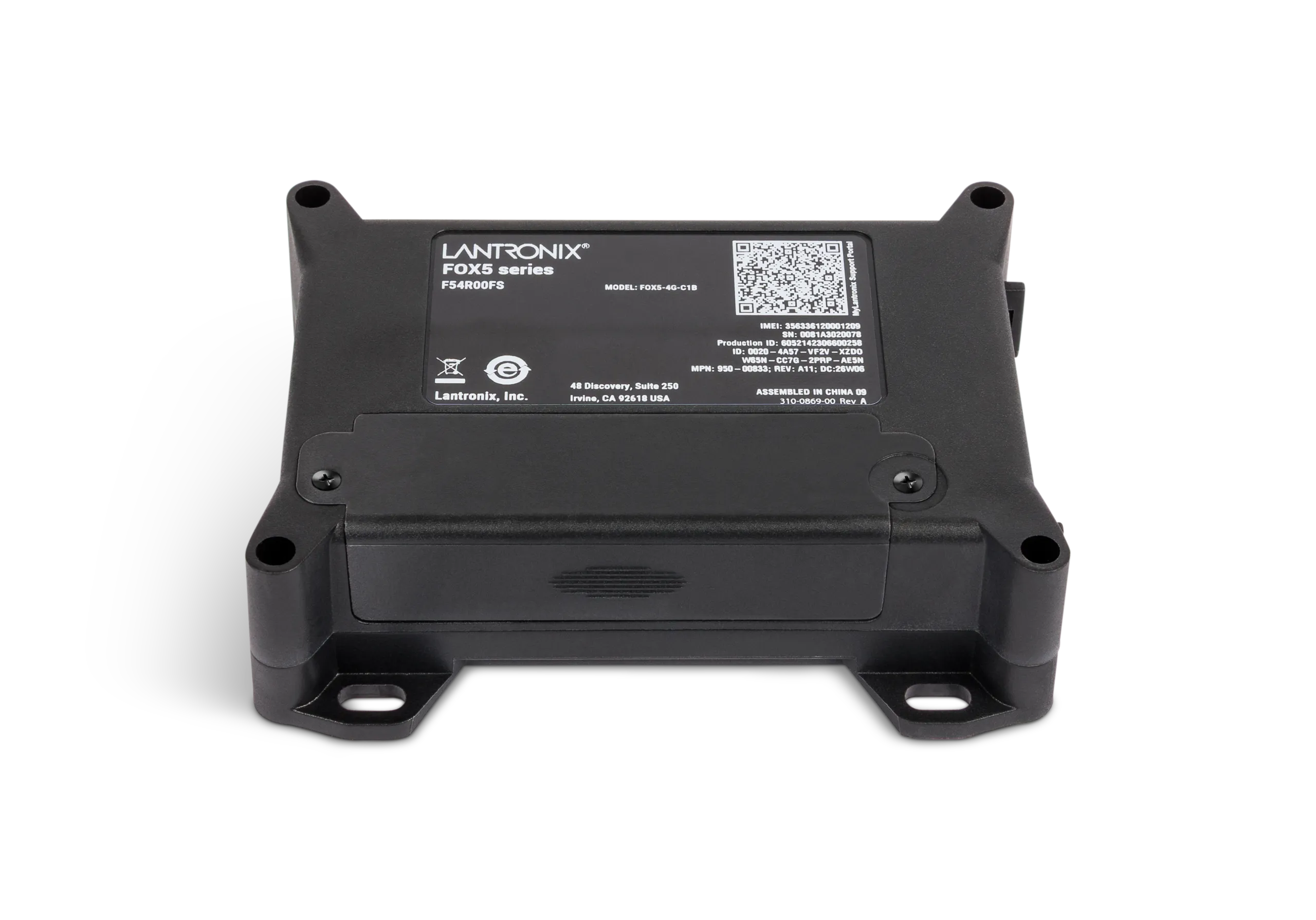

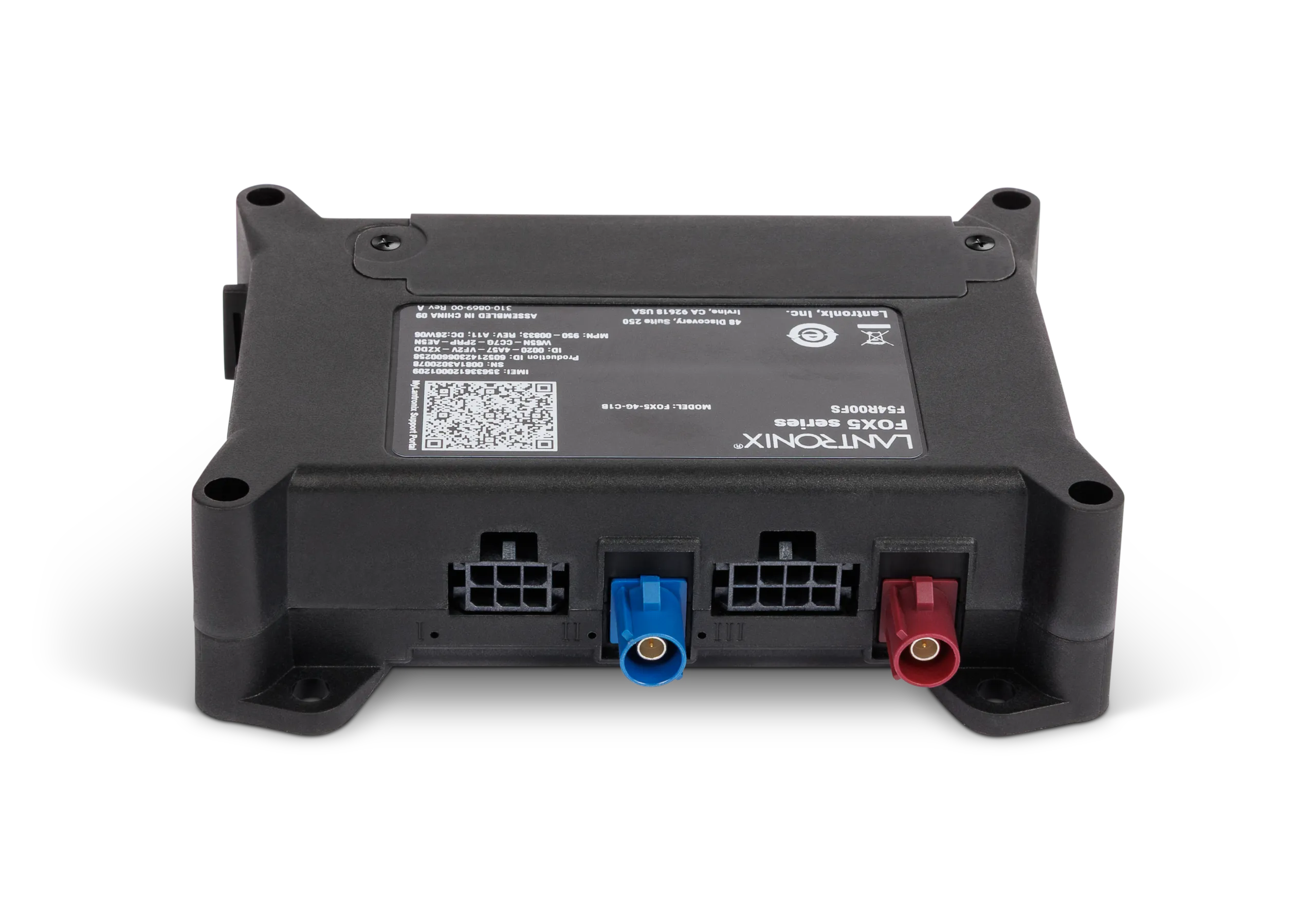

New

FOX 5

Edge-to-Cloud Made Simple

FOX5 unlocks visibility and control for distributed assets once constrained by cost and integration hurdles, seamlessly transforming data from generators, HVAC systems, fuel tanks, air compressors, and vehicles into actionable insights that drive smarter decisions.

Product Brief Learn More about Percepxion!

Key Differentiators

Global Connectivity

Stay connected anywhere in the world with 4G LTE Cat 1 bis technology. Advanced GNSS with dead reckoning maintains accurate location data through tunnels, parking garages, and urban canyons.

Edge Intelligence

Run complex logic directly on FOX5 using PFAL and Lua scripting. Process and filter data at the edge to cut cellular and cloud costs

Enterprise-grade Security

Secure element provides hardware root of trust to validate device integrity. TLS 1.3 and MQTTS ensures end-to-end data encryption.” to “Secure element provides hardware root of trust to validate device integrity. TLS 1.3 and MQTTS ensures end-to-end data encryption. NDAA compliant, ready for federal, utility, and critical infrastructure procurements.

Connect Any Serial Asset

Connect industrial assets via Modbus, RS-485, RS-232, and 1-Wire. Access vehicle data with CAN bus, OBDII, and J1939 or connect sensors using BLE 5.4.

Overview

Speaks OT. Delivers IT.

FOX5 delivers the lowest total cost of ownership for critical asset monitoring and vehicle telematics by bringing intelligence, automation, and hardened security to the edge. It speaks operational protocols your assets use and converts the data into trusted, AI-ready insights for your business. With Lantronix Percepxion, FOX5 scales effortlessly from a single site to a global deployment.

Multi-brand Generator Monitoring
A North American mobile network operator needed to monitor environmental conditions and power systems across thousands of remote cell tower sites. Traditional cloud-based solutions created security risks, high bandwidth costs, and delayed response to critical failures.

SOLUTION FEATURES

Secure Scalability

Zero-touch provisioning, centralized fleet management, and cellular at scale come standard. The ten-thousandth device deploys as straightforwardly and securely as the first.

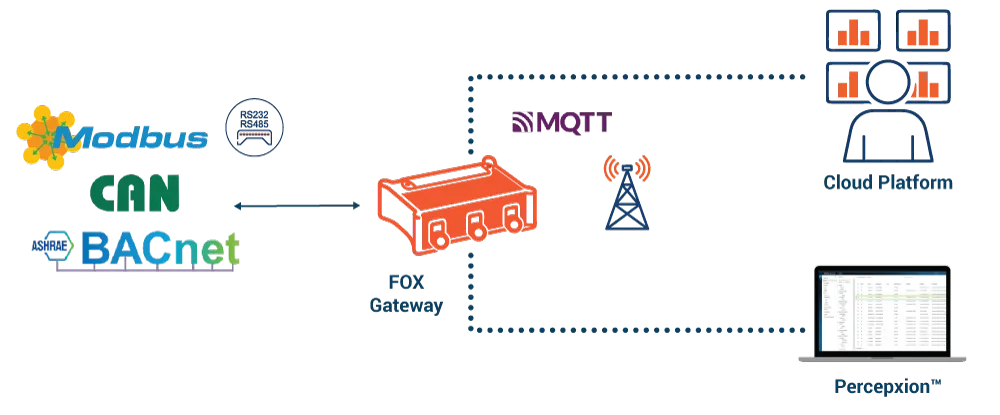

Asset to Cloud Integration

FOX5’s native fieldbus, vehicle bus, and hardware interfaces feed onboard processing, with LTE cellular and MQTT delivering refined data straight to the cloud.

Enhanced Security

Secure boot and TLS 1.3 to protect critical vehicle and telemetry data.

Lowest TCO

Local filtering, data normalization, and processing slash cellular and cloud costs while maintaining data integrity. Pay less per asset.

Percepxion Platform

Deploy and Manage at Scale

Percepxion turns large-scale FOX5 rollouts into a single workflow with zero-touch provisioning and centralized fleet management. Onboard thousands of devices, then monitor, configure, and control them all from one unified platform. Faster deployment, simpler operations, and a clear path to scale across every site.

Demo Today Explore Percepxion

Focus Applications

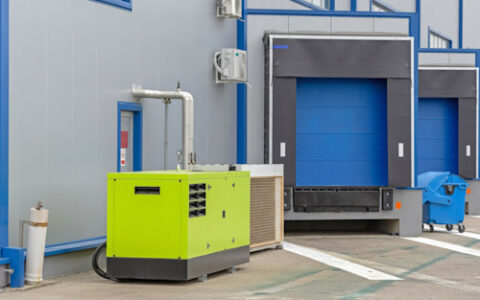

Critical Asset Monitoring

Catch problems before they become outages. FOX5 turns fixed-site generators, HVAC plants, fuel tanks, and boilers into real-time data sources over their existing BACnet and Modbus connections, so facility teams act on early warnings instead of dispatching emergency trucks.

Learn More

Vehicle Telematics

Cut fuel waste and prove every trip happened the way it was supposed to. FOX5 reads engine and chassis data from any commercial vehicle, pairs it with continuous GNSS positioning, and powers fleet, cold chain, and EV operations.

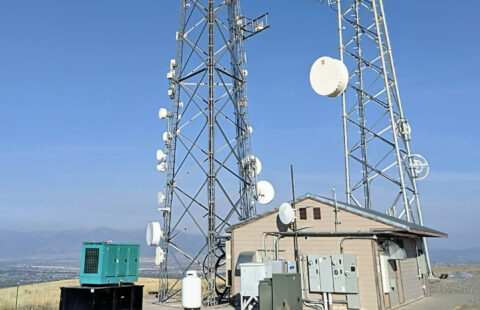

Cell Site Monitoring

Protect uptime SLAs and cut unnecessary truck rolls across thousands of sites. FOX5 monitors backup generators, battery plants, shelter HVAC, and other equipment over the protocols already on site, sending continuous status and alerts over cellular straight to network operations.

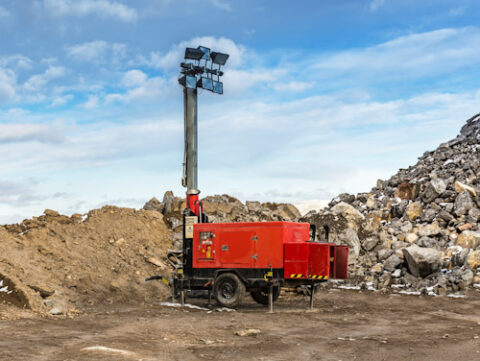

Equipment Rental & Mobile Assets

Know where your fleet is, how it’s being used, and when it needs service. FOX5 travels with generators, pumps, compressors, and heavy equipment across job sites, capturing location, runtime, and operating data that drives smarter dispatch and faster turnarounds.

Specifications by Part

	F54R000S	F54R00FS
Cellular
Cellular technology	4G LTE Cat 1 bis	4G LTE Cat 1 bis
Cellular band support	B2,4,5,12,13,14,66	B1,2,3,4,5,7,8,12,13,18,19,20, 25,26,28,66,34,38,39,40,41
Cellular Certifications	FCC, IC, PTCRB, AT&T, UL, AT&T FirstNet	CE, UKCA, PSTI, CB, E-Mark, Telec

All Specifications

Multi-Channel GNSS
- Dead Reckoning
  - Yes
- A-GPS (online/offline/autonomous)
  - Yes
GPS & GLONASS
- Accuracy
  - GPS: 1.5m
- Acquisition / Sensitivity
  - Cold Start: <32s
  - Tracking: -162dBm
  - Sensitivity: -145 dBm
- GPS Operational Limits
  - Velocity: 515 m/s
  - Altitude: 18,000 m
  - Update Rate: 10 Hz
Power Consumption
- Antennas
  - Internal & External w/ automatic/manual switch
- Input Power
  - +10.8 V – 60 V DC
- Battery
  - Internal 1000 mAh rechargeable battery
- Normal Operation
  - 60 mA @ 12 VDC
- Sleep Mode
  - <2.2 mA @ 12 VDC
Environmental Data
- Operating Temperature
  - -30°C to +85°C
- Storage Temperature
  - -30°C to +85°C
- Cellular Temperature
  - -30°C to +85°C
- Battery Discharging Temperature
  - -20°C to +60°C
- Charging Temperature
  - 0°C to +45°C
Interfaces
- Configurable Digital/ Analog I/O
  - 3
- Pre-defined Digital Input
  - 1 (Ignition)
- Programmable LEDs
  - 3
- Serial Ports
  - 1x RS-485 & 1x RS-232 or 2x RS-232
- 1-Wire
  - 1
- CAN-bus
  - 1
- USB 2.0
  - 1
- 10-pin Mini-USB
  - Yes, for IOBOX accessories
Sensor
- Accelerometer
  - Yes
- 3DG
  - ± 8g (programmable)

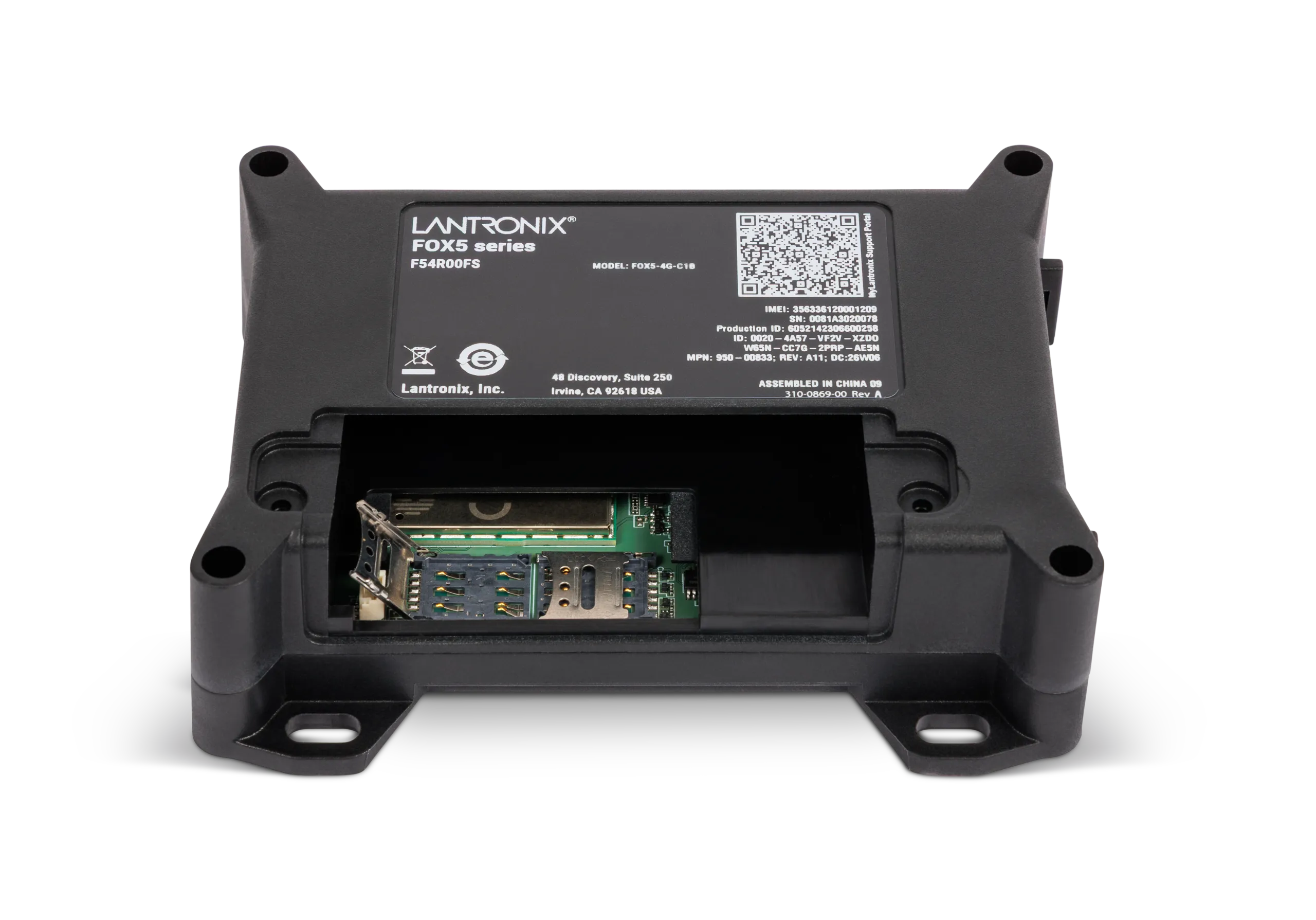

- SIM Card
  - 2x Nano-SIM Holder
Security
- Cryptographic co-processor
  - Yes
- Secure Boot
  - Yes
- Bluetooth
  - BLE 5.4
System Feature
- RAM / Flash
  - 32 MB / 64 MB
- Real-time Clock
  - Yes
- Edge Programming
  - LUA Scripts & PFAL Programming Language
Protocols
- Modbus
  - Yes
- CAN
  - Yes
- 1-Wire
  - Yes
- J1939
  - Yes
- MQTT
  - Yes
- TCP/UDP
  - Yes
- HTTP
  - Yes
- SMTP
  - Yes
Software Features
- Programmable Geofences
  - 3000
- Programmable Waypoints
  - 2000
- Programmable Alarms
  - 200
- Device Management
  - Lantronix Percepxion™

Resources

Product Brief

No matches were found for that search.

FOX5 Vehicle Telematics Product Brief

626 KB

View

FOX5 Vehicle Telematics Product Brief (A4)

626 KB

View

FOX5 Critical Assets Product Brief

598 KB

View

FOX5 Critical Assets Product Brief (A4)

598 KB

View

Firmware

No matches were found for that search.

Keep your products up to date by downloading the latest firmware. You must log in or create a MyLantronix account to download firmware.

FOX5 Series Firmware

Log in to view

Part Numbers

Filter by type:

MODELS
Part Number	Name	Description
F54R000S	North America	4G Cat1bis: B2,4,5,12,13,14,66; Positioning: GNSS with Dead Reckoning & Accelerometer Antenna: Internal & External Interfaces: 1x RS-232, 1x RS-485 or 2 x RS-232, 3x I/O, I2C, RTC, 1-Wire, CANbus Battery: Yes BLE 5.4	Contact Us
F54R00FS	Worldwide	4G Cat1bis: B1,2,3,4,5,7,8,12,13,18,19,20, 25,26,28,66,34,38,39,40,41; Positioning: GNSS with Dead Reckoning & Accelerometer Antenna: Internal & External Interfaces: 1x RS-232, 1x RS-485 or 2 x RS-232, 3x I/O, I2C, RTC, 1-Wire, CANbus Battery: Yes BLE: 5.4	Contact Us

What’s In The Box (5)

FOX 5

Battery

SIM holder cover

Battery cover & screws

Welcome Card

All your assets. One device.

Bring every generator, fuel tank, critical asset or vehicle onto a single secure platform with FOX5 and Percepxion. Talk with our IoT solution experts to design a deployment that delivers the lowest total cost of ownership at any scale.
