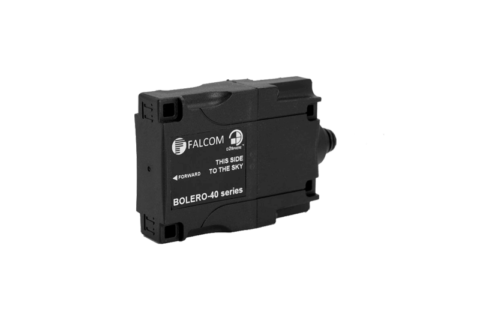

BOLERO40 Series
New

IP68-rated advanced telematics device with GNSS

Available in Cat M1 LTE with 2G fallback, the BOLERO40 series of advanced telematics devices with GNSS matches the asset tracking market’s environmental, mechanical and electrical requirements. Designed on the robust Lantronix FOX platform, Bolero 40 takes the best features of its predecessor, shrinks it down, and adds groundbreaking enhancements to deliver unparalleled performance in a compact, portable, and waterproof design.

Product Highlights

  • IP 68 Waterproof Dust proof
  • Dual SIM
  • Powerful scripting language
  • “Indestructible” power selection



NDAA Compliant

BOLERO40 Series Overview



IP68 casing

The BOLERO40 Series supports wide temperature range which makes it a perfect tracking device for challenging environmental situations.
It is delivered with an IP68 casing: waterproof, immersion up to 1.2m during 60min, and completely rustproof, it is the perfect tracking device for extreme conditions and activities.

Improve Efficiency with Smart Remote Management

Lantronix’s advanced telematics operating system offers flexibility for any application. Remote monitoring via ConsoleFlow allows real-time vehicle environment tracking, analysis, and in-depth reporting

Save Money and Ensure the Highest Coverage Available with Dual SIM Function

Hosts two Mini SIMs (aka 2FF) and switches between carriers to ensure continuous nationwide/cross-border coverage across two services, effectively reducing mobile
roaming charges.

Resilient Power Supply

The Bolero telematics device is equipped with a robust and resilient power supply designed to withstand the most challenging environments. Its rugged power supply ensures continuous and reliable operation even in rough terrains, extreme weather conditions, and fluctuating power scenarios.

Ignition sensing and Tow alert

The BOLERO40 Series offers a lot of features in order to let you have the most useful experience possible. For instance, it has the ability to detect the ignition and extinction on your engine.

BOLERO40 Series Tech Specs

  • Hardware

    • Casing: Non-flammable fibreglass-reinforced IP68-certified casing
    • Dimensions: 70 x 52.5 x 20.6 mm without connection cable
    • Weight: Approx. 118 g
    • Wire harness: 1 m with a (2x4) connector at cable’s end
    • Temperature range: Battery discharging temp.: -10°C ~ +60°C Battery charging: 0°C ~ +45°C
    • SDRAM: 16 Mbit

  • Tracking

    • GNSS: 72-channel GNSS engine GPS/QZSS, GLONASS, Galileo, BeiDou SBAS: WAAS, EGNOS, MSAS
    • A-GNSS: AssistNow Online / offline / autonomos
    • Protocols: NMEA, PFAL (binary)
    • Accuracy: Position: 2.5 m (GPS) / 4.0 m (GLONASS)
    • Acquisition: Cold Start: 30 s (GPS) / 33 s (GLONASS) Tracking: 164 dBm (GPS) / -163 dBm (GLONASS)
    • Sensitivity: Cold start:-147 dBm (GPS)/-145 dBm (GLONASS)
    • Limits: Velocity: 500 m/s (972 knots) Altitude: 50,000 m Update rate: 1 Hz

  • Mounting

    • Mounting types
      • Double-sided adhesive pad (not included)
      • Cable ties (not included)

  • Interfaces

    • SIM interface: 2FF SIM 1.8 V / 3.0 V x 2 or factory-fitted MFF SIM x 2
    • Cellular and GNSS antennas: Internal
    • Internet: TCP / UDP / SMTP / HTTP
    • RS-232: V.24 level on 2 wires
    • I/Os: Two ‘versatile’, i.e. user-configurable as analogue/ digital input or digital output and Ignition sensing
    • Analogue input Digital output Digital input: Max. 32 VDC Open collector; 100 mA max.; 32 V dc max. 0 - 32 Vdc; User-programmed high and low thresholds
    • 1-wire interface: 3.3 VDC for temperature sensor or iButton driver ID
    • Accelerometer: Built in, ± 8g triple-axis (moving, standing, harsh bracking and acceleration, tilt detection)
    • LEDs: User-configurable (e.g. Cellular, GNSS, Power ... etc.)
    • Cloud Services: Lantronix ConsoleFlow™ platform

  • Power

    • Main source: 10.8 VDC ~ 48.0 VDC
    • Alternate source: Li-ion 3.15 Wh backup battery

  • Firmware Features

    • Embedded TCP/IP stack for client-server application
    • Support SMS/USSD/TCP/IP/UDP/SMTP/HTTP
    • Lantronix protocols: IOP, GSM, AREA, 3DP, BIN
    • 40 programmable Timers, Triggers, Counters
    • 3000 built-in geofences and 2000 waypoints (rectangular/circular)
    • Support primary and backup servers
    • GSM/GSM jamming detections
    • Multi power-saving modes and wake-up conditions
    • Intelligent and flexible configuration settings
    • Alert notification rules based on combined events/states
    • Drivers Logbook / History / Trip management
    • Driver behavior evaluation
    • 2 x APN settings for home and roaming
    • Lantronix PREMIUM features supported
    • Local and OTA firmware update
    • Local and OTA device configuration

BOLERO40 Series Downloads

Application Notes
CAN Applications with AVL Devices
641 KB
View
Transform History Binary Data in NMEA Format for AVL Devices and STEPPII, MAMBO/2
643 KB
View
In-Vehicle Installation Guidelines for FOX3-2G/3G/4G and BOLERO40 Series
876 KB
View
CANopen Gateway Functions for AVL Devices
215 KB
View
CAN Applications with AVL Devices
641 KB
View
Using Lua Scripts for FOX3-2G/3G/4G and BOLERO40 Series
460 KB
View
Activation of Premium-Features for FOX3-2G/3G/4G and BOLERO40 Series
326 KB
View
Getting Started with 1-Wire Devices
727 KB
View
Eco-Drive-GPS Premium-Features in AVL Firmware 2.11.0 and Above Part Number
960 KB
View
ADVANCED ENCRYPTION STANDARD (AES_TCP) PREMIUM FEATURE in AVL firmware 2.10.0 and above
404 KB
View
Use of I/OS on AVL Devices
329 KB
View
INDEX HISTORY PREMIUM-FEATURE in AVL firmware 2.10.0 and above
340 KB
View
Firmware WebUpdate for FALCOM AVL devices
368 KB
View
Certificates
Certificate of Compliance: RoHS and REACH FM-418 A LMS
116 KB
View
Product Brief
BOLERO40 Series Product Brief (A4)
408 KB
View
BOLERO40 Series Product Brief
409 KB
View
AVL Firmware & Hardware PREMIUM-FEATURES Product Brief
4 MB
View
AVL Firmware & Hardware PREMIUM-FEATURES Product Brief (A4)
4 MB
View
User Guides
BOLERO40 Series Hardware Manual
2 MB
View
BOLERO40 Series Promotion Kit User Guide
708 KB
View
PFAL Command Reference
7 MB
View
Firmware Downloads

Keep your products up to date by downloading the latest firmware. You must log in or create a MyLantronix account to download firmware.

Product Notifications

You must log in or create a MyLantronix account to view product change notifications.

BOLERO40 Series Part Numbers

Lantronix Part # Name Description Order Now
Sorry, no parts were found that match that search query.
TRACKER
Lantronix Part #
B41H00FS
Name
BOLERO

(Device Only) Tracker BOLERO41 - Wordlwide - 2G band 5/8/3/2 - IP 68 – GNSS - Li.Ion battery backup - RS232 2 wires - 2 I/O - 1 Wire interface - AVL Software

 Contact Us
Lantronix Part #
B43H002S
Name
BOLERO

(Device Only) Tracker BOLERO43 - EMEA - LTE CatM1 band 20, 8, 3, 7- 2G FB band 8, 3 - IP 68 – GNSS - Li.Ion battery backup - RS232 2 wires - 2 I/O - 1 Wire interface - AVL Software

 Contact Us
Lantronix Part #
B43H001S
Name
BOLERO

(Device Only) Tracker BOLERO43 - NA-LTE CatM1 band 13-IP 68, GNSS - Li.Ion battery backup - RS232 2 wires - 2 I/O - 1 Wire interface - AVL Software

 Contact Us
Lantronix Part #
B43H207S
Name
BOLERO

(Device Only) Tracker BOLERO43 - Japan - Waterproof IP68-Rated Vehicle - 10.8 V Dc ~ 48 V Dc - Li-Ion Battery Backup - Ignition - Can Bus X 1 - Versatile I/O X 2 - 1-Wire Interface X 1 - 3-Way Concurrent GNSS

 Contact Us
TRACKER KIT
Lantronix Part #
B41H00FB02
Name
BOLERO BUNDLE

BOLERO41-PROMOTION-KIT

 Contact Us
TRACKER
Lantronix Part #
B41H00FS
Name
BOLERO

(Device Only) Tracker BOLERO41 - Wordlwide - 2G band 5/8/3/2 - IP 68 – GNSS - Li.Ion battery backup - RS232 2 wires - 2 I/O - 1 Wire interface - AVL Software

 Contact Us
Lantronix Part #
B43H002S
Name
BOLERO

(Device Only) Tracker BOLERO43 - EMEA - LTE CatM1 band 20, 8, 3, 7- 2G FB band 8, 3 - IP 68 – GNSS - Li.Ion battery backup - RS232 2 wires - 2 I/O - 1 Wire interface - AVL Software

 Contact Us
Lantronix Part #
B43H001S
Name
BOLERO

(Device Only) Tracker BOLERO43 - NA-LTE CatM1 band 13-IP 68, GNSS - Li.Ion battery backup - RS232 2 wires - 2 I/O - 1 Wire interface - AVL Software

 Contact Us
Lantronix Part #
B43H207S
Name
BOLERO

(Device Only) Tracker BOLERO43 - Japan - Waterproof IP68-Rated Vehicle - 10.8 V Dc ~ 48 V Dc - Li-Ion Battery Backup - Ignition - Can Bus X 1 - Versatile I/O X 2 - 1-Wire Interface X 1 - 3-Way Concurrent GNSS

 Contact Us
TRACKER KIT
Lantronix Part #
B41H00FB02
Name
BOLERO BUNDLE

BOLERO41-PROMOTION-KIT

 Contact Us
