M110 Series

Compact and intelligent industrial modems

Lantronix M110 modems are designed to provide connectivity across a broad range of M2M and IoT applications. They allow Internet connectivity via serial port to PLCs, Meters, Vending Machines. They help transporting data from any industrial device to data control servers, allowing businesses to benefit from real-time data monitoring, management and control.

M110 Series

    Overview for M110 Series



    Lantronix M110 modems are designed to provide connectivity across a broad range of M2M and IoT applications. They allow Internet connectivity via serial port to PLCs, Meters, Vending Machines. They help transporting data from any industrial device to data control servers, allowing businesses to benefit from real-time data monitoring, management and control.



    Compact and intelligent modem running eCos® Application Framework



    Lantronix M110 series modems support industrial protocols and accessories specifically developed by Lantornix to ease integration with industrial equipment such as electricity meters, programmable logic controllers, lifts and vending machines.



     Main Markets



    m110 - metering




    Available in NB-IoT and LTE-M1

    Recently introduced  LTE standards for IoT applications, allowing devices that operate on carrier networks to be less expensive and more power efficient.





    Ultra small form factor

    With a common form-factor of 60 x 66 x 21.7 mm Lantronix 110 series modems are the modem of choice for applications where space is limited.

    Low power consumption

    Lantronix M110 are designed for low power consumption, fully operational for any M2M/IoT application where the power is often scarce.


    Two 2- or 3-way versatile I/Os

    The Lantronix FM110 features two versatile I/O ports user-configurable as analogue input; or digital output (2-way, as a factory option); or analogue input suited to the so-called ‘current loop’ sensors – aka 4 mA ~ 20 mA sensors (3-way).


    Last Gasp (factory option)

    Allows for sending at least five 30-character SMS at one-second intervals; courtesy of two industrial-grade super caps.



    USB 2.0

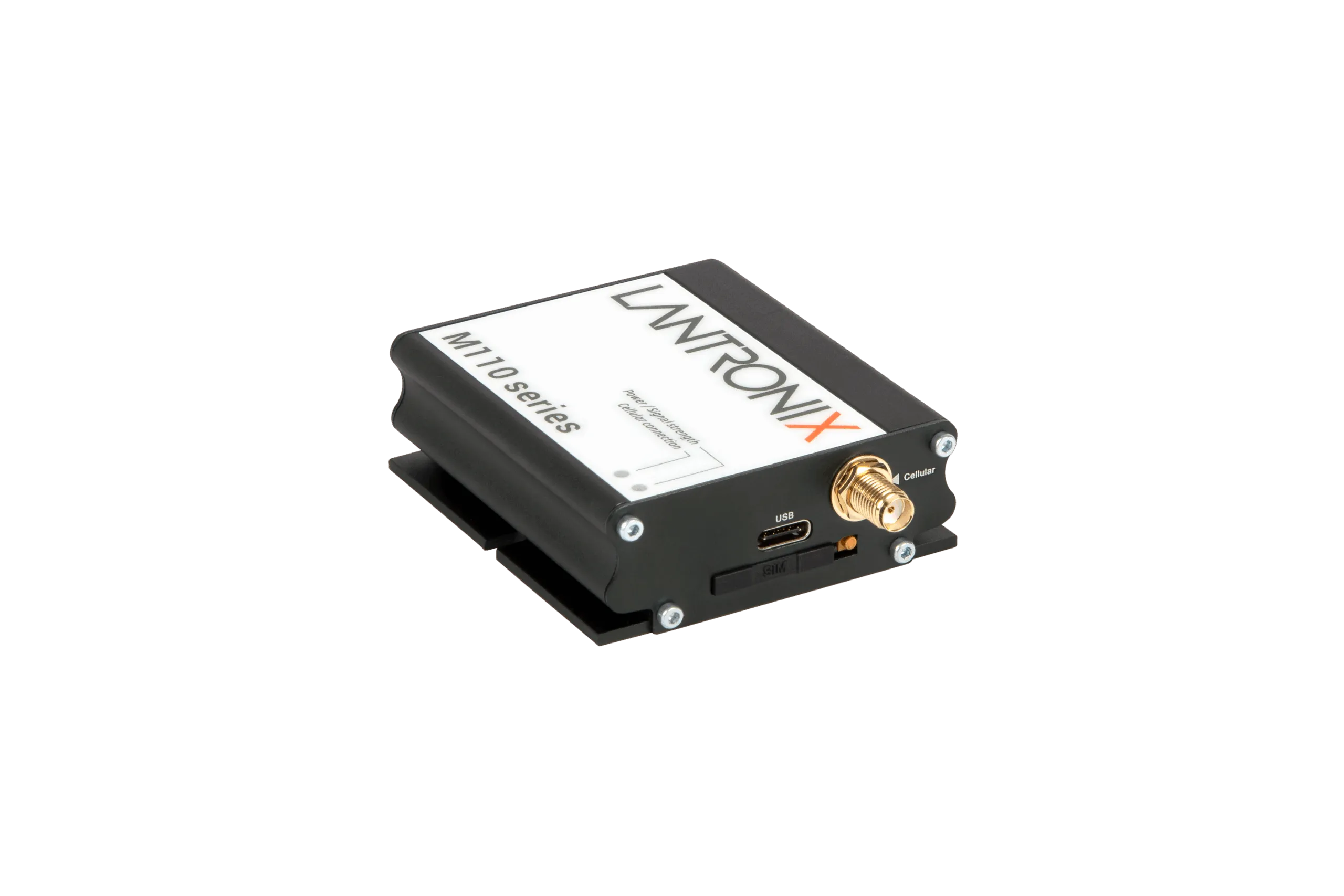

    The M110 series modems includes a USB Type-C port for direct connection to a computer or industrial equipment.



      Features & Specifications for M110 Series

      Model
      name      		 Territories or
      Operator(s)      		 Cellular
      type       1      		 Bands 2 Fallback
      mode       1      		 Band(s) 2 Location
      services      		 Planned / Obtained
      certifications       3
      M111 World excl. Japan, Koreas 2G λ1 5/8/3/2 û N/A û CE 7
      M112 China NB-IoT 5/8/3
      World 5 28/20/5/8/3 TBD
      M113 Dual mode
      LTE-M1 /
      NB-IoT      		 12a/28/13/20/
      26b/8/3c/4/25d
      1 (roaming only)      		 ISED; FCC 8, PTCRB, Verizon Wireless, AT&T Wireless; JRF, JPA, NTT docomo, SoftBank; KC, SK telecom
      EMEA; South-East Asia; South Asia 12a/13/20/5/8/3/4/2
      26/28 (roaming only)      		 2G λ3 5/8/3/2 CE 7
      M114 EMEA LTE cat. 1 20/3/7 8/3
      Verizon Wireless 13/4 û N/A FCC 8, Verizon Wireless
      AT&T Wireless,
      T-Mobile USA, Sprint      		 12a/5/4/2 3G 5/2 ISED; FCC 8, PTCRB,
      AT&T Wireless
      Asia Pacific 28/8/3 1 RCM; NCC
      NTT docomo 19/1 û N/A JRF, JPA
      M115 World 6 3G 5/8/3/1 2G λ2 5/8/3/2 TBD

      Specifications

      Material Brushed aluminium aloy, DIN rail mountable
      Dimensions 60 x 66 x 21.7 mm without connectors
      Weight Approx. 95 g
      Power Input voltage: +8 ~ +32 VDC with SLOW START
      Operating temperature range -30°C ~ +70 °C, class A
      -40 °C ~ +85 °C, class B
      MCU STMicroelectronics’ STM32F446
      – 32-bit ARM(R) Cortex™-M4 architecture; running at 168 MHz
      – Built-in 256 KB Flash memory and 128 KB RAM
      Cellular technology M111 – Quad-band GSM / GPRS
      M113 – Dual mode LTE-M / NB-IoT with 2G fallback
      Functional features Maestro mPack:
      – Dial-up connection
      – TCP/UDP permanent client/server or on-demand client with two TCP/UDP sockets for failover
      – Network connectivity watchdog
      – Support for continuous SMS sending
      – Conversion between Modbus RTU and Modbus TCP
      – Configurable text and recipients upon the Last Gasp
      – DOTA via user’s HTTP server or D2Sphere
      – Configuration via: Terminal program, SMS, Telnet and D2Sphere

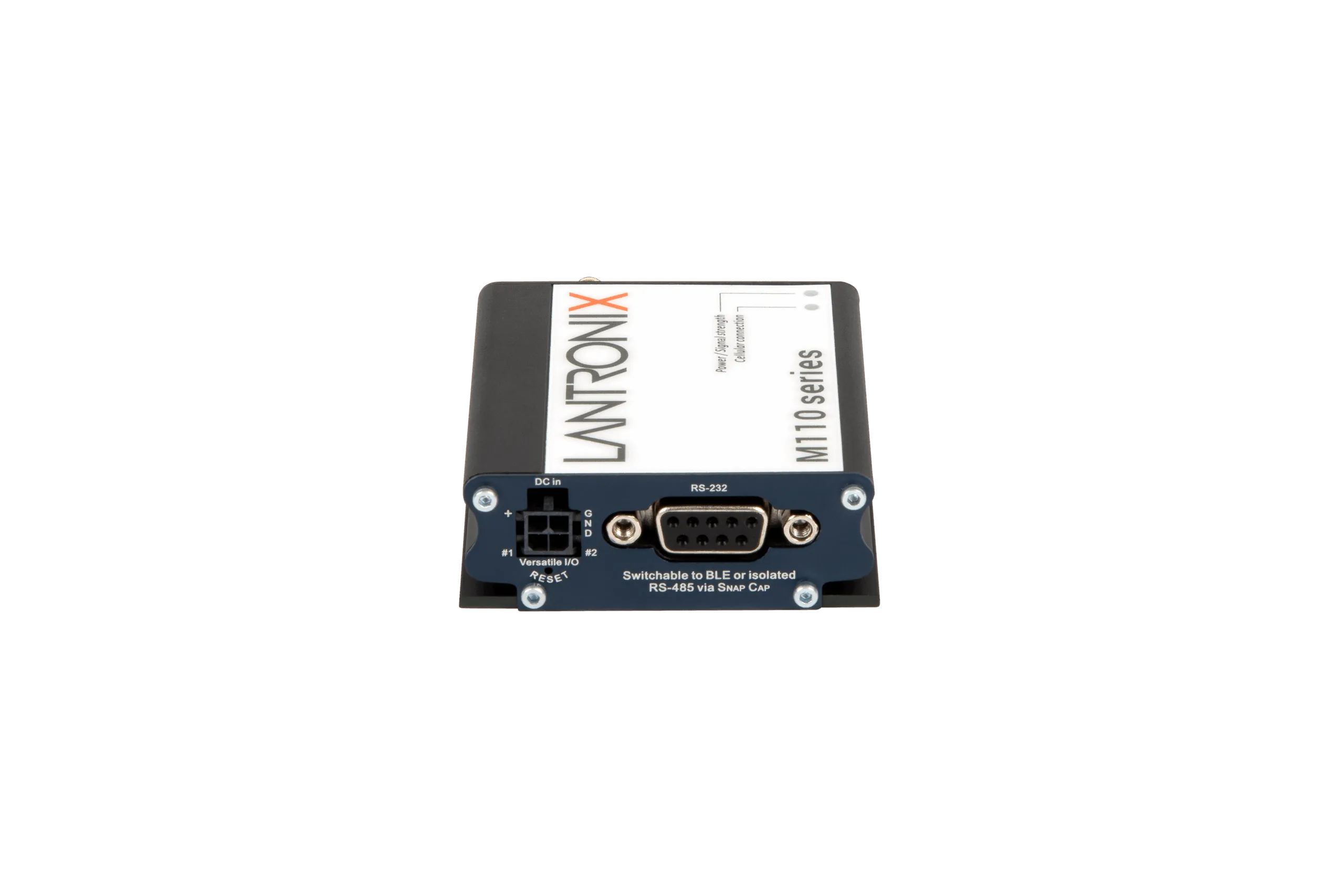

      Interfaces • RS-232, DB-9 connector
      • USB 2.0, Type-C connector
      • Micro-Fit TM 4-pin connector:
      – Power supply (on 2 pins)
      – Digital input/output x 2 (on 2 pins)
      – As analogue input: 0V ~ 48V DC
      – As digital input/output: open collector; 200mA; 50V DC max.
      • Cellular: SMA antenna connector
      • SIM: 2FFi SIM 1.8 V / 3.0 V
      • LED indicators: Two

    Docs & Downloads for M110 Series

    Document Size
    Certificate of Compliance: RoHS and REACH FM-418 A LMS 105 KB
    Lantronix Mobility Solutions Brochure – Verizon 952 KB
    Lantronix Mobility Solutions Brochure – ATT 952 KB
    Lantronix Mobility Solutions Brochure 5 MB
    Lantronix M110 Series – Product Brief 601 KB
    Lantronix M110 Series – Product Brief (A4) 646 KB
    M110 Series mPACK – Command Reference 1 MB
    M110 Series – User Guide 601 KB
    M110 Series – Generic AT Command Reference 10 MB
    Snap Cap RS-485 Datasheet 409 KB

    Firmware Downloads

    M110 USB Driver
    m-center software 2.0.0
    mPACK_M110-Series_v2.1.2RC17
    mPACK_M110-Series_v2.5.0RC9
    mPACK_M110-Series_v2.7.0.0

    Order Information & Part Numbers for M110 Series

    Modems
    M111F00FS M111 M110 Standard

    Modem M111 - Worldwide - 2G quad band - RS-232 & USB ports - 2 I/Os - Mpack

    		 Contact Us
    M113F00FS M113-N M110 Standard

    Modem M113M1/NB1 Worldwide - LTE-M1 / NB-IoT band 12, 28, 13, 20, 26, 8, 3, 4, 25, 1 - RS-232 & USB ports - 2 I/Os - Mpack

    		 Contact Us
    M113F002S

    MODEM M113M1/NB1 2GFB WORLDWIDE - LTE-M1 / NB-IOT BAND 12, 28, 13, 20, 26, 8, 3, 4, 25, 1 - 2G FB, RS-232 & USB PORTS - 2 I/OS - MPACK

    		 Contact Us
    M114F005S M114#1J M110 Standard

    Modem M114 DoCoMo - JAPAN - LTE cat. 1 band 19, 1 - No Fall back - RS-232 & USB ports - 2 I/Os - Mpack

    		 Contact Us
    M114F002S M114#37K##38 M110 Standard

    Modem M114 EMEA - LTE cat. 1 band 20, 3, 7 - 2G FB band 8, 3 - RS-232 & USB ports - 2 I/Os - Mpack

    		 Contact Us
    M114F000S M114#245C#25 M110 Standard

    MODEM M114 AT&T, TMOBILE, SPRINT - NORTH AMERICA - LTE CAT. 1 BAND 12, 5, 4, 2 - 3G FB BAND 5, 2 - RS-232 & USB PORTS - 2 I/OS - MPACK

    		 Contact Us
    M114F003S M114#38S#1 M110 Standard

    Modem M114 Asia Pacific - LTE cat. 1 band 28, 8, 3 - 3G FB band 1 - RS-232 & USB ports - 2 I/Os - Mpack

    		 Contact Us
    Accessories
    MF18 M111-M113-M115 accessory bundle Accessories Bundle

    M111-M113-M115 accessory bundle : Power cord KDC44,USB cord KUCA1, Antenna A31M0, Din rail clip BR350

    		 Contact Us
    MF19 M114 accessory bundle Accessories Bundle

    M114 accessory bundle : Power cord KDC44,USB cord KUCA1, Antenna A32M0, Din rail clip BR350

    		 Contact Us
    SC485 SNAP CAP™ RS-485

    SNAP CAP™ RS-485 converts Lantronix M110 or E210 series’ RS-232 port on a 9-pin sub-D connector (female) into an isolated half duplex or full-duplex RS-485 port on a 5-pin, 3.5 mm pitch, COMBICON connector.

    		 Contact Us
    Power Supplies
    P24E0 ACC-PS20-F

    12V1.25A SWITCHING POWER ADAPTER, WITH 4PIN SWB CONNECTOR. EURO PLUG AC CABLE.

    		 Contact Us
    P24E1 ACC-PS21-F-JP

    ADAPTER, POWER 12V1.25A SWITCHING, WITH 4PIN SWB CONNECTOR, PLUG AC CABLE WITH PSE MARK, JAPAN

    		 Contact Us
    P24E3 ACC-PS22-F

    ADAPTER, POWER SUPPLY, 12V1.25A SWITCHING, WITH 4PIN SWB CONNECTOR, AC CABLE, PLUG, AUSTRALIA & NZ

    		 Contact Us
    P24E4 ACC-PS23-F

    ADAPTER, POWER 12V1.25A SWITCHING, WITH 4PIN SWB CONNECTOR, AC CABLE, PLUG, UK/HK

    		 Contact Us
