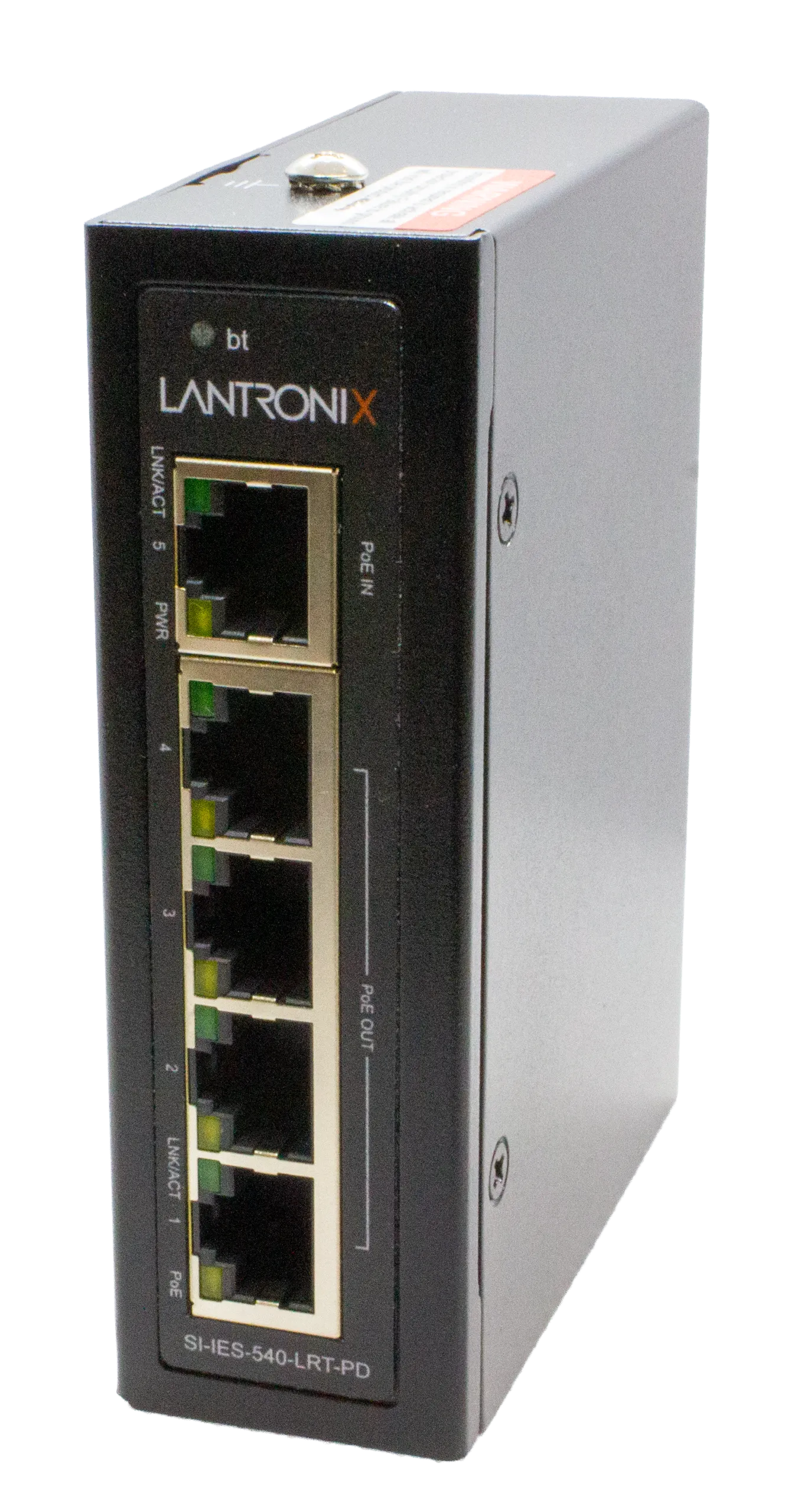

SI-IES-540-LRT-PD

New

The SI-IES-540-LRT-PD is a PoE-powered splitter that also acts as a power sourcing device (PSE) for up to 4 additional PoE-powered devices (PDs). It can be used to power security cameras, VoIP phones, card readers, controllers, access points and more. It is also ideal for optimizing IEEE 802.3bt switch ports in applications such as PoE lighting, which require high power for the lighting but include other lower-power devices such as sensors. Connecting the splitter to one 60 or 90W switch port allows it to power up to four sensors or other devices, reducing the amount of cabling needed as well as the number of switch ports required, decreasing total overall cost while maximizing the power budget of the switch. Although the splitter is an unmanaged device, power to the connected PDs can be remotely “reset” by briefly power cycling the splitter or the switch port to which the splitter is connected.

Features

• Supports IEEE 802.3af/at/bt
• 10/10/1000 data transmission
• Non-blocking architecture
• Compact size
• IP30 housing
• Auto MDI/MDI-X function
• Auto Negotiation
• Full/half duplex
• Reverse Polarity Protection
• Overload Current Protection
• Extended operating temperature (-40°C to +75°C)
• DIN Rail or Wall Mount
