New

Advanced Console Server

SLC 9000 Series

The SLC 9000 Series + Percepxion™ is autonomous out-of-band management — devices provision themselves, fleets manage themselves, so your team stays focused on the network that matters.

With the SLC 9000, devices auto-provision, serial ports identify connected equipment, and your entire network fleet is managed from a single Percepxion cloud dashboard. It’s built for modern operations: fast, low-touch deployment, reliable secure access to remote infrastructure, and integration with existing automation tools, so you spend less time on out-of-band and more time managing the network.

Product Brief Request a Demo

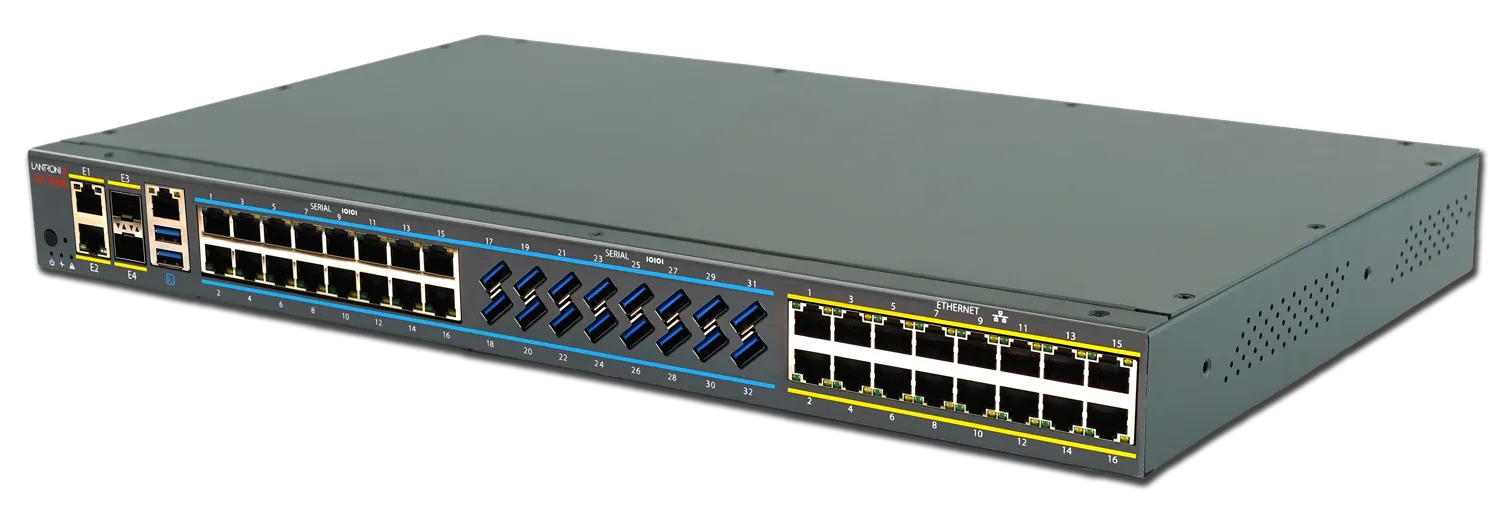

Lantronix SLC 9000 advanced console manager model SLC9016-16U-16E with 16 RJ45 serial, 16 USB serial, and 16 Ethernet console ports for secure remote data center management.

True Zero-Touch Provisioning

Cable up and skip the keyboard. Auto call home will pick up latest firmware, config, and appear in inventory

The most reliable connection

Serial access to managed devices survives outages and cellular failover provides remote connections

Fleet management your way

Percepxion tracks every firmware version across every device, verifies compliance, and lets you push updates from the UI

API-First Platform ties into your primary tools

Every management task—firmware updates, config backups, and session control—is fully API-driven, with native integrations for NetBox, Ansible, Terraform, ServiceNow, and custom CMDBs.

Overview

Introducing SLC 9000 + Percepxion™

The autonomous out-of-band platform for teams that need reliable infrastructure access without the operational overhead.

From Configured to Self-Describing | Plug in a cable. SLC 9000 detects the connection, fingerprints the device, and captures make, model, hostname, and OS version… all automatically. When you unplug, the stale entry clears immediately. Accurate by design, not by discipline.

From Administered to Self-Managing | Power it on. The SLC 9000 calls home to Percepxion via DHCP or cellular, picks up its baseline config, pins firmware to policy, and appears in inventory. Zero manual configuration per box. ~2 hours of saved labor per site deployment.

From Closed Appliance to API-First Platform | Every management operation is callable via OpenAPI 3.1. Integrate with Ansible, Terraform, ServiceNow, NetBox, or any CMDB. The OOB layer becomes part of the automation stack — not a separate silo.

Not just an update. A rethink.

SLC 9000 was designed for current network environments and how network engineers work today:

SASE-ready architecture | Built for zero-trust frameworks. SSE and SASE integrations supported natively.

Percepxion-native management | First Lantronix device designed from the ground up for Percepxion cloud management.

Reliable serial connections | Up to 48 ports. Higher throughput, lower latency than prior-gen. Built for data center density.

TAA compliant | Federal-ready from day one.

OpenAPI 3.1 integration | Every operation available via REST.

Built on Trust. Designed for What’s Next.

If you’re running the SLC 8000 today, you already know what reliable out-of-band management looks like. The SLC 9000 is the natural next step — not a replacement, but an evolution.

Everything your team depends on is still there: the proven console access, the authentication workflows, the reliability you’ve built your operations around. What’s new is everything that makes your job easier going forward — zero-touch provisioning, automated device discovery, and Percepxion’s cloud-native management platform that grows with your network.

At Lantronix, we don’t just build products for where networks are today. We build for where your network needs to be tomorrow. The SLC 9000 is how we get there together.

Already running the SLC 8000?

Talk to a Lantronix expert about your migration path

Percepxion for Networking

Cloud Management for Your Fleet

Percepxion is working for you every day providing firmware compliance tracking, configuration backup and drift detection, and audit logs across every device. All from a single dashboard as a SaaS or on-prem server.

Demo Today Dive Deeper Into Percepxion

Simplify Out-of-Band Deployment with Lantronix

Lantronix LEVEL Technical Services provides dedicated technical support experts to assist your team with technical challenges you may encounter with your out-of-band solution. LEVEL services offer global phone support, extended limited lifetime hardware warranty, and dedicated account technical specialists. Coupled with our resilient networking products, knowledgeable, and personable tech support team, Lantronix delivers assistance you can trust for your business continuity.

Support with set-up and operations
Improve efficiencies in deployment and beyond
White glove service to meet your unique needs

Interested in LEVEL Support?

Learn More

Industries

Hyperscalers/Data Centers

Ready for high-density environments with high-speed dual SFP+ connections and a certified Ansible collection that gives existing playbooks direct access to both the SLC 9000 and Percepxion.

Federal

For classified and air-gapped environments, SLC 9000 with Percepxion keeps OOB access available even when networks go dark. Tamper evident session logs and MFA ensure that security teams get required compliance data without manual collection.

Financial

When a misconfiguration or incorrect firmware version can trigger a regulatory finding, the SLC 9000 + Percepxion is always watching and reporting, so compliance audits are never a scramble.

Healthcare

For environments where uptime is life or death, SLC 9000 with Percepxion maintains secure OOB 4G/5G failover when primary networks fail, enabling rapid system recovery with tamper evident logs and MFA for compliance.

Specifications

Memory & CPU
- Processor
  - LS1046A 1.8 GHz Arm Cortex with four cores
- Memory
  - 8GB LPDDR4 memory
- Storage
  - 128 GB eMMC
Management Interfaces
- Network Ports
  - Two 10/100/1000 BaseT Ethernet interfaces (failover support)
  - Two 1/10Gbps SFP+ ports
- Local Console Port
  - One RS-232 console port
- USB Ports
  - Two USB-A 3.0 ports
Management Ports
- Managed Serial Ports Supports up to 48 devices in 16-port increments
  - RJ45 serial
  - USB serial
  - Ethernet (max of 32-ports)
Physical Security
- TPM Embedded
  - TPM 2.0
Modem Options
- External NTC-501/02-SLC9 5G Cellular Modem Support over USB-C
  - 2A power support and 2-way 12V termination block
- External v.92 POTS
Power
- Power Supply AC Model
  - Dual input, 100-240 VAC, 50/60 Hz, 60 W
- DC Model
  - Dual input, -20 to –72 VDC
Physical
- Dimensions
  - 4.5 mm (1.75 in) H x 444.5 mm (17.5 in) W x 267 mm (10.5 in) D
  - 1 Rack Unit (1RU)
- Weight
  - 2.7 kg (6 lbs)
Operating Environment
- Operating Temperature
  - 0° C to 50° C (32° F to 122° F)
- Humidity
  - 20% to 80% relative humidity, non-condensing
Regulatory
- Emissions
  - FCC Class A sub part B
- Safety
  - TUV
- Compliance
  - RoHS compliant

Part Numbers

Filter by type:

Models with RJ-45 Serial Ports Only
Part Number	Name	Description
SLC9016	SLC 9000	16 RJ45 serial ports, 2x 1GbE, 2x SFP+, TPM 2.0, dual AC PSU	Contact Us
SLC9032	SLC 9000	32 RJ45 serial ports, 2x 1GbE, 2x SFP+, TPM 2.0, dual AC PSU	Contact Us
SLC9048	SLC 9000	48 RJ45 serial ports, 2x 1GbE, 2x SFP+, TPM 2.0, dual AC PSU	Contact Us
Models with USB Serial Ports
Part Number	Name	Description
SLC9016-16U	SLC 9000	32 serial ports (16 RJ45, 16 USB Type-A), 2x 1GbE, 2x SFP+, TPM 2.0, dual AC PSU	Contact Us
SLC9016-32U	SLC 9000	48 serial ports (16 RJ45, 32 USB Type-A), 2x 1GbE, 2x SFP+, TPM 2.0, dual AC PSU	Contact Us
SLC9032-16U	SLC 9000	48 serial ports (32 RJ45, 16 USB Type-A), 2x 1GbE, 2x SFP+, TPM 2.0, dual AC PSU	Contact Us
Models with Ethernet Switch Functionality
Part Number	Name	Description
SLC9016-16E	SLC 9000	16 RJ45 serial ports, 16x 1GbE switch ports, 2x 1GbE, 2x SFP+, TPM 2.0, dual AC PSU	Contact Us
SLC9016-32E	SLC 9000	16 RJ45 serial ports, 32x 1GbE switch ports, 2x 1GbE, 2x SFP+, TPM 2.0, dual AC PSU	Contact Us
SLC9024-24E	SLC 9000	24 RJ45 serial ports, 24x 1GbE switch ports, 2x 1GbE, 2x SFP+, TPM 2.0, dual AC PSU	Contact Us
SLC9032-16E	SLC 9000	32 RJ45 serial ports, 16x 1GbE switch ports, 2x 1GbE, 2x SFP+, TPM 2.0, dual AC PSU	Contact Us
Models with both USB Serial & Ethernet
Part Number	Name	Description
SLC9016-16U-16E	SLC 9000	32 serial ports (16 RJ45, 16 USB Type-A), 16x 1GbE switch ports, 2x 1GbE, 2x SFP+, TPM 2.0, dual AC PSU	Contact Us
Power Options
Part Number	Name	Description
AC Power	Dual AC Ports	The default part numbers above are dual AC power	Contact Us

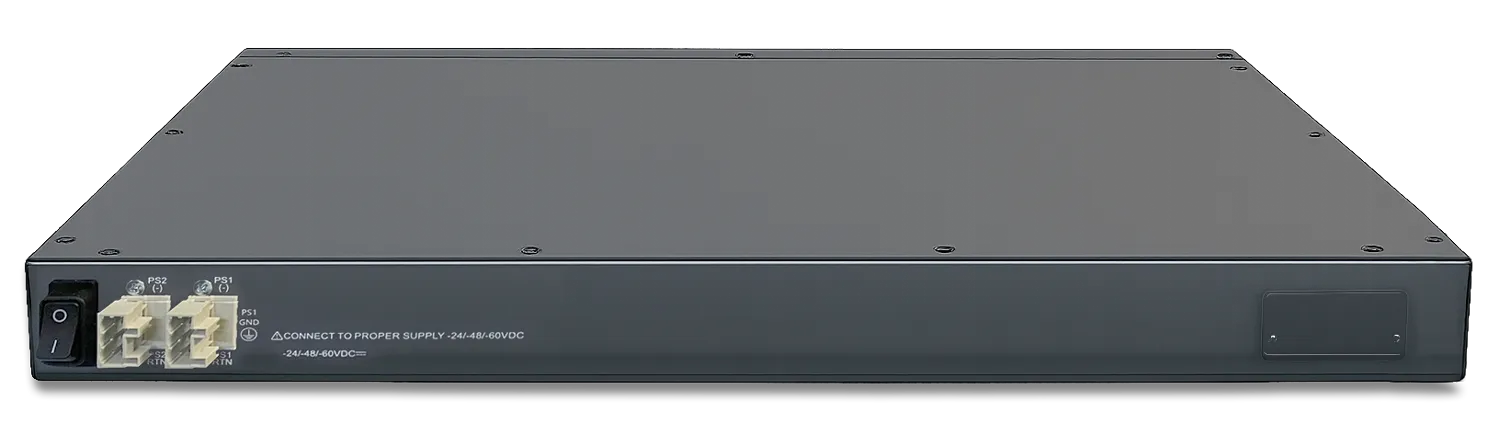

DC Power	Dual DC Ports	The SLC 9000 is also available with dual DC power inputs. Add “-DC” to the end of the part number to order. For example: SLC9016-DC	Contact Us
AC Power Cord Options	Sold with or without power cables	The default part numbers above ship without power cords. For North American power cords (NEMA 5-15P), add “-NA” to the end of the part number. For example: SLC9016-NA	Contact Us
Accessories
Part Number	Name	Description
NTC-501-01-01	5G Industrial Grade Router	North America (AT&T, Verizon, T-Mobile, Bell, US Cellular)	Contact Us
NTC-502-01-01	5G Industrial Grade Router	5G Industrial Grade Router – EMEA, APAC excl. Japan & China (Telstra)	Contact Us
SFPs	Small form-factor pluggable (SFP) transceivers	Lantronix offers a variety of fiber and copper SFPs. View options.	Contact Us
ACC-500-103		ACCESSORY, RJ-45, DB9 FEMALE, 6′ CONNECTING DTE DEVICE (TERMINALS, PRINERS, CONSOLE PORTS)	Contact Us

What’s In The Box (3)

(1) SLC 9000

(1) Quick Start Guide

(1) Dual Rack Ears & Screws

Talk with us about Out-of-Band Management

Lantronix has been a leader in the out-of-band business for more than 20 years. We’d be happy to talk about your environment and how our experienced staff and patented solutions can make your network easier to manage, highly secure, and more resilient.
