ION219 Chassis

19-Slot Chassis for ION Slide-in Modules

Key Features
  • Intelligent, high-density, multi-protocol system supporting a variety of network interface devices
  • Supporting carrier class and enterprise network applications
  • A network administrator can configure, monitor and troubleshoot ION slide-in modules remotely via the ION Management Module.
NDAA Compliant

ION219 Chassis Overview

The ION219 is an intelligent, high-density, multi-protocol system supporting a variety of network interface devices. Designed for both carrier class and enterprise network applications where multiple points of fiber integration and secure network management of the fiber interface devices is essential. An end-to-end fiber integration solution can be achieved by pairing the modules in a high density ION chassis with the modules in another ION chassis, or a Lantronix’ stand-alone device. To take full advantage of all the features and functions available with the ION Chassis, an ION Management Module is required. The ION Management Module connects to the chassis backplane and communicates with the individual cards in the ION Chassis. Each slide-in module for the ION Chassis has specific features and functions that are controlled via the ION Management Module. A network administrator can configure, monitor and troubleshoot ION slide-in modules remotely via the ION Management Module.

Lantronix understands that no network is managed in the same manner and that different security levels and management interfaces are often required depending on the deployment of the ION Chassis. With that in mind, the ION Platform has been designed to be one of the most versatile and secure fiber integration systems available today.

Security Features

When the optional management module is used, the following security are available, allowing you to control access to the ION Chassis via the ION Management Module, ensuring that only authorized personnel are able to view and change the settings to the slide-in modules.

  • Management VLAN
  • SSL
  • SSH
  • IEEE 802.1X
  • SNMPv1 & V2c, +V

Management Features

  • Variety of management access methods including; telnet, web, SNMP
  • Single slot management module design allows for more slide-in modules to be inserted in the ION Chassis
  • Management VLAN
  • Based on Public MIBs
  • (2) 10/100 Ethernet interfaces
  • USB console port
  • TFTP upgrade/backup of slide-in modules
  • Import/Export configuration files in human readable/editable format
  • Multiple community string

Access Methods

  • Web-browser: Access the ION Management Module using a standard web browser
  • Command Line Interface (CLI): CLI access can be done via telnet remotely or via the local console port on the ION Management Module
  • SNMP: Since the ION platform is based on public MIBs you can easily manage the ION with a standard network management system (NMS) such as SNMPc, HPOV or any other standard SNMP platform
  • Focal Point: Transition Networks offers a free SNMP graphical user interface (GUI) software (Focal Point) for management purposes. Focal Point offers full read and read/write capabilities in a user friendly GUI

Case Studies

Retail & Consumer
TELUS has standardized on Lantronix's ION Platform because of its flexibility, high performance, easy installation, and secure management capabilities. This multi-service integration solution provides TELUS customers with the connectivity they need and the network throughput they desire.
IT / Data Center
Lantronix Media Converter Chassis facilitates standard, repeatable, consistent and secure network access across a magnitude of network infrastructures

ION219 Chassis Tech Specs

Slots

  • (19) Slots in front for ION slide-in modules
  • (2) Slots in rear for power supply modules

Status LEDs

  • Power On LED for each installed power supply module

Dimensions

  • Width: 17″ [430 mm]
  • Depth: 15.8” [401 mm]
  • Height: 3.5” [89 mm]

Power Consumption

  • Up to 150 watts

Power Input

  • *Two open bays for ION power supply modules supporting:
    AC: 100 – 240VAC
    DC: -48VDC
  • *Note: Power supply module supplies +12 VDC maximum to each slot in the chassis. Only one power supply module is required to power the chassis and the installed modules, the optional second power supply module provides redundancy for instant fail-over.

Power Output

  • 12VDC rated at 200 Watts (max)

Environment

  • Operating: 0°C to 50°C
  • Humidity: 5% to 95% (non-condensing)
  • Altitude: 0 – 10,000 ft.

Weight

  • 19 lbs. [8.6 kg]

MTBF

  • ION219-A:
    Greater than 23,570 Hours (MIL-HDBK-217F)
    Greater than 64,800 Hours (Bellcore)
  • ION219-D:
    Greater than 42,900 Hours (MIL-HDBK-217F)
    Greater than 118,000 Hours (Bellcore)

Certifications

  • UL listed, EN55032, EN55035, CE Mark, UKCA, FCC Class A, CISPR Class A

Warranty

  • Lifetime

ION219 Chassis Downloads

Additional Product Information

Note: Some Documentation may have Transition Networks named or pictured. Transition Networks was acquired by Lantronix in August 2021. Learn more about the acquisition here.

Firmware Downloads

Keep your products up to date by downloading the latest firmware. You must log in or create a MyLantronix account to download firmware.

Lantronix Part # Name Description Order Now
Sorry, no parts were found that match that search query.
Lantronix Part #
ION219-A
Name
ION219 Chassis

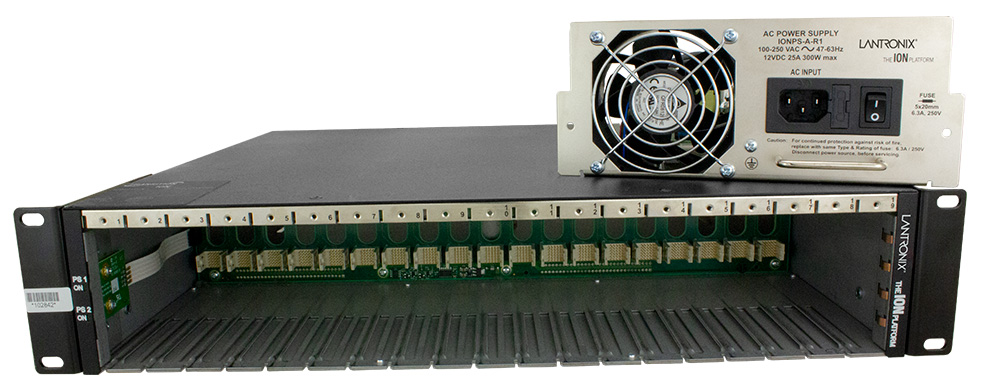

19-Slot Chassis for the ION Platform with (1) AC Power Supply

Contact Us
Lantronix Part #
ION219-D
Name
ION219 Chassis

19-Slot Chassis for the ION Platform with (1) DC Power Supply

Contact Us
Lantronix Part #
ION219-AAMB
Name
ION219 Chassis

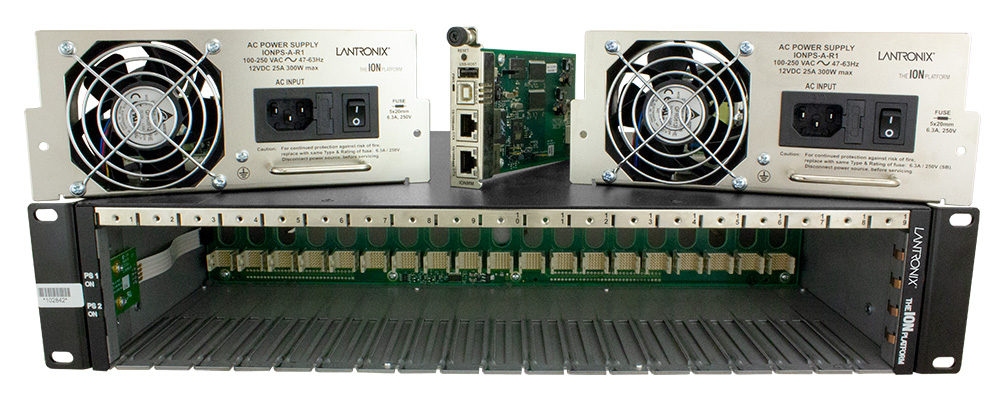

19-Slot Chassis for the ION Platform with (2) AC power supplies and (1) ION Management Module

Contact Us
Compatible Accessories
Lantronix Part #
IONPS-D-R1
Name
IONPS-D-R1

Redundant -48 VDC Power Supply Module for 19-Slot ION Chassis

Contact Us
Lantronix Part #
IONPS-A-R1
Name
IONPS-A-R1

Redundant AC Power Supply for 19-Slot ION Chassis

Contact Us
Lantronix Part #
IONRE-23
Name
IONRE-23

ION Rack Mount Ears

Contact Us
Lantronix Part #
IONFP
Name
IONFP

ION Face Plate

Contact Us
Lantronix Part #
IONMM
Name
IONMM Series

Management Module for the ION Chassis with a USB Type B CLI port

Contact Us
Lantronix Part #
IONMM-232
Name
IONMM Series

Management Module for the ION Chassis with a RS232 RJ-45 CLI port

Contact Us
