Lantronix SLB - Front View - remote console management

Lantronix SLB: Branch Office Manager

Lantronix SLB is a hybrid appliance combining a console manager and a PDU that provides real time visibility and control over branch office IT equipment securely and quickly. Without ever leaving your desk! Complete this solution with ConsoleFlow™, a centralized and automated monitoring ​management software.

Ensure network and business continuity at branch offices and remote sites and re mediate issues with automatic fail over to a secondary network.

  • Compact hybrid design eliminates need for costly on-site interventions and increases response efficiency

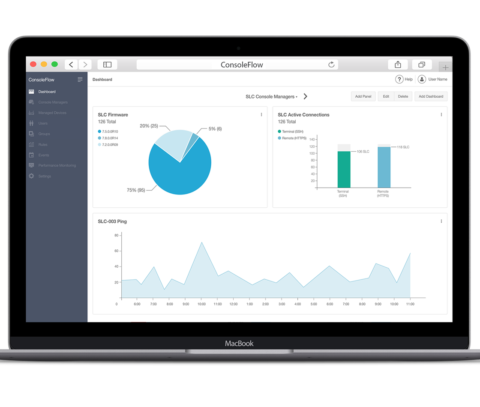

  • Centralized management integration with the Lantronix® ConsoleFlow™ and SLM™/vSLM™ central management solutions
  • Optional 4G LTE Connectivity Kit with automatic fail-over feature
  • Integrates secure console management (8 serial ports), remote power management (8 switching power outlets) and dual AC power inlets for redundancy and failover
  • Automatic transfer switch. SLB monitors dual AC inputs and will transfer power to secondary power source if primary power is lost
  • Per outlet current measurement for energy monitoring
  • Front LCD and keypad allows for quick network setup and easy deployment
  • Provides the highest levels of encryption and security to ensure data assets are protected
Free 30-Day TrialOrder Now

Lantronix SLB

    Overview for Lantronix SLB

    Consolidated Hybrid Management Solution for the “Distributed IT” Environment

    Tired of costly branch office downtime? Lantronix SLB provides real time visibility and control over branch office IT equipment securely and quickly. Without ever leaving your desk.

    Secure Lantronix Branch Office Manager (SLB)

    Personnel in offices apart from corporate headquarters often face unique challenges when it comes to managing IT equipment such as servers, routers, switches, firewalls, VPNs, PBX and UPS systems. Often, there is no dedicated or on-site system administrator. Therefore, when issues with networked equipment arise, they require a consultant or excessive phone time with corporate technical support – both adding cost and potentially extending downtime. With the newly redesigned Lantronix SLB secure branch office manager, these are no longer concerns. System and Network administrators can remotely control and manage console and power (on/off/reboot) of IT equipment anytime, anywhere.

    Console & Power Management In One

    By consolidating two essential functions it saves space, simplifies deployment and lowers the cost of managing a “distributed IT” environment.

    Built Specifically for the Branch Office

    The Lantronix SLB is ideal for locations with a handful of servers and/ or networked devices and where there is little or no on-site IT staff, such as branch offices or campus environments. The SLB supports a variety of industries including banking, finance, insurance, healthcare, retail sales, hospitality and education. It delivers secure remote console and power management (on/off/reboot) for up to eight devices. A total out-of-band solution, the SLB enables administrators to centrally monitor, manage and troubleshoot IT equipment even if the network or Internet is down.

    Because the Lantronix SLB integrates console and power management into a single unit, satellite facilities are not forced to purchase separate solutions that are designed for the enterprise data center which can be excessive for the remote branch office.

    Enterprise IT Security for the Branch

    Because protecting IT assets is a top priority, Lantronix SLB provides SSH/SSL data encryption and features NIST-certified AES encryption. It also supports remote authentication for integration with other systems already in place. For added protection, it includes a firewall that filters connection attempts to a specified IP address, port, or protocol based on a defined rule set.

    Easy to Deploy and Use

    The Branch Office Manager is very simple to set up. After connecting the unit and assigning an IP address locally, administrators back at corporate can do the complete configuration remotely. A front panel LCD with keypad, “quick setup” Web interface and a command line interface (CLI) setup script are all available. The comprehensive online help system includes context-sensitive information during configuration and operation.

    The Flexible, Scalable and Complete Distributed Out of Band Management (OOBM) Solution

    Lantronix SLB can be coupled with a Lantronix Spider distributed KVM over IP switch to add BIOS-level server management. Together they are a flexible, scalable and affordable solution for managing distributed IT assets. Spider delivers secure, non-blocked access to servers without the need for any additional client software. With a server-powered, zero-U design, it takes no rack space and does not require an external power supply.

    New: LTE Cellular Connectivity Kit

    The Lantronix LTE Cellular Connectivity Kit delivers mission-critical LTE connectivity as a failover solution to protect your data center and branch office out-of-band management infrastructure against landline failure. With new automatic fail-over functionality built into your SLB Branch Office Manager, deployment of a secondary enterprise network connection is simple and quick, and automatic fail-over from a land-line network outage is seamless.

      Features & Specifications for Lantronix SLB

      Accessibility

      • In-Band (Ethernet) – Dual Ethernet ports
      • Out-of-Band (Local terminal, USB Modem or Internal Modem)

      Security and Authentication

      • Secure Shell (SSH v1, v2, Public Key)
      • Secure Sockets Layer (SSL v3, TLS v1)
      • Packet filtering (firewall)
      • Per port user permissions
      • Configurable user rights
      • Remote authentication: LDAP, Active Directory, NIS, RADIUS, Kerberos, TACACS+

      Serial Device Port Access

      • Telnet/SSH to command line
      • Telnet/SSH/RAW-TCP direct to IP address and port number
      • Web Telnet /SSH
      • Multiple concurrent Telnet/SSH sessions
      • Simultaneous access on the same port
      • Sun break-safe
      • Customizable multi-level user menus

      Data Capture and Notification

      • Port buffering – 256 KB per port
      • Port logging to local files, USB drive, remote NFS files (simultaneously)
      • Local logging viewable via CIFS
      • System event logs
      • Console event notification (e-mail)
      • Event string recognition (RegExp)

      Management

      • Front panel keypad/LCD display for network setup and outlet status
      • Quick setup and configuration via web or CLI Command line interface (Telnet, SSH, web Telnet/SSH or direct serial)
      • SNMP (MIB II) compatible – v1, v2, v3, custom MIB’s
      • Diagnostics and port status counters
      • Configuration audit log

      Power Management

      • Individual outlet control: on/off/reboot
      • Configure “power on delay” of individual outlets
      • Over current monitor/alarm
      • Per-outlet current consumption measurement

      Additional Protocols Supported

      • DHCP and BOOTP for dynamic IP address assignment
      • NTP for time synchronization
      • FTP, TFTP, SFTP, SCP client for file transfers
      • DNS for text-to-IP address name resolution
      • SSH, SSL, Telnet, TCP & UDP, PPP w/PAP/CHAP, NFS and CIFS for connections in and out of the SLB
      • RIP and RIPv2

      Environmental

      • Operating Temp: 0°-50°C (32°-122°F)
      • Storage Temp: -20°-70°C (-4°-158°F)
      • Relative Humidity: 10 to 90%, non-condensing

      Interfaces

      • Network: Two 10Base-T/100Base-TX (RJ45) Ethernet
      • Serial Device Ports: 8-Ports, RS-232 (RJ45), 300 to 230400 bps
      • Power Outlets: 8 NEMA 5-20R Ports, 100-120 VAC
      • Power Inlets:
        • SLB882 (100-120 VAC) IEC60320 C20, 50/60 Hz
        • SLB8824 (200-240 VAC) IEC60320 C20, 50/60 Hz
      • Console Port: RS-232 (RJ45), 300 to 230400 bps
      • USB Port: 1.2 or 2.0 (full speed only)
      • Internal Dial-up Modem: v.92, 56K

      Operating System

      • Embedded Linux

      Central Management

      • Compatible with Lantronix’ SLM/vSLM central management appliance

      Power Consumption

      • Less than 30W max

      Physical

      • Dimensions (LxWxH):30.5 x 43.8 x 4.4cm (12 x 17.25 x 1.75in.), 1U
      • Weight: 10lbs. maximum, depending on options
      • Shipping weight: 14lbs. maximum

      Certification

      • FCC PART 15, VCCI, UL/CUL, NIST-certified implementation of AES (Advanced Encryption Standards) as specified by FIPS-197 (uses SLB-SSH algorithm)

      Warranty

      • 5-year limited warranty

    Order Information & Part Numbers for Lantronix SLB

    rohs_logo

    • Call (800) 422-7055 to speak with a Lantronix sales representative in North America.
    • Lantronix Worldwide Offices – Find an office in your region from our list of worldwide offices.
    • Find a Lantronix Partner – Lantronix products are available from a variety of leading technology vendors.
    100-120 VAC (50/60Hz)
    SLB882KIT-15P SLB882 Branch Office Manager

    (110 VAC, 50/60 Hz), 8x power outlets (NEMA 5-20R), 8x serial ports, 2x Automatic Transfer Switching power inlets (IEC60320/C20), 2x inlet power cords (IEC60320/C19 to NEMA 5-15P)
    Note: The max input/output is de-rated to 12A when using the NEMA 5-15P power inlet cable

    Order Now
    SLB882KIT-20P SLB882 Branch Office Manager

    (110 VAC, 50/60 Hz), 8x power outlets (NEMA 5-20R), 8x serial ports, 2x Automatic Transfer Switching power inlets (IEC60320/C20), 2x inlet power cords (IEC60320/C19 to NEMA 5-20P)
    Note: The max input/output is de-rated to 16A when using the NEMA 5-20P power inlet cable

    Order Now
    200-240 VAC (50/60Hz)
    SLB8824KIT-EU SLB8824 Branch Office Manager

    (220 VAC, 50/60 Hz), 8x power outlets (IEC60320/C13), 8x serial ports, 2x Automatic Transfer Switching power inlets (IEC60320/C20), 4x inlet power cords (2x IEC60320/C19 to Schuko/EU, 2x IEC60320/C19 to BS1363/UK)

    Order Now
    SLB8824KIT-AP SLB8824 Branch Office Manager

    (220 VAC, 50/60 Hz), 8x power outlets (IEC60320/C13), 8x serial ports, 2x Automatic Transfer Switching power inlets (IEC60320/C20), 4x inlet power cords (2x IEC60320/C19 to AS3112/AU, 2x IEC60320/C19 to China/CN)

    Order Now
    SLB8824KIT-WW SLB8824 Branch Office Manager

    (220 VAC, 50/60 Hz), 8x power outlets (IEC60320/C13), 8x serial ports, 2x Automatic Transfer Switching power inlets (IEC60320/C20), 4x inlet power cords (1x IEC60320/C19 to Schuko/EU, 1x IEC60320/C19 to BS1363/UK, 1x IEC60320/C19 to AS3112/AU, 1x IEC60320/C19 to China/CN)

    Order Now
    LTE Connectivity Kit
    CCKLTE450-NA LTE Connectivity Kit - North America   Order Now
    CCKLTE450-EA LTE Connectivity Kit - Europe / Asia   Order Now
    Lantronix Part # Name Description Order Now

    * Included power cords vary for kit purchased.
    Note: Unit input current is de-rated to 12A and 16A when using SLPP12310-01 and SLPP12410-01 respectively.

    Cellular Out-of-Band Connectivity for SLB

    Model Part Number Description
    PremierWave XC HSPA+ PXC2102H2-01-S Flexible and robust intelligent gateway for backup deployment of 3.5G HSPA+ wireless connectivity

    Note: Wireless data plan sold separately

    Compatible Accessories

    Lantronix Part # Legacy Part # Name Order Now
    SLPP41107-01 Outlet cord set: IEC60320/C13 to IEC60320/C14, pkg of 4, 6 Ft. Contact Us@
    SLPP12C08-01 Power cord: IEC60320/C19 to CHINA/GB (CHINA), 8 Ft. Order Now
    SLPP12A08-01 Power cord: IEC60320/C19 to AS 3112 (AUS/NZ), 8 Ft. Order Now
    SLPP12910-01 Power cord: IEC60320/C19 to BS1363 (UK), 8 Ft. Order Now
    SLPP12810-01 Power cord: IEC60320/C19 to Schuko (EU), 8 Ft. Order Now
    SLPP12610-01 Power cord: IEC60320/C19 to NEMA L6-20P (20A-TWIST), 10 Ft. Order Now
    SLPP12510-01 Power cord: IEC60320/C19 to NEMA L5-20P (20A, twist lock), 10 Ft. Order Now
    SLPP12410-01 Power cord: IEC60320/C19 to NEMA 5-20P (20A), 10 Ft. Order Now
    SLPP12310-01 Power cord: IEC60320/C19 to NEMA 5-15P (15A), 8 Ft. Order Now
    ADP010104-01 Cable; rolled serial adapter, 0.1m (0.33 ft) Order Now
    56KUSBMODEM-01 56K V.92 External USB Modem (RoHS) Order Now
    500-153 Cable; RJ45 Loopback adapter Order Now
    200.2070A RJ45 to DB9F cable adapter (DTE Device) Order Now
    200.2069A RJ45 to DB9M cable adapter (DTE Device) Order Now
    200.2067A RJ45 to DB25F cable adapter (DTE Device) Order Now
    200.2066A RJ45 to DB25M cable adapter (DTE Device) Order Now
    200.2073 RJ45 to DB25M cable adapter (DCE Device) Order Now
    200.0063 Cable; RJ45, 5 m (16.4 ft) Order Now
