xPico
  • xPico
  • XPC100100K-02-2T
  • xPico side-by-side SD card size comparison

Embedded Ethernet Device Server

  • Chip-sized Footprint: 24mm x 16.5mm
  • Complete Device Server Application with Full IP Stack and Web Server
  • Two Serial Ports Supporting Data Rates of up to 921 Kbps
  • 256-bit AES Encryption
  • Extended Temperature: -40° to +85° C
  • 5-Year Limited Warranty
Kate The Engineer Says...

Kate The Engineer

“

Marketing asked me to add an RGB LED to the next version of our home power monitor.  There were no more I/Os available on the microcontroller but when I looked at the Lantronix xPico wired network module inside, I noticed it had 8 available.  I tied 3 I/O lines from the xPico to 3 power MOSFETS to drive the RGB lines to the LED and then wrote some simple code using the Lantronix CoBos CPK to pulse width modulate each line.  Viola!  We now have a variable color, variable brightness LED for indicating a wide variety of conditions.

Overview for xPico

The Most Flexible Network Connectivity Solution

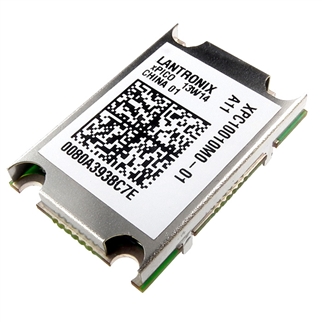

xPico – Smaller than a standard SD card Actual size: 24mm X 16.5mm (Bottom view of xPico)

xPico – Smaller than a standard SD card Actual size: 24mm X 16.5mm (Bottom view of xPico)

Designed for quick integration with minimal engineering effort, the chip-sized xPico provides simplicity and flexibility making it the easiest and fastest networking-enabling module on the market.

xPico is an extremely compact networking solution that enables Ethernet connectivity on virtually any device with a serial interface. The included industry-proven Lantronix device server application and full IP stack allow seamless remote access to device data simplifying design integration while providing robust connectivity.

As the smallest embedded device server in the world, xPico can be utilized in designs typically intended for chip solutions. A key difference with the xPico is that there is virtually no need to write a single line of code, translating to a much lower development cost and faster time-to-market.

xPico IAP Module for industrial and automation applications

Having the benefits of the xPico family, the xPico IAP is designed for robust operation with Modbus support, making it the ideal solution for industrial and automation applications.

Features & Specifications for xPico

Serial Interface

  • Interface: CMOS (Asynchronous) 3.3V-level signals (5V tolerant)
  • Data Rates: 300bps to 921,600bps (software selectable)
  • Data Bits: 7 or 8
  • Stop Bits: 1 or 2
  • Parity: Odd, Even, None
  • Control Signals: DTR/DCD, RTS/CTS
  • Flow Control: XON/XOFF (software), CTS/RTS (hardware), None
  • Programmable I/O: 8 PIO pins (software selectable)

Network Interface

  • Interface: Ethernet 10Base-T or 100Base-TX (Auto-sensing)
  • Protocols: TCP/IP, UDP/IP, ARP, Telnet, ICMP, SNMP, DHCP, BOOTP, TFTP, AutoIP, and HTTP

Management

  • SNMP, Telnet, Serial, Internal Web Server, and Microsoft Windowsbased utility for web configuration

Security

  • 256-bit AES Encryption

Internal Web Server

  • Storage Capacity: 384KB for Web Pages

Architecture

  • CPU: Based on the DSTni-EX Enhanced 16-bit x86 Architecture
  • Memory: 256KB SRAM, 512KB Flash
  • Firmware: Upgradeable via TFTP and Serial Port

Power

  • Input Voltage: 3.3VDC

Physical Interface

  • 40-pin Board-to-Board SMT Connector

Environmental

  • Operating Temp: -40° to +85° C
  • Storage Temp: -40° to +85° C

Included Software

  • MS Windows-based DeviceInstaller
  • MS Windows-based Com Port Redirector

Packaging

  • Dimensions: 24mm (L) x 16.5mm (W) x 5.64mm (H)
  • Weight: 2.5g

Warranty

  • 5-Year Limited

Docs & Downloads for xPico

Document Size
xPico – Development Kit User Guide 4 MB
xPico – Development Kit Quick Start 508 KB
xPico – Product Brief 266 KB
xPico – Product Brief (A4 Format) 279 KB
Embedded Product Comparison Matrix 386 KB
xPico – Integration Guide 5 MB
xPico – User Guide 1 MB

Firmware Downloads

xPico Firmware

Order Information & Part Numbers for xPico

Lantronix Online Store (U.S.A., Canada, Mexico, Europe)rohs_logo
Click on a cart button below to buy direct from Lantronix.

  • Call (800) 422-7055 to speak with a Lantronix sales representative in North America.
  • Lantronix Worldwide Offices – Find an office in your region from our list of worldwide offices.
  • Find a Lantronix Partner – Lantronix products are available from a variety of leading technology vendors.
Part Number Name Description Order Now
SKU
XPC100100B-01 xPico

Device Server Module, Extended Temp, AES Encryption, Bulk, RoHS

 Contact Us
XPC100100S-01 xPico Sample

Device Server Module, Extended Temp, AES Encryption, Sample, RoHS

 Order Now
XPC100A001-01-B xPico

Device Server Module, Mounting Quick Clip (50 pc)

 Contact Us
XPC100100K-02 xPico Development Kit

Device Server Module, Development Kit, w/ Module, RoHS

 Order Now
