XPort Overview

Build Serial to Ethernet Connectivity and Control into Your Products, Quickly and Simply

XPort is a compact, integrated solution to web enable virtually any device with serial capability. By incorporating XPort into a product design, device manufacturers can quickly and easily offer network connectivity as a standard feature — so equipment can be accessed and controlled over the network.

Full Networking in a Tiny Package

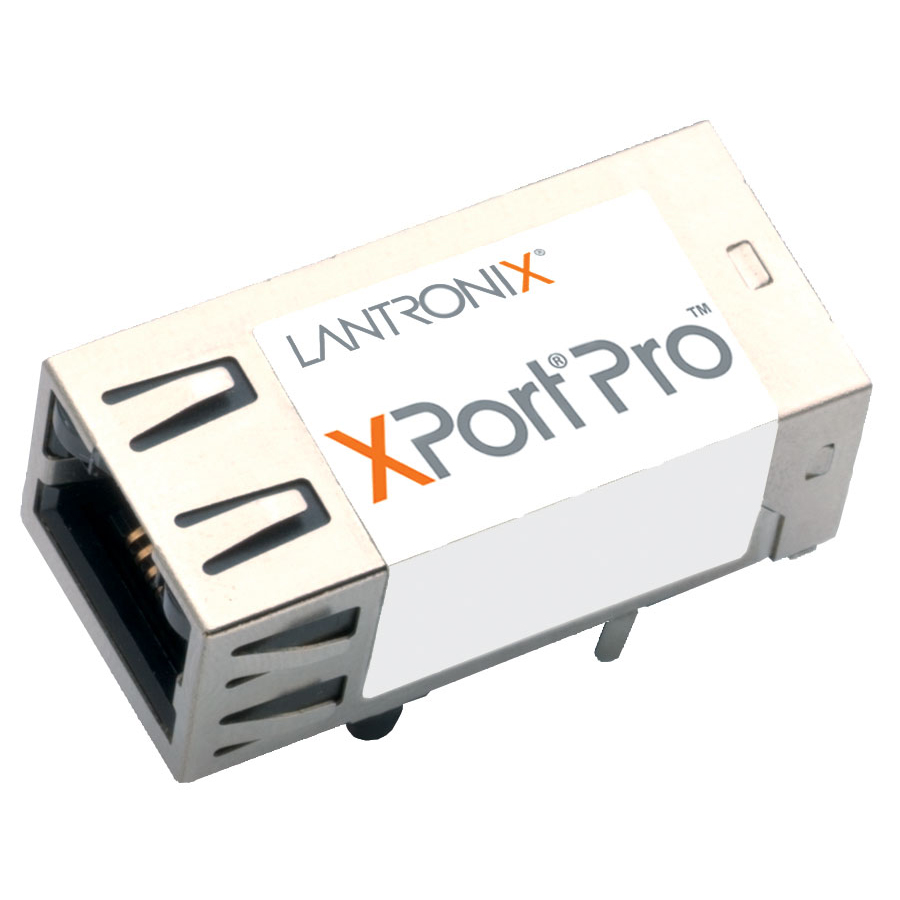

XPort embedded Ethernet device server removes the complexity – of designing network connectivity into a product by incorporating all of the required hardware and software inside a patented innovative package. Smaller than your thumb, it includes all essential networking features, including a 10Base- T/100Base-TX Ethernet connection, proven operating system, an embedded web server, e-mail alerts, a full TCP/IP protocol stack, and 256-bit AES encryption for secure communications.

Integrated Network Communications Module

XPort is powered by our DSTni network processor SoC, which includes a 10/100 MAC/PHY and 256 KB of SRAM. It features a built-in web server for communications with a device via a standard Internet browser. Web capability can be used for remote configuration, real-time monitoring or troubleshooting. XPort has 512 KB of onmodule Flash for web pages and software upgrades. It acts as a dedicated co-processor that optimizes network activities permitting the host microprocessor to function at maximum efficiency.

Robust, Feature-Rich Software Suite

Eliminating the need to develop or license a networking stack, XPort incorporates:

  • Robust Real Time Operating System (RTOS)
  • Full-featured network protocol stack
  • Built-in web server for device communication and configuration via a standard browser

The Windows-based DeviceInstaller tool makes configuring one or more XPorts in a subnet quick and easy.

  • Install and configure XPort and load firmware
  • Assign IP & other network specific addresses
  • Load custom web pages and view specific device data
  • Enable web-based configuration of the device
  • Ping or query the attached device(s) over the network
  • Allow Telnet communication with the device(s)

XPort Tech Specs

    Serial Interface

    • Interface: CMOS (Asynchronous, 5V Tolerant)
    • Data Rates: 300 bps to 921,600 bps
    • Characters: 7 or 8 data bits
    • Parity: Odd, even, none
    • Stop Bits: 1 or 2
    • Control Signals: DTR/DCD, CTS/RTS
    • Flow Control: XON/XOFF, RTS/CTS
    • Programmable I/O: 3 PIO pins (software selectable)

    Network Interface

    • Interface: Ethernet 10Base-T or 100Base-TX (Auto-Sensing)
    • Connector: RJ45
    • Protocols: TCP/IP, UDP/IP, ARP, ICMP, SNMP, TFTP, Telnet, DHCP, BOOTP, HTTP, and AutoIP

    Indicators (LED)

    • 10Base-T connection
    • 100Base-TX connection
    • Link & activity indicator – Full/half duplex

    Management

    • SNMP,Telnet, serial, internal web server, and Microsoft Windows®- based utility for configuration

    Security

    • Password protection
    • Optional 256-bit AES Rijndael encryption

    Internal Web Server

    • Storage Capacity: 384KB for web pages

    Architecture

    • CPU: Based on the DSTni-EX enhanced 16-bit, 48MHz or 88MHz, x86 architecture
    • Memory: 256KB SRAM and 512KB Flash
    • Firmware: Upgradeable via TFTP and serially

    Power

    • Input Voltage: 3.3 VDC

    Environmental

    • Operating Temperature Range: -40° to 85°C (-40° to 185°F)
    • Storage (Non-operating): -40° to 85°C (-40° to 185°F)

    Packaging

    • Dimensions: 33.9 x 16.25 x 13.5mm (1.33 x 0.64 x 0.53 in)
    • Weight: 9.6 g (0.34 oz)

    Included Software

    • Web manager, Windows®-based DeviceInstaller configuration software and Com Port Redirector.
