SA8295P Automotive Development Platform

Snapdragon™ Automotive Development Platform (ADP) based on the Qualcomm® Snapdragon™ Automotive chipset from Qualcomm® Technologies, Inc.

The SA8295P Snapdragon™ Automotive Development Platform (ADP) based on the Qualcomm® Snapdragon™ Automotive chipset from Qualcomm® Technologies, Inc. (QTI) provides OEMs and ecosystem partners with access to QTI’s high-performance automotive infotainment platform.

NDAA Compliant

SA8295P Automotive Development Platform Overview



This version of the ADP features the top tier QAM8295P. QAM8295P is the next generation Qualcomm® Snapdragon™ automotive infotainment module designed for superior performance and power efficiency. It has been developed as an SEooC (safety element out of context) targeting assumed ASIL B use cases.

SA8295P includes the following key components: Qualcomm® Kryo™ 695 CPU built on Arm v8 Cortex technology, Qualcomm® Adreno™ 695 GPU, Dual Qualcomm® Hexagon™ Tensor Processors, Qualcomm Spectra™ ISP 395, Adreno 665 VPU, Adreno DPU 1199, and dedicated Safety manager subsystem.

This product is available in two configurations:

1. SA8295P Automotive Development Platform (non-thermal ADP AIR mechanical design is intended to operate at 25°C or similar ambient lab temperature)

2. SA8295P Automotive Development Platform with Thermal Enclosure (thermal ADP AIR mechanical design is intended to operate up to 85°C)

SA8295P Automotive Development Platform Tech Specs

Processor

Snapdragon SA8295P SIP

  • Qualcomm® Kryoâ„¢ 695 CPU built on Arm v8 Cortex technology
  • Qualcomm® Adrenoâ„¢ 695 GPU for the highest in graphics performance and power efficiency
  • Dual Qualcomm® Hexagonâ„¢ Tensor Processors integrated with Qualcomm Hexagon DSP, quad Qualcomm Hexagon Vector eXtensions (HVX) processor, and dual Qualcomm Hexagon Matrix eXtensions (HMX) coprocessors for high performance machine learning use cases
  • Qualcomm Spectraâ„¢ ISP 395 image processing engine
  • Adreno 665 VPU for high-quality, ultra HD video encode and decode
  • Adreno DPU 1199 for ultra HD multi-display support
  • Dedicated Safety Manager Subsystem equipped with dual ARC HS46 CPU in lock-step mode

Camera

  • Four 4-lane MIPI CSI configurable in 4 + 4 + 4 + 4 or split 2s configuration

Display

  • Three DisplayPorts, one of them shared with USB 3.1
  • Four 4-lane embedded DisplayPort v1.4b
  • Two 4-lane MIPI DSI D-PHY v1.2

Power Supply

  • 6V to 20V. Typical 12V DC

Safety MCU

  • 1x Aurix TC397xx

Memory

  • Eight-channel high-speed memory – 2133 MHZ LPDDR4X SDRAM with optional low-power features (8×16-bit) 16 GB

Storage

  • Two UFS 3.1 gear 4-2 lanes for on board memory (UFS0 as booth up device)
  • NVMe via PCIe (not-bootable)

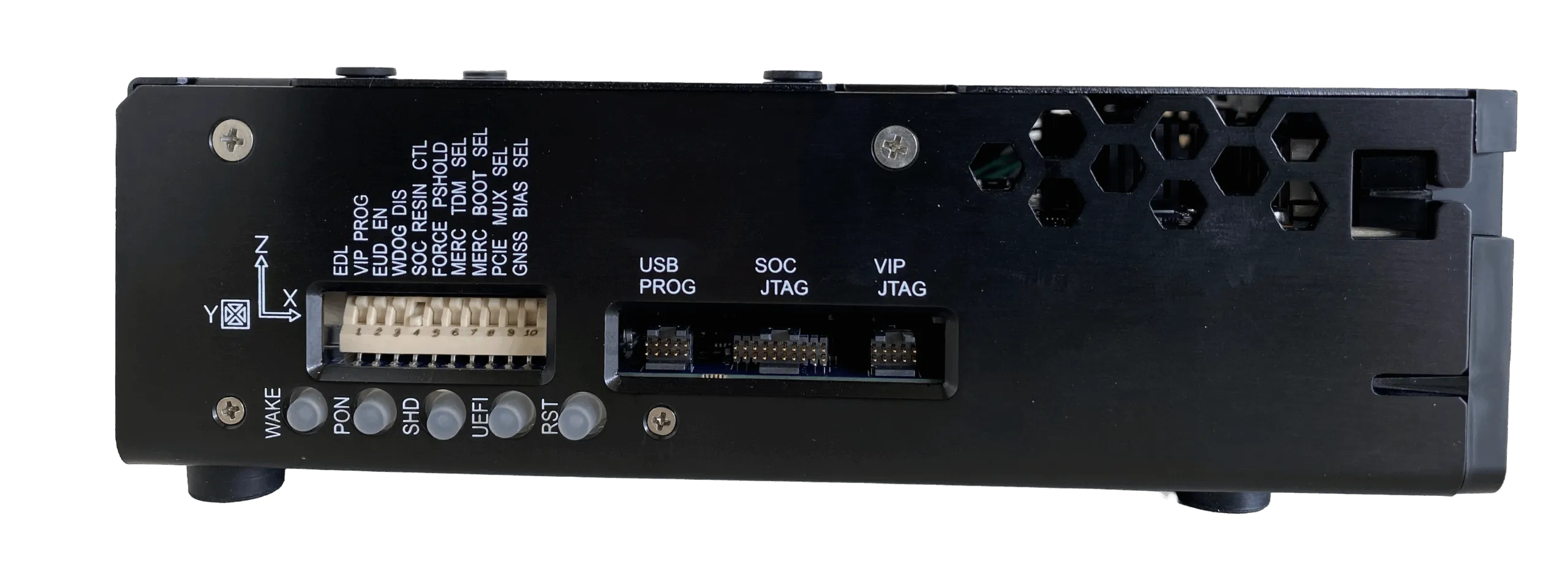

Test and Debug

  • JTAG: SoC, VIP
  • USB debug UARTs
  • Test automation

Connectivity

  • Wi-Fi 6 (802.11ax) + Bluetooth 5.2 Dual MAC MIMO + MIMO (QCA6696)
  • Dual-band dual-MAC radios for concurrent 2×2 MIMO 2.4GHz + 2×2 MIMO 5GHz operation
    Combined simultaneous maximum PHY rate of 1774Mbps
  • 1x 1000 BaseT1
  • 2x 100 BaseT1

Note: 1000BASE-T Ethernet PHY (U10) and port (J3) are not populated.

I/O

  • 4x CAN-FD
  • 2x LIN

Sensors

  • Gyro, Accelerometer – ASM330LHH
  • Magnetometer – AK09917D

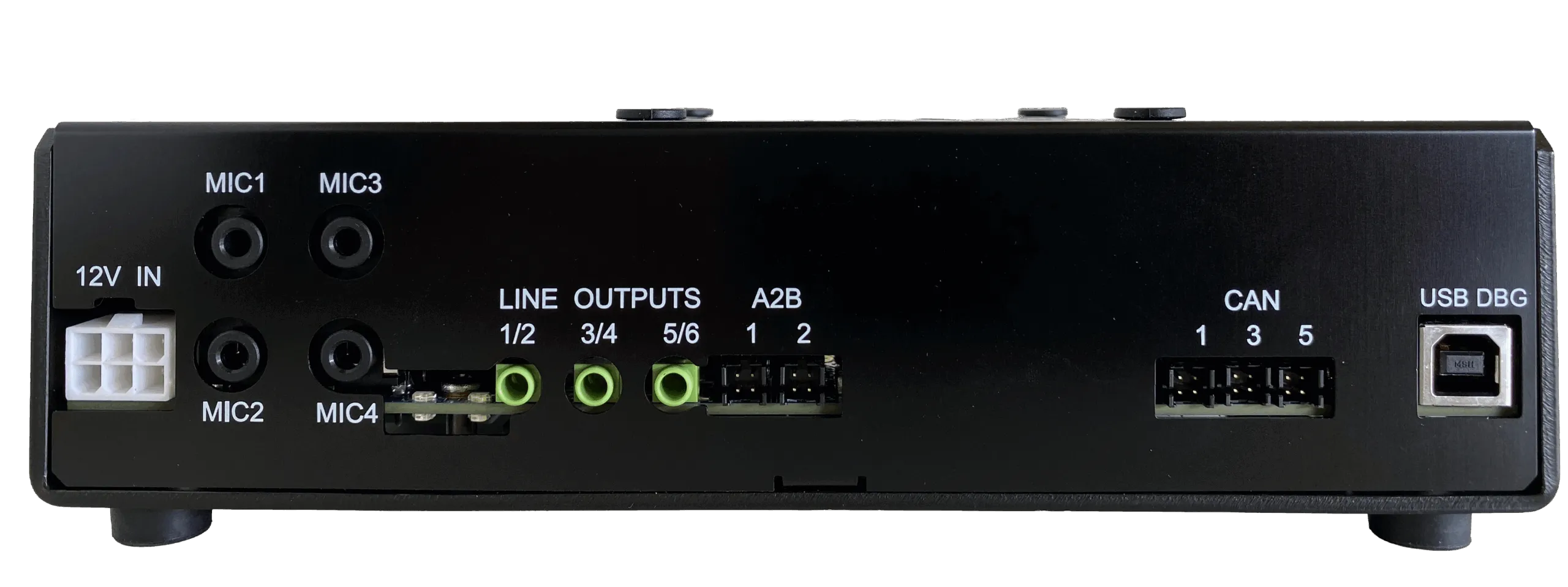

Audio

  • Six Class D Amplifier Analog OUT
  • Four Analog/MIC Inputs
  • Two A2B

OS Support

  • Linux Kernel v5.4, Yocto Project baseline 3.1
TAA Compliant

Select parts are TAA Compliant

Lantronix Part # Name Description Order Now
Sorry, no parts were found that match that search query.
Lantronix Part #
ADP-8295-IVI
Name
SA8295P Automotive Development Platform

SA8295P Snapdragon™ ADP based on the Qualcomm® Snapdragon™ Automotive chipset

Buy Now
Lantronix Part #
ADP-8295-IVI-T
Name
SA8295P Automotive Development Platform with Thermal Enclosure Configuration
ADP with Thermal Enclosure Configuration, TAA Compliant Buy Now
Lantronix Part #
ADP-8295-C
Name
SA8295P ADP GMSL2 AR0231 Camera Accessory with Quad HFM Cable

Camera Accessory with Quad HFM Cable

Buy Now
