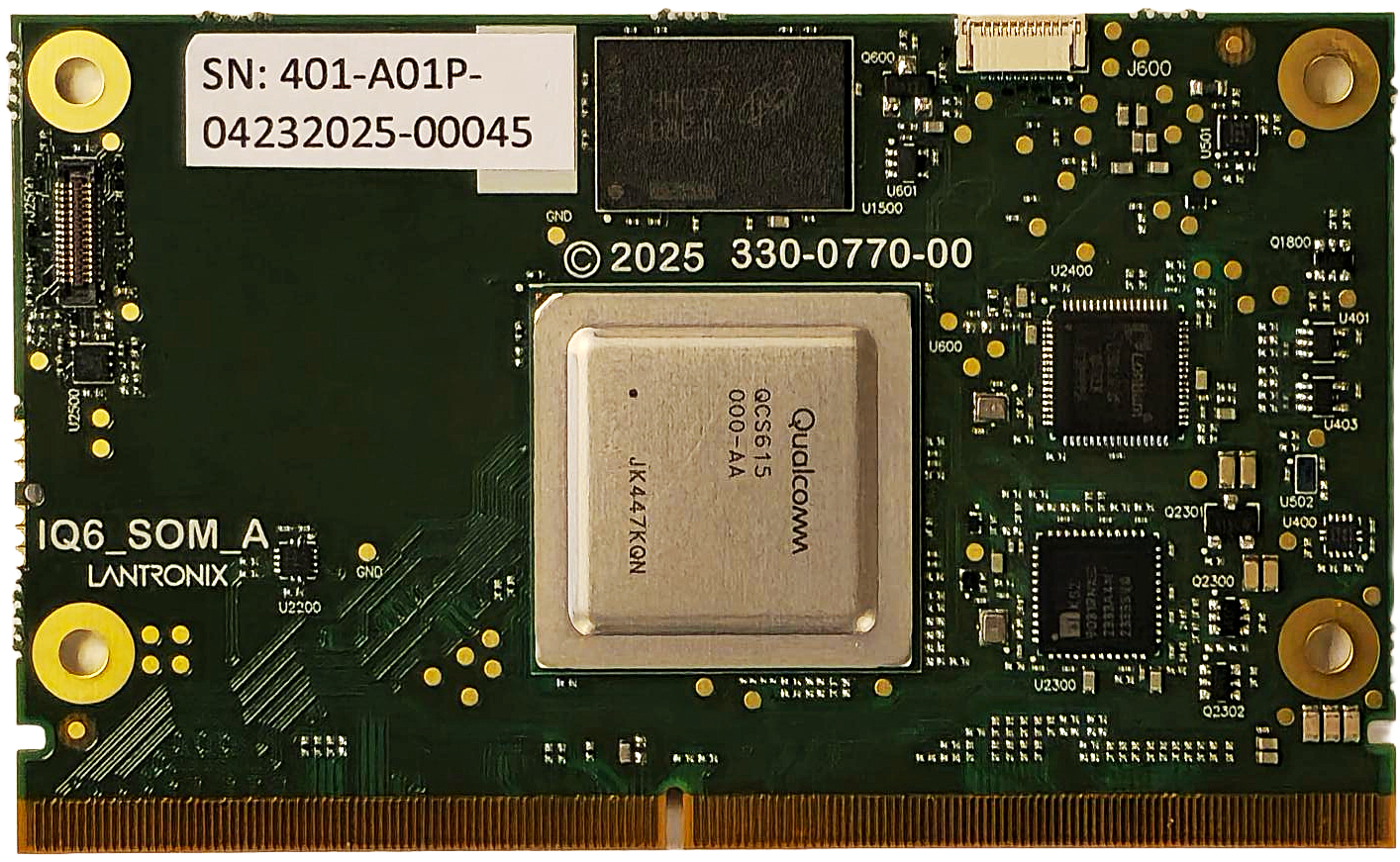

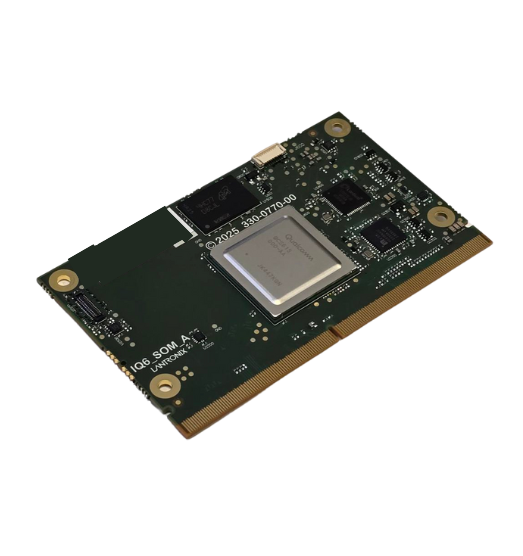

Open-Q™ 615IQ SMARC SOM (System on Module)

Based on Qualcomm® Dragonwing™ IQ-615 System-on-Chip

The Open-Q™ 615IQ is based on the Qualcomm® Dragonwing™ IQ-615 processor, which features Qualcomm’s powerful image signal processor (ISP) and a heterogeneous computing architecture. The IQ-615’s ability to operate in wide thermal junction temperatures ranging from -40℃ to +105℃ makes the Open-Q™ 615IQ ideally suited for many industrial-grade use cases, including industrial gateways, controllers, smart controllers, industrial HMIs, and more.

NDAA CompliantTAA Compliant
Overview

Lantronix offers TAA and NDAA compliant products with at least 10 years of longevity for the Open-Q™ 615IQ. Combined with over 20 years of hardware design and software development experience, and 1200+ successful projects, Lantronix will be your long-term partner, ensuring the ongoing success of your product journey.

Features

  • Qualcomm® Dragonwing™ IQ-615 SoC
  • Up to 8GB LPDDR4x RAM
  • Up to 128GB UFS with SDIO storage support
  • SMARC form factor
  • Qualcomm Linux
  • Industrial temperature availability
  • Customizable memory and storage options
Engineering Services
Engineering Services

Lantronix leverages our unparalleled engineering expertise and product development best practices to deliver high quality, innovative products, cost-effectively, and on time.

Learn More

Specifications
  • Qualcomm® Dragonwing™ IQ-615 SoC

    • Qualcomm® Kryo™ 460: 2x Gold @ 1.9GHz, 6x Silver @ 1.6GHz
    • Qualcomm® Hexagon™
    • Qualcomm® Adreno™ 612 GPU
    • Qualcomm® Spectra™ ISP
    • Qualcomm® Adreno™ Display Processing unit
    • Trust Zone, Cryptographic Accelerator
  • Memory/Storage

    • Up to 8GB LPDDR4x @ 1555MHz
    • Up to 128GB UFS with SDIO storage support
  • Wireless

    • Wi-Fi 6 802.11a/b/g/n/ac/ax Dual band 1×1 + Bluetooth 5.2
  • Display Interfaces

    • 1x 4-lane MIPI DSI D-PHY 1.2, up to FHD+ touchscreen support
    • DisplayPort v1.4 at 5.4 Gbps/lane, 21.6 Gbps/port with support for multi stream transport (MST)
  • Camera Interfaces

    • 1x MIPI 2-lane CSI D-PHY 1.2 with CCI I2C control
    • 2x MIPI 4-lane CSI D-PHY 1.2 with CCI I2C control
    • Qualcomm Spectra 230 supports Bayer RGB, YUV, RCCB, Mono, and it also features improved zzHDR
  • Video Performance

    • Decode
      • Video decode up to 4K60. Native decode support for H.265 main 10, H.265 main, H.264 high, VP9 profile 2, VP8, and MPEG-2 codecs
    • Encode
      • Video encode up to 1080p60. Native encode for H.265 main, H.264 high, and VP8 codecs
    • Decode & Encode
      • Concurrent 4K30 Decode and 1080p60 Encode
  • Audio

    • The hexagon digital signal processor (DSP) targets up to 1 GHz and with a 512 KB L2 cache
    • Qualcomm® Voice Activation
    • Voice codecs and audio codecs
  • High Speed Connectivity

    • 1x PCIe Gen2 1-lane
    • 1x USB 3.1, 4x USB 2.0
  • I/O Interfaces

    • 4-bit SD 3.0, UART, I2C, SPI, SPI, configurable GPIOs
  • Power/Battery

    • Power management on SOM
  • Operating Environment

    • Input voltage
      • 5V
    • Operating Temperature
      • -40℃ to 85℃ available
  • Form Factor

    • SMARC
      • 82 x 50 mm
  • OS Support

    • Qualcomm Linux

* Based on IQ615 Chipset Performance, see SOM Release Notes for details on tested configurations and platforms.

Specifications are subject to change without notice. Not all features listed may be supported in software. All brand or product names are trademarks or registered trademarks of their respective owners. Open-Q is a trademark of Lantronix, Inc. Qualcomm and Qualcomm Dragonwing are trademarks or registered trademarks of Qualcomm Incorporated. Qualcomm QCS6490, Qualcomm Adreno, Qualcomm Hexagon, Qualcomm Kryo, Qualcomm Spectra and Qualcomm AI Engine are products of Qualcomm Technologies, Inc. and/or its subsidiaries. Qualcomm, Adreno, Hexagon, Kryo and Spectra are trademarks of Qualcomm Incorporated, registered in the United States and other countries. Kryo, Spectra and IZat are trademarks of Qualcomm Incorporated. Used with permission. Lantronix and Open-Q and their respective logos are trademarks, registered and otherwise, of Lantronix Corporation in Canada, European Union, Taiwan, United States of America and other jurisdictions.

Part Numbers
Part Number Name Description
QC0615-3AN-DN Open-Q™ 615IQ SMARC Open-Q™ 615IQ SMARC (8GB/128GB) Contact Us
QC0615-3WN-BL Open-Q™ 615IQ SMARC Open-Q™ 615IQ SMARC (4GB/64GB), with WiFi/BT Contact Us
QC0615-3WN-BLT Open-Q™ 615IQ SMARC Open-Q™ 615IQ SMARC (4GB/64GB), with WiFi/BT, TAA Contact Us
QC0615-3WN-DL Open-Q™ 615IQ SMARC Open-Q™ 615IQ SMARC (8GB/64GB), with WiFi/BT Contact Us
QC0615-3WN-DLT Open-Q™ 615IQ SMARC Open-Q™ 615IQ SMARC (8GB/64GB), with WiFi/BT, TAA Contact Us
QC0615-3WN-DN Open-Q™ 615IQ SMARC Open-Q™ 615IQ SMARC (8GB/128GB), with WiFi/BT Contact Us
QC0615-3WN-DNT Open-Q™ 615IQ SMARC Open-Q™ 615IQ SMARC (8GB/128GB), with WiFi/BT, TAA Contact Us
LOQ-615IQ-EVK Open-Q 615IQ Development Kit Open-Q™ 615IQ devkit bundle with 8GB/64GB SOM and accessories Contact Us
Related Products
New
Supporting the Open-Q™ 615IQ System on Module (SOM)
Resources
Product Brief

Additional technical documentation and firmware information can be found at Tech Portal HERE
