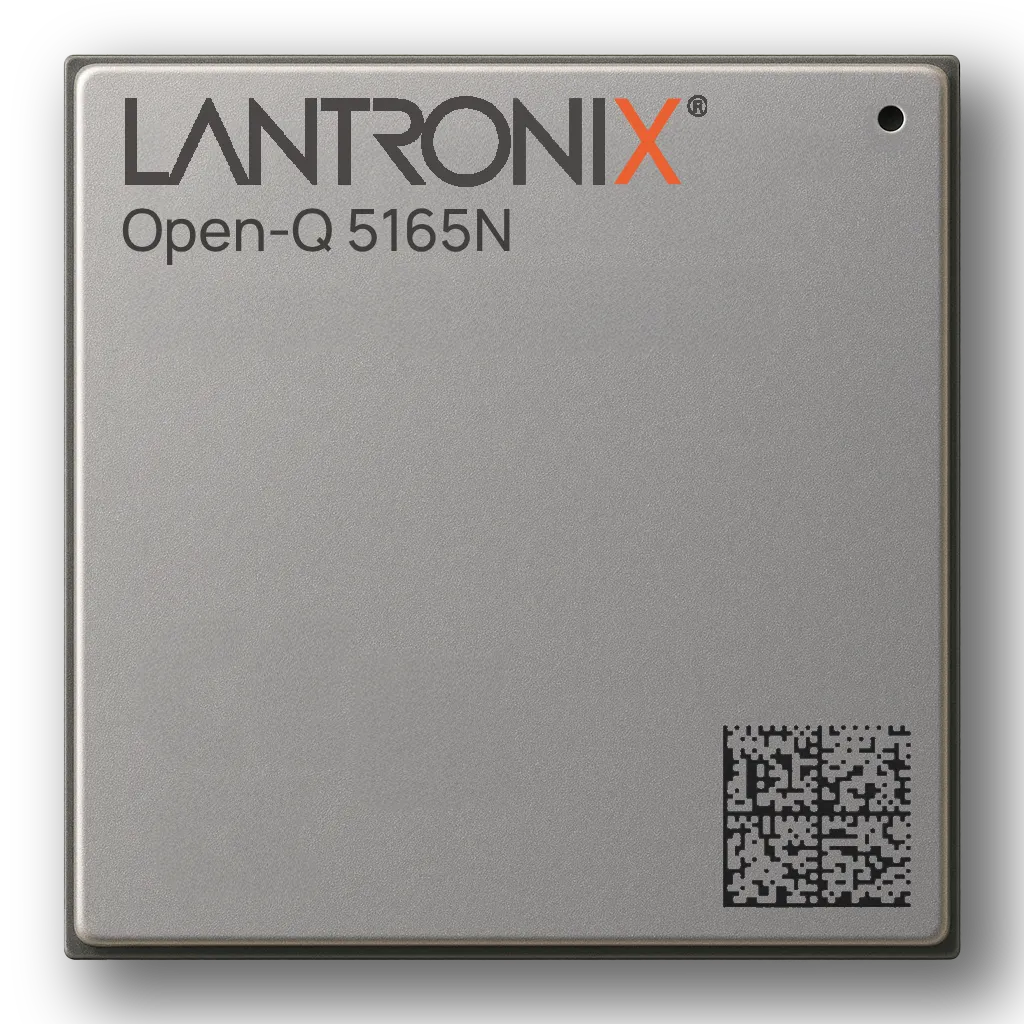

Open-Q™ 5165N SOM

Based on Qualcomm® Dragonwing™ QRB5165N System-on-Chip with Ubuntu Linux OS

Product Brief Request a Demo

Key Features

SOM with powerful specialized processing cores
On-device Qualcomm®AI Engine for machine vision, neural networks, deep learning
Power-efficient edge AI computing solution pushing 15 TOPS
Ubuntu 04 Linux with support for Robot Operating System 2.0
Container and accelerator APIs – Docker, TensorFlow Lite, NNAPI and others

Open-Q™ 5165N SOM Overview

The Open-Q™ 5165N SOM is a LGA (54mm x 45mm) production-ready computing module based on the powerful Qualcomm® Dragonwing™ QRB5165N System-on-Chip. The QRB5165N utilizes Qualcomm Technologies’ heterogenous compute expertise to provide an SoC with multiple specialized processing cores such as the 5th generation AI Engine, hardware video analytics engine, Qualcomm Spectra™ ISP, Qualcomm Adreno™ GPU, and Qualcomm Hexagon™ DSP. Supporting Wi-Fi 6 connectivity (external), advanced camera features, and high-speed interfaces, the 5165N SOM creates the perfect computing core for a variety of leading-edge robotics applications. Along with the companion development kit, advanced robotics-focused OS and SDKs, and available accessories, it will accelerate your time to market for innovative new products requiring the highest AI processing performance in low-power embedded situations.

Applications

Advanced Robotics –industrial/medical/defense
AI-enabled Drones and UAVs
Machine vision platforms
AI processing gateways
Face detection and recognition
Deep learning and neural network processing
Autonomous systems

Key Features

Qualcomm® Dragonwing™ QRB5165N SoC – long life IIoT chipset
8GB LPDDR5 RAM
Ubuntu 18.04 Linux
On-device AI Engine up to 15 TOPS
Dedicated Computer Vision Engine
Multiple MIPI camera and display ports
Multiple high speed connectivity options
LGA 54 x 45 mm form factor

Case Studies

Robotics

Lantronix Powers U.S. Army-Compliant Drones for Teal Drones, a Red Cat Holdings Company

Lantronix Powers U.S. Army-Compliant Drones for Teal Drones, a Red Cat Holdings

Learn More

Robotics

Lantronix Powers Next-Gen Drone OEM Innovation with Edge AI in Collaboration with Teledyne FLIR OEM & Gremsy

Lantronix provides drone OEMs with high-performance Open-Q™ System on Module (SOM) solutions, featuring Qualcomm® processors to enable advanced onboard Edge AI and autonomous navigation. By delivering TAA- and NDAA-compliant technology, Lantronix helps manufacturers accelerate the development of next-generation UAVs that offer extended flight times, real-time data processing, and superior mission reliability.

Learn More

Open-Q™ 5165N SOM Tech Specs

Processor

Qualcomm® Dragonwing™ QRB5165N SoC built on 7nm technology:
- Kryo™ 585 Octa-core CPU: 1 Kryo Gold prime @ 2.84 GHz + 3 Kryo Gold @ 2.42 GHz + 4 Kryo Silver @ 1.81 GHz
Hexagon™ 698 DSP with quad Hexagon Vector eXtensions
Adreno™ 650 GPU @ Fmax = 670 MHz
Spectra™ 480 Image Signal Processor
Adreno™ 665 Video Processing unit
Adreno™ 995 Display Processing unit
NPU230 Neural Processing unit
SPU240 Secure Processing unit

Memory/Storage

8GB LPDDR5, external UFS 1x 2-lane, 1x 1-lane

Wireless

Supports external 802.11ax 2×2 MU-MIMO + Bluetooth 5.1

Display Interfaces

Up to three 4K displays (1 internal display through DSI and 2 external displays through DisplayPort)
2x 4-lane MIPI DSI D-PHY 1.2, up to 5040 × 2160 @ 60 fps (or 120 Hz in VR mode) + touchscreen support
DisplayPort v1.4 on USB Type-C, at 8.1 Gbps/lane, with USB3 and USB2 data concurrency

Camera Interfaces

6x 4-lane MIPI CSI camera ports + CCI I2C control
Spectra 480 ISP supporting multiple concurrent cameras
64 MP 30 fps ZSL with a dual ISP

Video Performance

Decode up to 4K240/8K60
Encode up to 4K120/8K30
Concurrent 4K60 decode & 4K30 encode for wireless display

Audio

Supports WCD938x high fidelity audio codec and WSA881x speaker amp on carrier board
Dedicated Hexagon™ audio DSP
SoundWire, MI2S, DMIC, TDM/PCM interfaces for audio devices on carrier board

High Speed Connectivity

2x PCIe Gen3 2-lane, 1x PCIe 1-lane
1x USB3.1 with support for Type-C + DisplayPort v1.4 with USB SS data concurrency
1x USB 3.1 Type-A

Operating Environment

Input voltage: 3.7V nominal
Operating Temperature: -25°C to +85°C Tc (component case temperature)

Power/Battery

Power management and battery charging solution on SOM

Form Factor

54mm x 45mm LGA 829 pads

Software

Ubuntu Linux OS
- Ubuntu 18.04

On-device Dev Tools
- LLVM compiler, Python v2.7.5, Git, Perl, GCC, GDB

Artificial Intelligence
- Support for TensorFlow Lite, Qualcomm Neural Processing SDK, Computer Vision SDK, Neural Networks API

Robotics Specific
- Robot Operating System (ROS2) support

I/O Interfaces

4-bit SD 3.0, UART, I2C, I3C, SPI, configurable GPIOs, sensor I/O to dedicated Hexagon™ sensor DSP

Specifications are subject to change without notice. Not all features listed may be supported in software. All brand or product names are trademarks or registered trademarks of their respective owners. Qualcomm and Qualcomm Dragonwing are trademarks or registered trademarks of Qualcomm Incorporated. Qualcomm Snapdragon, Qualcomm Kryo, Qualcomm Spectra, Qualcomm Adreno, Fluence and Qualcomm Hexagon are products of Qualcomm Technologies, Inc. Qualcomm IZat is a product of Qualcomm Atheros, Inc. Qualcomm, Snapdragon, Adreno, Fluence and Hexagon are trademarks of Qualcomm Incorporated, registered in the United States and other countries. Kryo, Spectra and IZat are trademarks of Qualcomm Incorporated. Used with permission.

Lantronix and Open-Q and their respective logos are trademarks, registered and otherwise, of Lantronix Corporation in Canada, European Union, Taiwan, United States of America and other jurisdictions.

Open-Q™ 5165N SOM Downloads

Product Brief

Open-Q 5165N SOM Product Brief (A4)

304 KB

View

Open-Q 5165N SOM Product Brief

302 KB

View

Additional Product Information

Additional technical documentation and firmware information can be found at Tech Portal HERE

Open-Q™ 5165N SOM Part Numbers

Lantronix Part #	Name	Description	Order Now
Sorry, no parts were found that match that search query.

QC-SOM-5165N-A	Open-Q™ 5165N SOM	Open-Q™ 5165N SOM (8GB)	Contact Us
