New

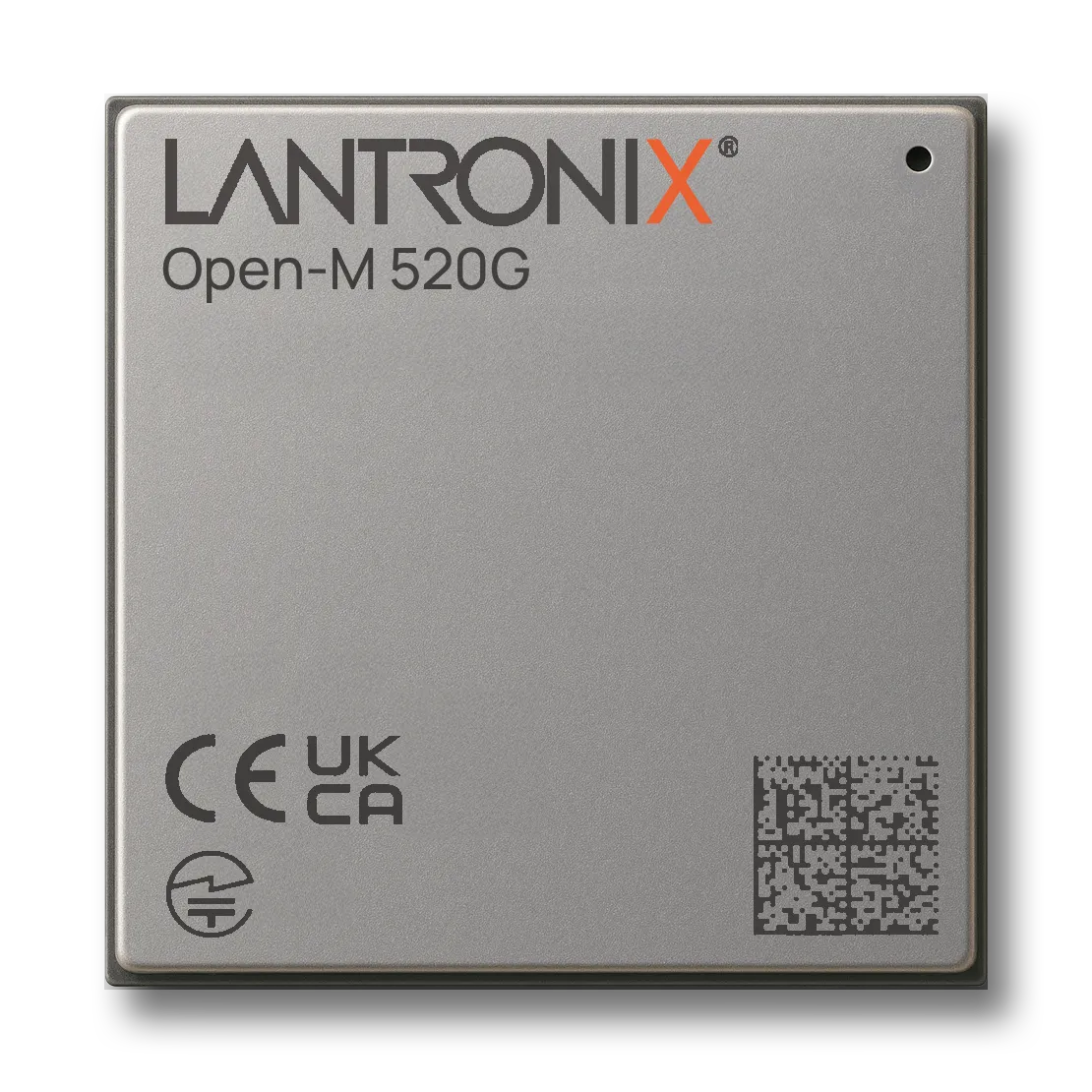

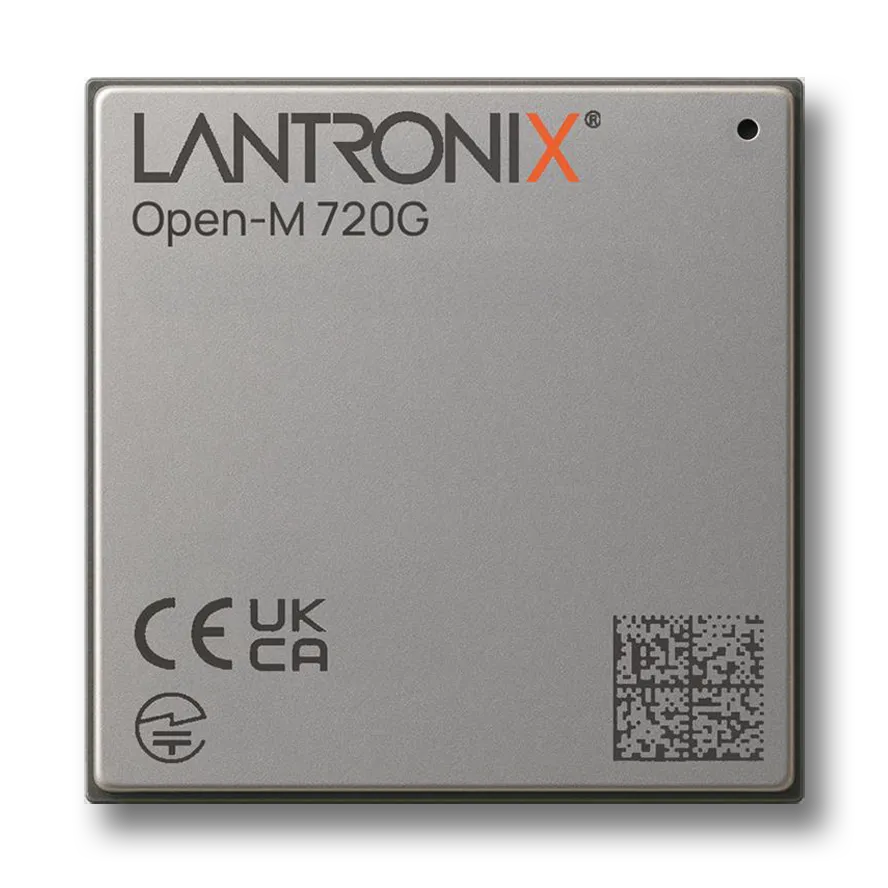

Open-M™ 720G/520G SOM (System on Module)

Based on MediaTek Genio 720 and Genio 520 System-on-Chip

Ideal for IoT+AI Applications

The Open-M™ 720G and 520G System on Modules are the newest platforms from Lantronix offering an AI performance of 10 TOPs, powerful 8-core processors, robust video/imaging processing capabilities, and flexible multi-display options. Based on MediaTek Genio 720 and Genio 520 SoC, the Open-M 720G and 520G are designed for Edge IoT applications demanding efficient, low-power execution of Vision AI and GenAI tasks.

Product Brief Sign Up for Updates!

Overview

Built on 6nm technology, the Genio 720 and Genio 520 SoCs deliver best-in-class NPU and CPU power efficiency. They support the NVIDIA TAO framework for broader development compatibility across the ecosystem, offer multiple display and codec features for IoT multimedia applications, and include a rich set of peripherals tailored for industrial IoT.

Lantronix offers TAA and NDAA compliant products with at least 10 years of longevity for the System on Modules, with strict Bill-of-Material and quality control. Combined with over 20 years of hardware design and software development experience, and 1200+ successful projects, Lantronix will be your long-term partner, ensuring the ongoing success of your product.

Key Features

MediaTek Genio 720 and Genio 520 SoC
MediaTek Deep Learning Accelerator supporting GenAI, Image Searching and Segmentation
Efficient Power (< 4W)
Advanced Multimedia for Dual Displays and 4K Resolution
Multi-OS, long-life support

FOCUS APPLICATIONS

Industrial and agricultural drones

Smart security cameras

Industrial IoT & HMIs

Video conferencing and Smart Displays

Autonomous Mobile Robots and Warehouse automation

Engineering Services

Lantronix leverages our unparalleled engineering expertise and product development best practices to deliver high quality, innovative products, cost-effectively, and on time.

Learn More

Specifications

Processors
- Genio 520: MT8371 6nm
  - 2x Arm Cortex A78 2.2GHz, 6x Arm Cortex A55 2.0GHz
- Genio 720: MT8391 6nm
  - 2x Arm Cortex A78 2.6GHz, 6x Arm Cortex A55 2.0GHz
- Arm Mali G57 MC2 880 MHz
  - MediaTek 8th Gen NPU 10 TOPS
- Arm Mali G57 MC2 1.1GHz
  - MediaTek 8th Gen NPU 10 TOPs
Memory/Storage
- 4GB LPDDR5x + 64GB UFS
- 8GB LPDDR5x + 64GB UFS
Wireless
- Option for Wi-Fi 6/6E + Bluetooth 5.x
Display Interfaces
- 4-lane MIPI DSI, 4-lane eDP, 4-lane DP (multiplexed from USB3.0), 4-lane LVDS (multiplexed from DSI)
- Single display: 5120 x 2160 @ 60 fps, or 3840 x 2160 @ 60 fps, 2560 x 1600 @ 120 fps
- Dual displays: 2560 x 1600 @ 60 fps
- Supports capacitive touch panel controlled by I2C
Camera Interfaces
- 2x 4-lane MIPI-CSI, up to 2.5 Gbps/lane, single camera, single ISP, up to 16 MP
- 2x 4-lane MIPI-CSI, up to 2.5 Gbps/lane, supports 2 cameras, dual ISP, up to 16 MP + 16 MP @ 30 fps camera
Video Performance
- Decode
  - 4k @ 60 fps (H.265, H.264)
  - MPEG4/VP8 (FHD60)
- Encode
  - 4K @ 30 fps (H.265, H.264, VP9)
Audio
- 3 analog input: MIC0, MIC1 (earpiece), MIC2
- 3 analog output: Line-out, earpiece, headphone
High Speed Connectivity
- 1x PCIe Gen2 1-lane
- 1 GbE Ethernet
I/O Interfaces
- 3x USB3.2, 3x USB2.0, 4x UART, SD Card, SDIO, ADC, PCM, I2C, I2S/PCM, SPI, GPIOs
Power/Battery
- Power management and battery charging solution on SOM
Operating Environment
- Input voltage: 3.7V nominal
- Operating Temperature: -35°C to +75°C
Form Factor
- 43 x 44 x 2.95 mm LGA SOM
Software:
- OS Support
  - Android™ 15 / Yocto Linux / Ubuntu* (*In roadmap)

© 2026 Lantronix, Inc. All rights reserved. Lantronix is a registered trademark of Lantronix, Inc. in the U.S. and other countries. Open-M is a trademark of Lantronix, Inc. Mediatek and Genio are trademarks or registered trademarks of Mediatek. MediaTek Genio 720 is a product of Mediatek. and/or its subsidiaries. All other trademarks are the property of their respective owners. Specifications subject to change without notice. Not all features listed may be supported in software.

Resources

Product Brief

No matches were found for that search.

Open-M 520G and 720G SOM Product Brief (A4)

586 KB

View

Open-M 520G and 720G SOM Product Brief

586 KB

View

Additional technical documentation and firmware information can be found at Tech Portal HERE

Part Numbers

Filter by type:


Part Number	Name	Description
MT0520-1WN-BL	Open-M 520G SOM	4GB LPDDR5x, 64GB UFS, Wi-Fi SOM	Buy Now
MT0720-1WN-DL	Open-M 720G SOM	8GB LPDDR5x, 64GB UFS, Wi-Fi SOM	Buy Now
LOM-720-EVK	Open-M 720G SOM Development Kit	Open-M 720G SOM Development Kit	Buy Now
