Processor
- Qualcomm® Oryon™ (SM8750P)
- 3nm
- 64-bit architecture
- 2 Prime core, up to 4.32 GHz
- 5 Performance cores, up to 3.53 GHz
Artificial Intelligence
- Qualcomm® Hexagon™ NPU
- Qualcomm® Sensing Hub
- Support for mix precision (INT8+INT16)
- Support for all precisions (INT4, INT8, INT16, FP16)
Visual Subsystem
|
5G Modem-RF System
- Snapdragon® X80 5G Modem-RF System
- 5G Advanced-ready, 5G mmWave and sub-6 GHz, 5G standalone (SA) and non-standalone (NSA) modes, standalone mmWave and mmWave-sub-6 dual connectivity, FDD, TDD
- Downlink: Up to 10 Gbps
- Uplink: Up to 3.5 Gbps
- mmWave: 8 carriers, 2×2 MIMO
- 3GPP Release 17 and Release 18 support
- 6xCA Downlink
- 6-antenna support (6 Rx for 4×6 MIMO)
- Multimode support: 5G NR, NR-DC, EN-DC, LTE, CBRS, WCDMA, LAA, GSM/EDGE, Dynamic Spectrum Sharing (DSS)
Wi-Fi, Bluetooth®, UWB
- Qualcomm® FastConnect™ 7900 Mobile Connectivity System
- Wi-Fi 7; peak speed 5.8 Gbps
- 802.11be, 802.11ax, 802.11ac, 802.11a/b/g/n 2.4/5.0/6.0 GHz, 8×8 MU-MIMO (UL/DL)
- Integrated Bluetooth® 6.0, LE Audio, dual Bluetooth antennas
- Integrated Ultra Wideband (UWB): IEEE 802.15.4z, FiRA, CCC
More details in the product brief.
|
Memory/Storage
- Support up to 24GB LPDDR5x memory, up to 5300 MHz
- Support UFS4.0 Flash Storage
|
Security
- Trust Management Engine along with Platform Security Foundation
- Secure Processing Unit
- Qualcomm® wireless edge services (WES) for secure attestation and provisioning
- Qualcomm® 3D Sonic Sensor and Qualcomm 3D Sonic Max (fingerprint sensor)
More details in the product brief. |
Audio
- Snapdragon Sound™ Technology Suite
|
Video
- Video capture HDR formats: HDR10+, HDR10, HLG, Dolby Vision
- 4K Video Capture @ 120 FPS
- 8K Video Playback @ 60 FPS
- Slow-mo video capture at 1080p @ 480 FPS
More details in the product brief.
|
Display
- On-device display support: 4K @ 60Hz, QHD+ @ 240Hz
- Maximum external display support: Up to 8K @ 30Hz; Up to 1080 @ 240 Hz, 10-bit color depth, Rec. 2020 color gamut
- HDR10, HDR10+, HDR vivid, and Dolby Vision
|

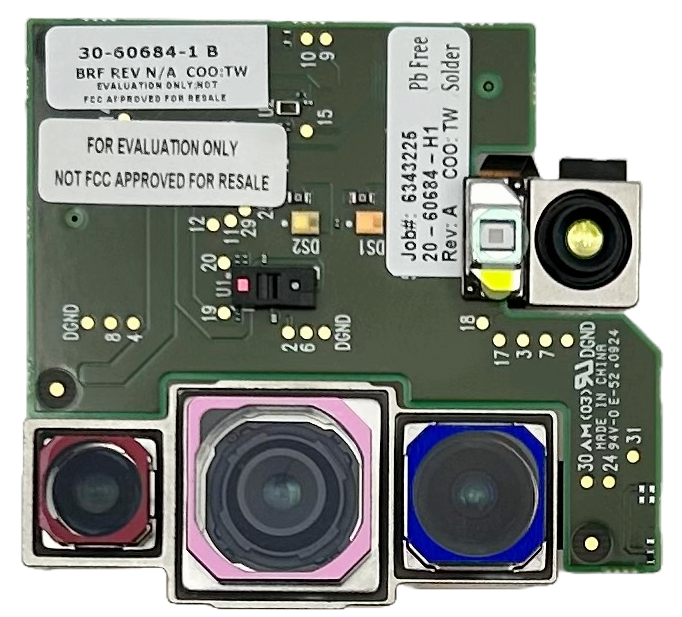

Camera
- Qualcomm Spectra™ Image Signal Processor: AI-ISP, Triple 18-bit ISPs
- AI-based face detection, AI for 3A (auto-focus, autoexposure,
and auto-white balance)
- Up to 48MP triple camera @ 30 FPS with Zero Shutter Lag
- Up to 108 MP single camera @ 30 FPS with Zero Shutter Lag
- Up to 320 MP Photo Capture
- Truepic photo capture with C2PA-compliant certificate authority
More details in the product brief.
|

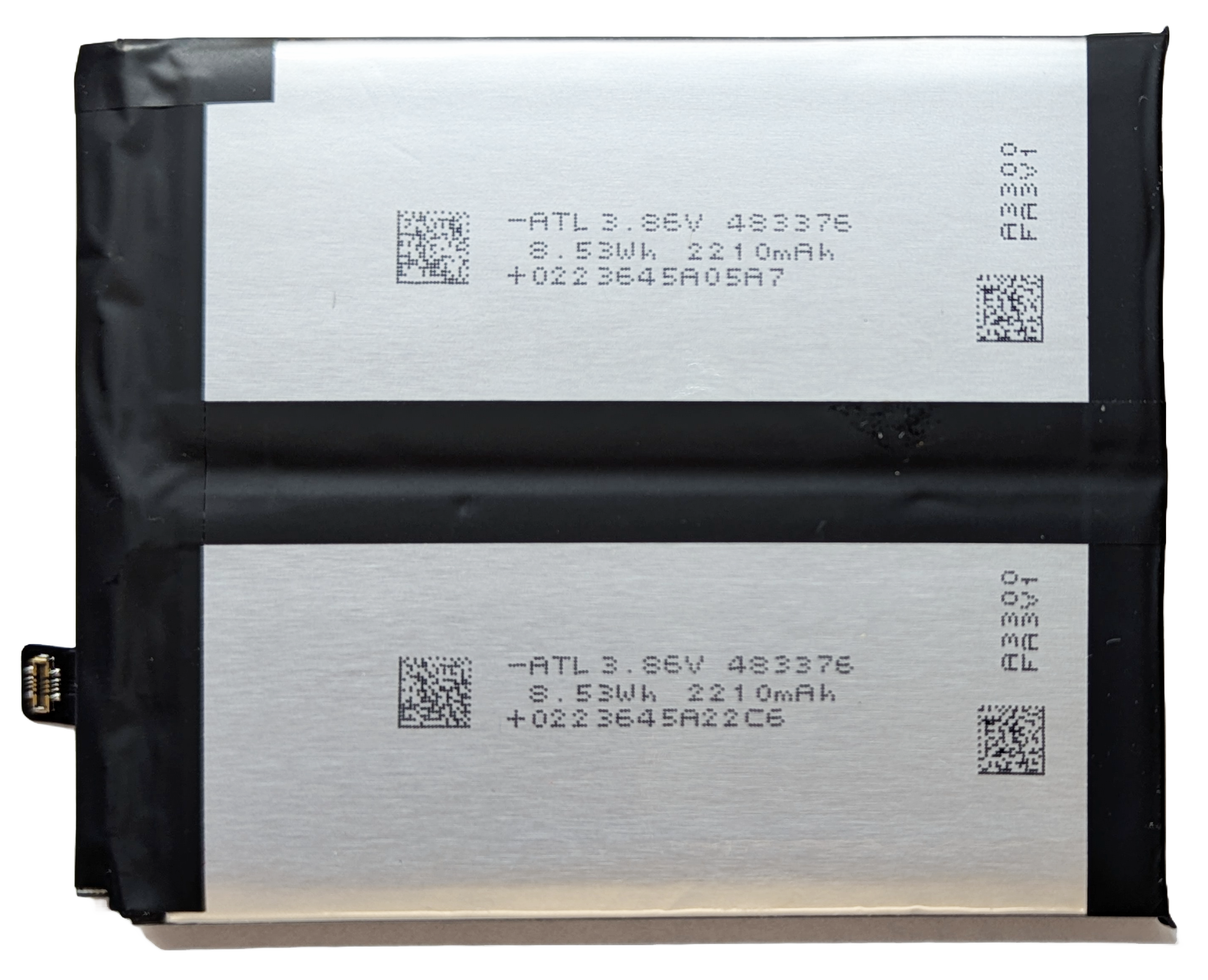

Power
- 12V/5A input from wall adapter (included), or battery
- Qualcomm® Quick Charge™ 5 technology
|
Location
- Concurrent GPS, Glonass, BeiDou, Galileo, QZSS, NavIC
- Triple frequency GNSS (L1/L2C/L5)
- AI-based GNSS Location Gen 3
- Sensor-Assisted Position 6.0
- Urban pedestrian navigation with sidewalk accuracy
- Global freeway lane-level vehicle navigation
|
|
|
OS Support
|
