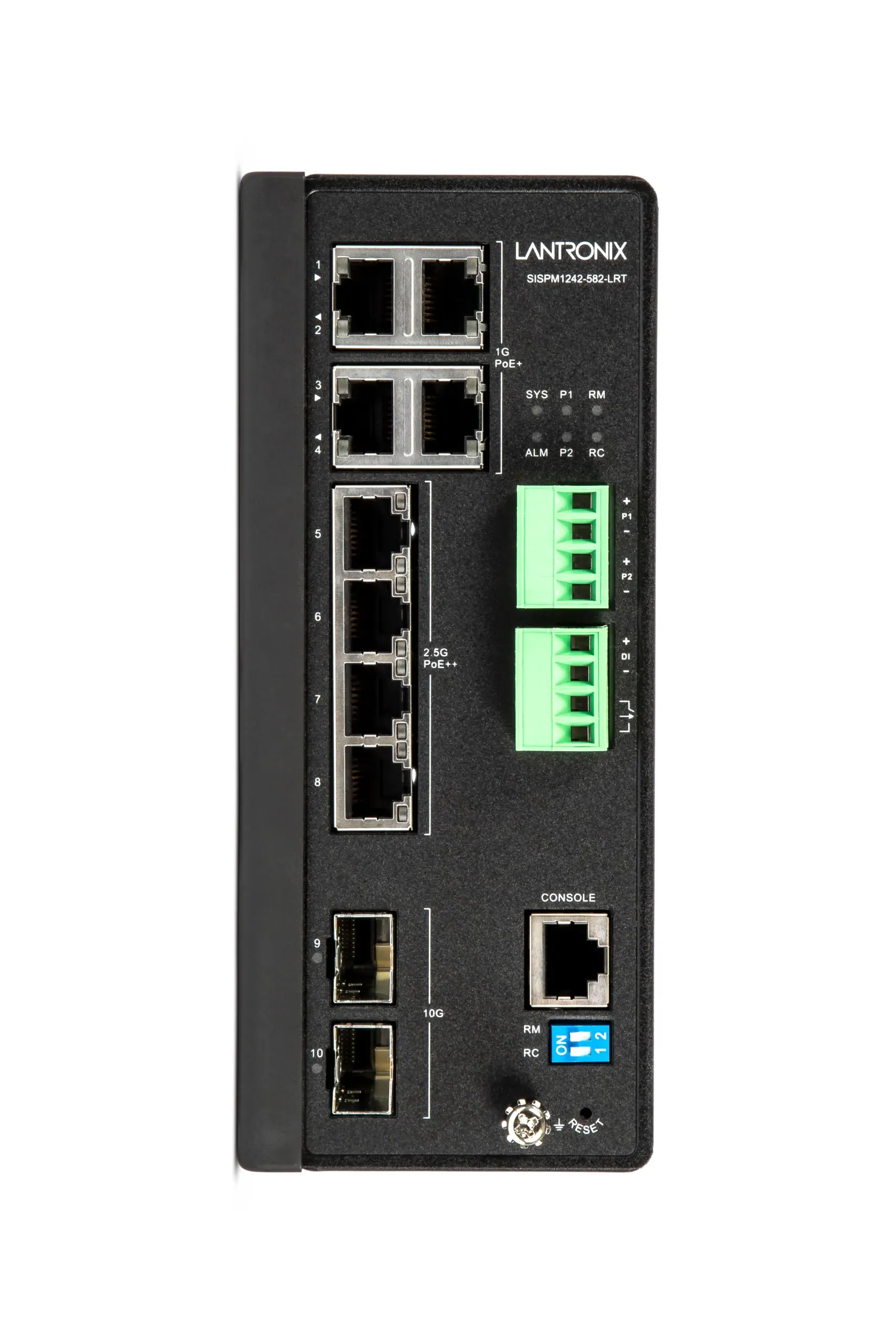

SISPM1242-582-LRT

New

The SISPM1242-582-LRT is a rugged, managed multi-gigabit PoE++ switch built to power and connect next-generation devices in harsh environments. With advanced power delivery of up to 90W per port and a total PoE budget of 360W, it supports high-bandwidth applications such as PTZ cameras, digital signage, wireless access points, and smart lighting.

Engineered for reliability, it is certified to operate from -40°C to +75°C, making it ideal for mission-critical deployments in transportation, security, industrial automation, and outdoor environments. Its integrated Lantronix Device Management System (DMS) streamlines network management, reduces downtime, and ensures lower total cost of ownership.

Features

• IEEE 802.3bt/at/af compliant – Supports PoE++, PoE+, and standard PoE to power a wide range of devices.
• Up to 90W per port – Delivers sufficient power for demanding devices such as PTZ cameras, LED lighting, digital signage, and high-performance APs.
• 360W PoE budget – Supports PoE++ on (4) ports and PoE+ on all (8) ports.
• Always-on PoE – Ensures uninterrupted device operation during switch reboots or firmware upgrades.
• Auto Power Reset (APR) – Automatically monitors connected devices and resets them if they stop responding, reducing truck rolls.
• PoE Scheduling – Allows administrators to set power availability by port, day, or time, contributing to energy efficiency.
• LLDP-MED configuration – Simplifies device discovery and dynamic PoE allocation.

• (4) 10/100/1000 Mbps ports – Standard gigabit connections for common devices.

• (4) 100M/1G/2.5G RJ-45 PoE++ ports – Multi-gigabit capability supports next-gen Wi-Fi 6 APs and UHD cameras.

• (2) 1G/10G SFP+ slots – High-speed uplinks for aggregation or backbone connectivity.

• Switching capacity of 68 Gbps – Ensures wire-speed forwarding with no bottlenecks.

• 16K MAC address table – Supports large and complex networks.

• Store-and-forward switching – Provides reliable packet handling and error checking

• Management options – Web GUI, CLI, SSH, SNMP v1/v2c/v3.

• Link aggregation – IEEE 802.3ad LACP trunking for increased bandwidth and redundancy.

• Multicast support – IGMP snooping v1/v2/v3, MVR, and MLD snooping v1/v2 for efficient video distribution.

• Quality of Service (QoS) – 8 hardware queues with classification, rate limiting, and scheduling to prioritize critical traffic.

• Security features:

  • ACLs (512 entries)

  • Port security

  • IP Source Guard

  • Storm control

  • 802.1x authentication

  • RADIUS & TACACS+ integration

  • DHCP snooping

  • Loop protection

• VLAN support – Up to 4K VLANs, port-based, tag-based, QinQ, MAC-based, voice VLANs, and private VLANs.

• Firmware updates – Supported via TFTP and HTTP/HTTPS.

• Routing protocols – IPv4/IPv6 static routing, RIPv1/v2, OSPFv2/v3.

• Redundancy & timing – Media Redundancy Protocol (MRP), IEEE 1588v2 PTP, ITU-T G.8031/8032 ring protection, Rapid Ring recovery.
