CELLULAR BANDS (NTC-551)
-
5G NR Bands
- n2, n5, n7, n12, n13, n14, n25, n26, n29, n30, n38, n41, n48, n66, n71, n77, n78
-
4G LTE Bands
- B2, B4, B5, B7, B12, B13, B14, B17, B25, B26, B29, B30, B38, B41, B42, B43, B46, B48, B66, B71
|
-
GPS
-
CELLULAR
- Profile managed packet data connections
- Profile Routing
- Data Profile IP Passthrough
- SIM Security Management (PIN configuration, enable
- and disable)
- Automatic and manual cellular band selection
- Automatic and manual operator selection
- Configurable automatic SIM switching between external and optional internal SIM
- 5G and LTE Cell Lock
- Up to 6 APN configurations
- Up to 8 Bearers and Traffic Classes
|
CELLULAR BANDS (NTC-552)
-
5G NR Bands
- n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n75, n76, n77, n78
-
4G LTE Bands
- B1, B3, B5, B7, B8, B20, B28, B32, B38, B40, B41, B42, B43
|
-
WI-FI FUNCTIONS
- WLAN Protocol: IEEE 802.11a/b/g/n/ac/ax
- Wi-Fi Frequency: 2.4 GHz / 5 GHz
- Supported channel bandwidths:
- 20/40 MHz at 2.4 GHz
- 20/40/80 MHz at 5 GHz
- 2 × 2 Multi-User Multiple-Input Multiple-Output (MU-MIMO)
- Dual Band Simultaneous (DBS)
- Wi-Fi Modulation Mode: CCK/BPSK/QPSK/ 16QAM/64QAM/256QAM/1024QAM
- Encryption Mode: WPA3
- Wi-Fi Operating Mode: AP, STA, AP + STA
|
CELLULAR BANDS (NTC-552)
-
5G NR Bands
- n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n75, n76, n77, n78
-
4G LTE Bands
- B1, B3, B5, B7, B8, B20, B28, B32, B38, B40, B41, B42, B43
|
-
NETWORK & ROUTING
-
- Static Routing, RIP (v2), Port Forwarding and DMZ
- Dynamic DNS
- VRRP for redundant router failover
- DHCP Server including address reservation by MAC address
- Custom DNS server definitions
- DHCP list display in Web-UI
- Advanced DHCP Option configuration (Option 42 NTP, Option 66 TFTP)
- WAN Failover (Cellular, Ethernet, Wi-Fi Client)
- Data Stream Manager providing ability to create mappings between input and output ports (e.g. Serial Port, Ethernet) and perform required translation or data processing by each virtual tunnel
- Modbus Server TCP/IP Gateway, Client TCP/IP Agent and Serial TCP/IP Gateway
- Modbus RTU/ASCII frames support
- VLAN Management
- IPS Firewall to protect against DoS attacks
- 5G Dynamic Slicing
- Network Service Assurance
|
DEVICE CATEGORY
-
4G LTE
- Uplink: Cat 18, 2CA Single TX, 256QAM
- Downlink: Cat 19, 5CA MIMO 4×4. 256QAM
-
5G NR
- Uplink: MIMO 2×2 Single Carrier up to 100MHz, 256QAM
- Downlink: MIMO 4×4 Dual Carrier up to 120MHz, 256QAM
|
-
VPN
- IPSec tunnel termination (for up to 5 tunnels)
- GRE Tunnelling
- OpenVPN (Client, Server and P2P)
-
ADMINISTRATION & CONFIGURATION
- Secure web-based user interface (HTTPS) for full device status and configuration
- Password protected configuration file backup and restore for quick device configuration and device cloning
- SSH Command Line Interface for status monitoring,
configuration and control
- SNMP v3 including cellular specific MIB, config and firmware download
- TR-069 and LWM2M for remote device configuration, configuration backup and restore, and firmware upgrade
- Ping monitor watchdog (Reset connection on repeated
ping failure)
- Diagnostic Log (remote and local)
- System Status and Security Logs
- NTP Server Support for network time sync of device’s system clock
- Site and location settings
- MQTT client for device data reporting to Microsoft Azure
& AWS cloud services
- Cumulocity support
- Field test information for LTE and 5G
- Advanced Diagnostics and Control via SMS
- SMS over SGS supported
- SMS Client (Send/Receive) including inbox, outbox
- Query status information via SMS – such as Signal Strength, WAN IP, Uptime
- Configure device remotely via SMS – such as APN, authentication settings
- Execute commands via SMS – such as reboot, reset to defaults
- Secure SMS management using sender whitelisting
and password management
- SMS acknowledgement replies for queries and commands
|
PEAK DATA SPEEDS
-
5G NR SA Sub-6
- 2.4 Gbps (DL) / 900 Mbps (UL)
-
5G NR NSA Sub-6
- 2.5 Gbps (DL) / 550 Mbps (UL)
-
4G LTE
- 1.6 Gbps (DL) / 200 Mbps (UL)
|
-
FIRMWARE MANAGEMENT
- Firmware Upgrade locally via LAN or remotely Over-The-Air (HTTPS, SNMP, TR-069, LWM2M)
- Triggered firmware upgrade via SMS (initiate download & install from HTTPS)
-
TEMPERATURES
- Operating Temperature Range: -30°C to +70°C
- Storage Temperature Range: -30°C to +85°C
- Operating Humidity Range: 0-95%
|

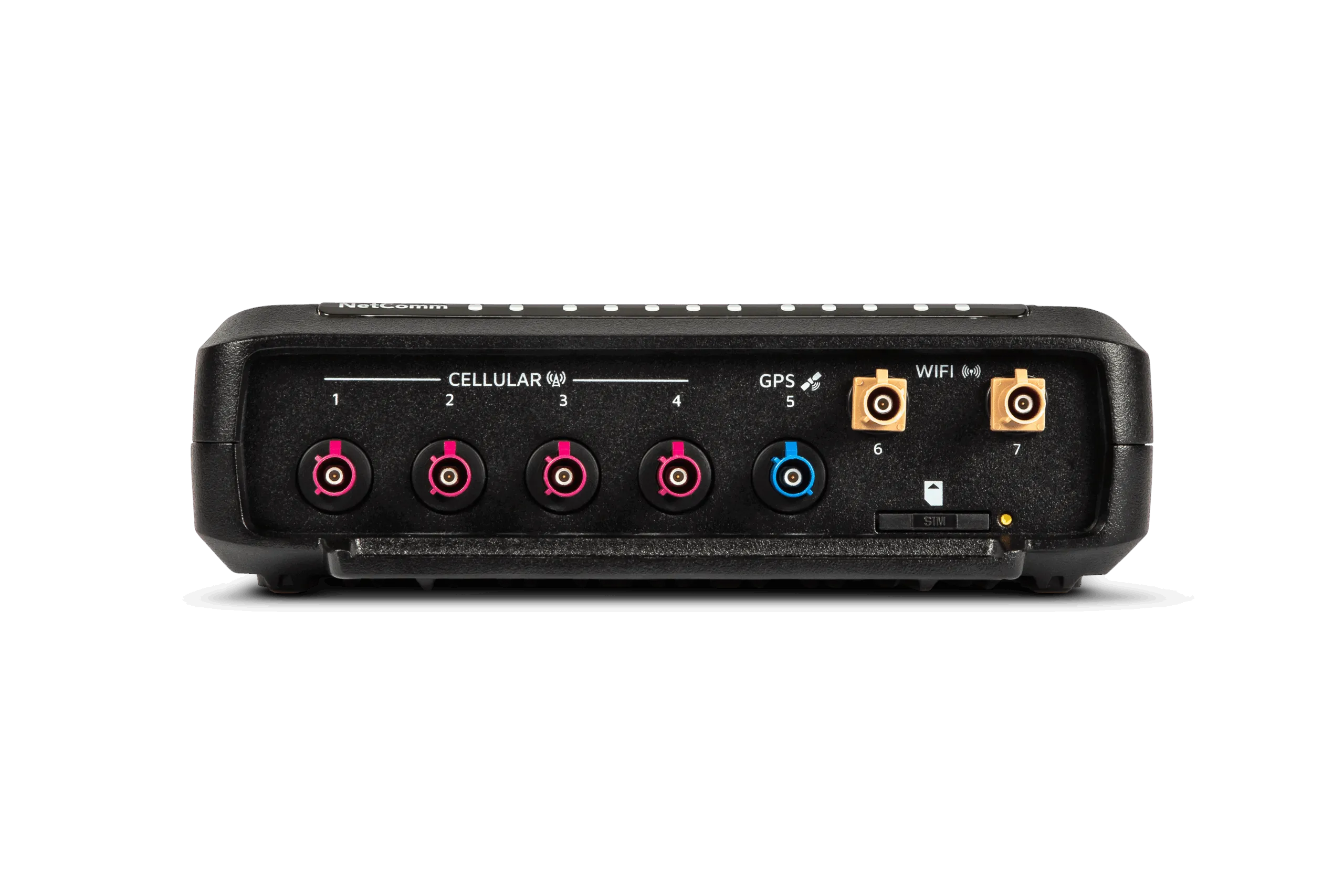

ANTENNA CONNECTORS
-
FAKRA connectors
- 4x Cellular (Claret Violet) connectors for external cellular antennas
- 1x GPS (Signal Blue) connector for active external antenna
- 2x Wi-Fi (Beige) connectors for external Wi-Fi antennas
-

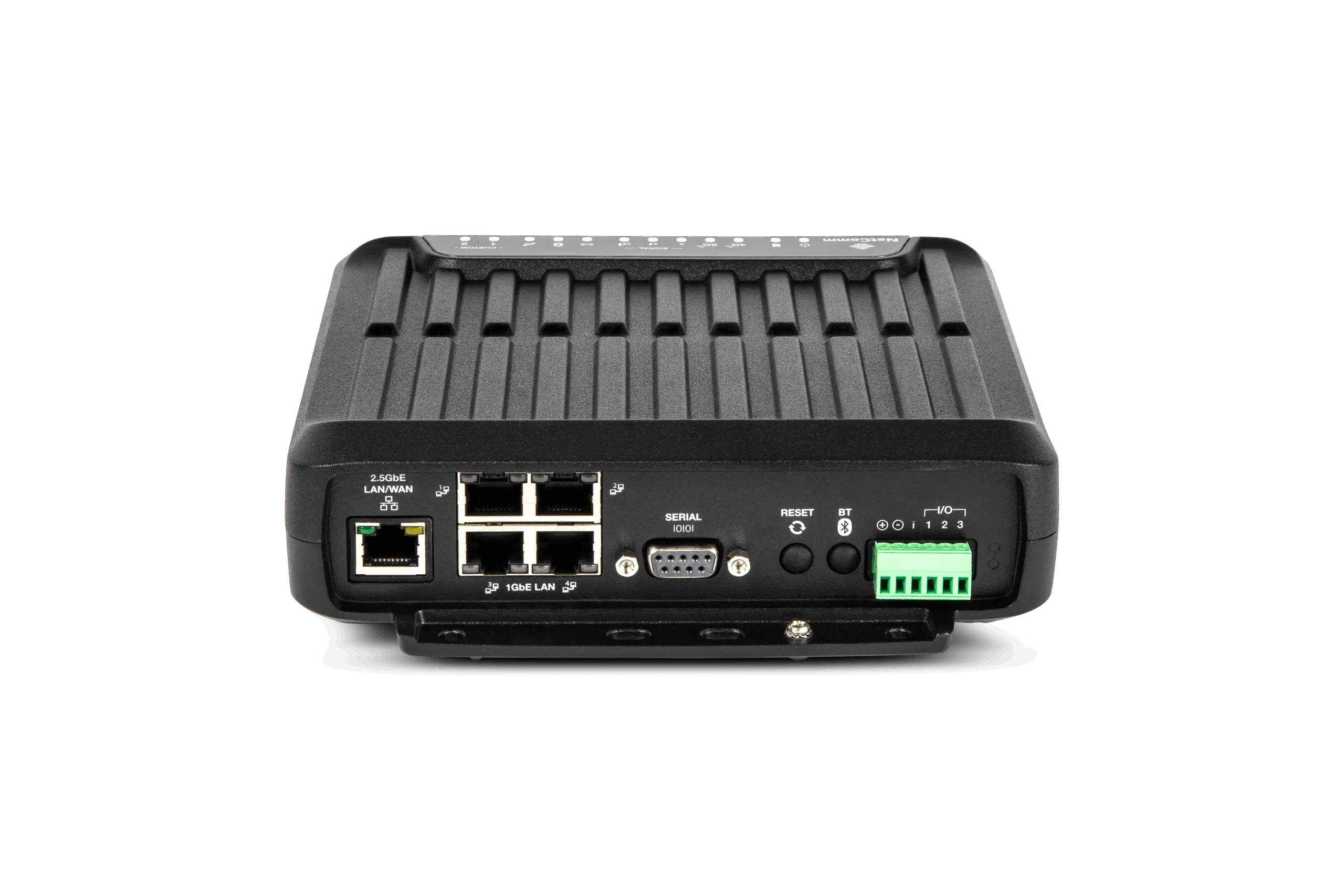

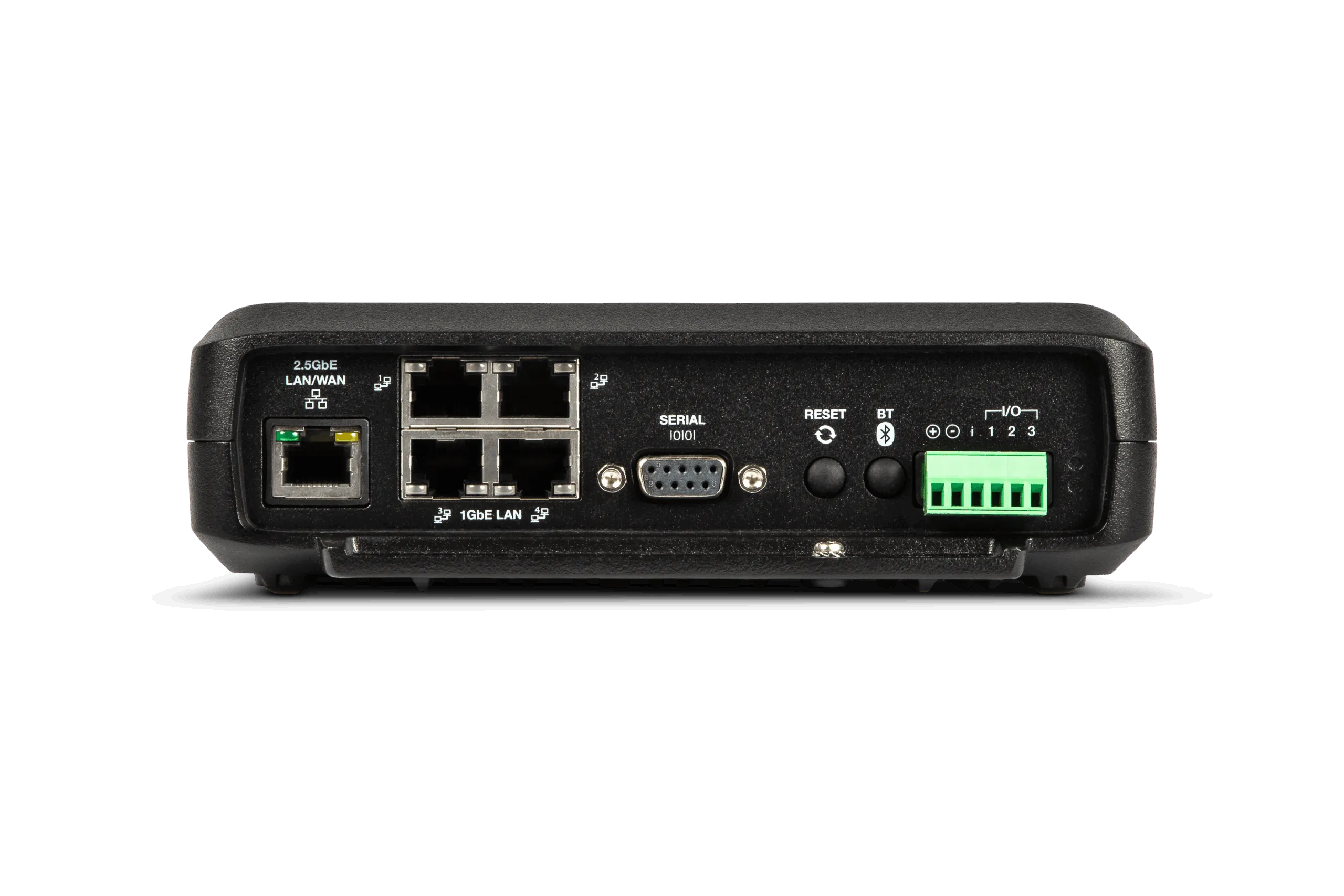

INTERFACES
- 1 x 2.5 Gbps LAN/WAN port
- 4 x 1 Gbps LAN ports
- 1 x USB-C port
- 1 x Ignition sensing port
- 3 x Configurable GPIOs
- 1 x Configurable serial port (RS232/RS422/RS485)
- 1 x microSD card slot
|
-
DIMENSIONS, WEIGHT & MOUNTING
- Device dimensions (excluding external antennas):
193.3mm (D) x 175mm (W) x 51.7mm (H) / 1.050 kg
- Wall mount support in multiple orientations via embedded mounting holes
- DIN Rail mount support via DIN Rail clips included in the box
-
ENCLOSURE
|
-
LED INDICATORS
- 1 x Power
- 1 x SIM
- 1 x 4G
- 1 x 5G
- 3 x Signal strength
- 1 x Wi-Fi
- 1 x Bluetooth
- 1 x GPS
- 2 x Custom indicators
-
SIM CARD READER
- 1 x Mini USIM/SIM Format (2FF) SIM card slot
- Optional soldered-down SIM (ETSI MFF2 DFN-8 USIM)
|
|
