xPico 600 Wi-Fi 6 Embedded IoT Gateway

Coming Soon!

xPico 600 Wi-Fi 6 Embedded IoT Gateway Tech Specs

• Network

  • Wireless LAN Specifications
    • 1x1, 20 MHz channel, 2.4 GHz / 5 GHz Wi-Fi (IEEE 802.11 a/b/g/n/ac/ax)
    • Dual Band 2.4 GHz and 5 GHz
    • Supports IEEE 802.11 d/h/i
    • 802.11ax up to 1.2 Gbps
  • Ethernet Specifications
    • Integrated 10/100BASE-T Ethernet PHY
    • External magnetics needed
    • Support for auto-negotiation, link detection, and WOL network wake-up
    • Dual LED pins

• Bluetooth Specifications

  • Two separate antennas allowing simultaneous independent operation of the Wi-Fi and BLE radios
  • Compliant to Bluetooth Core Specification version 5.4 (BLE)
  • BLE Central and Peripheral Roles
  • Support for Generic Access Profile (GAP), Generic Attribute Profile (GATT)

• Data Communication

  • TruPort® Serial Technology— TCP and UDP Server Mode, TCP and UDP Client Mode, Multi-host Connect; TLS Client and Server
  • TruPort® Socket— Multi-host Client and Server Modes, HTTP(S), Sockets, TLS
  • Modbus TCP to Modbus RTU/ASC11 gateway

• Security and Authentication

  • InfiniShield™ Security Software
    • Secure Boot, Secure Firmware-Over-the-Air (FOTA) Updates
    • Secure Key Storage, Encrypted Configuration
    • Secure Connections with SSL/TLS, HTTPS
    • Software Controlled Network Service Ports Enable/Disable
    • Role Based Access Control
  • AES/CCMP and TKIP encryption, WPA/WPA2 Personal
  • WPA3 Enterprise (EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-FAST)
  • SSLv3/TLS 1.3 with PKI and X.509 Certificates (up to 4096-bit Keys)
  • AES Algorithm, 256-bit, 192-bit, 128-bit

• Management Interfaces

  • Percepxion™ Software Management Platform
  • Lantronix Discovery Protocol (77FE)
  • Serial Port, Internal Web Server (HTTP/HTTPS)
  • XML Configuration and XML Status (CLI, API)
  • Secure Firmware Upgrade via HTTP

• Protocol Support

  • DHCP Client, Server (Soft AP), HTTP Server/Client
  • IPv4, TCP/IP, UDP/IP, ARP, ICMP, Auto-IP, DNS
  • SNMP v1/v2
  • IPv6

• Wireless Features

  • Concurrent Soft AP + STA (Client), Client, Soft AP
  • Support simultaneous client connections in Soft AP mode
  • Connect to multiple WLAN networks, WLAN QuickConnect
  • Ethernet to Wi-Fi Client Bridge (Single Host Mode), Auto-MAC ID
  • 802.11r fast roaming

• Operating Conditions

  • Operating Temp: -40°C to +85°C; Storage Temp: -40°C to + 85°C
  • Vibration (Operational): 40G; Non-operational Shock: 65G
  • Storage Humidity: 10% to 85% relative humidity, non-condensing

• Host Interfaces

  • Serial: UART Port TTL
    • Data Rates: 9600 bps to 4 Mbps (software selectable)
    • Control signals: DTR/DCD; Flow Control: RTS/CTS; XON/XOFF
  • USB (Host)
  • 12 Programmable I/O Pins
  • System Pins: RESET, DEFAULT, WAKE

• Dimensions & Packaging

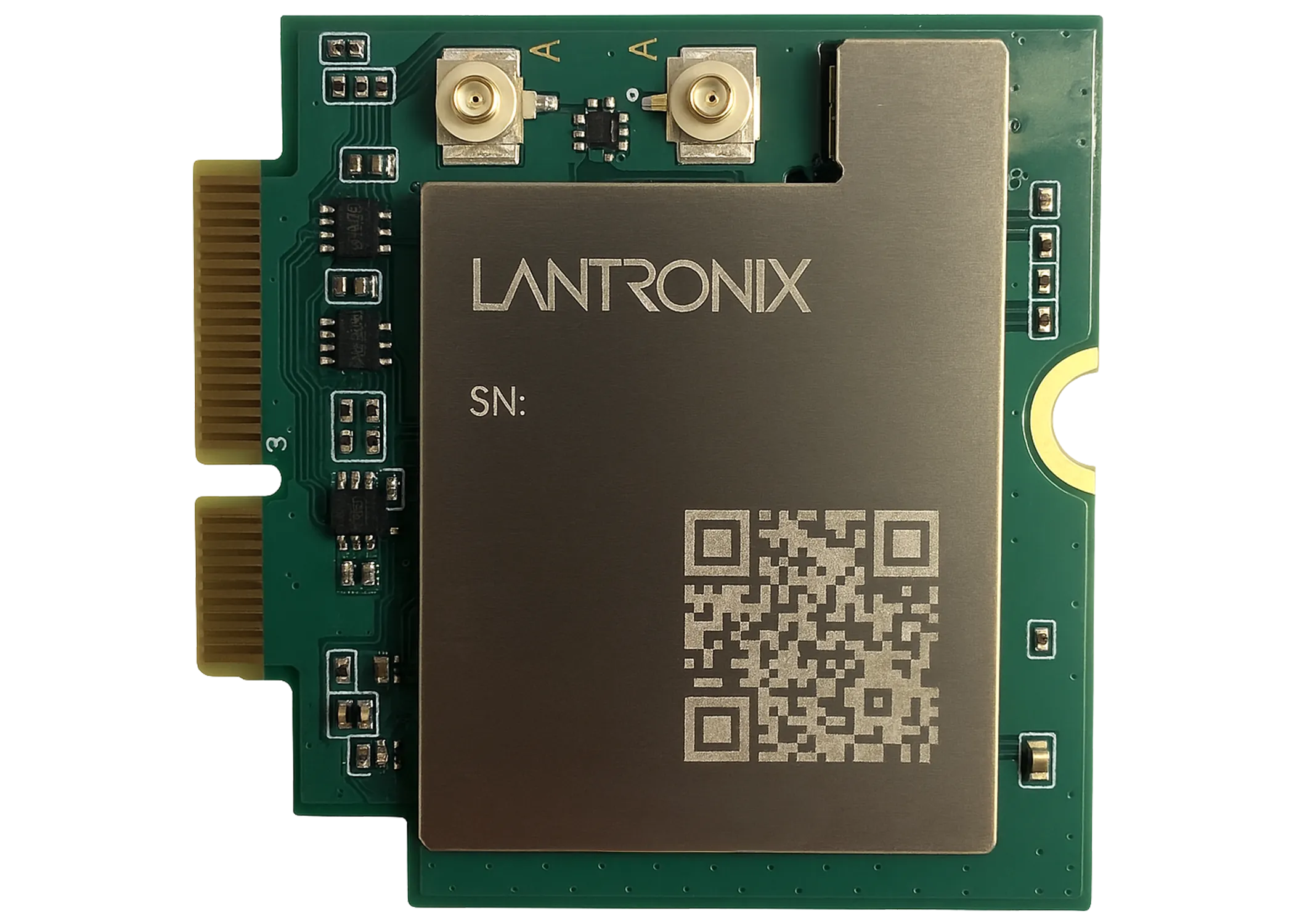

  • For M.2 form factor:
    • 3030 E-Key
    • Shipping on tray

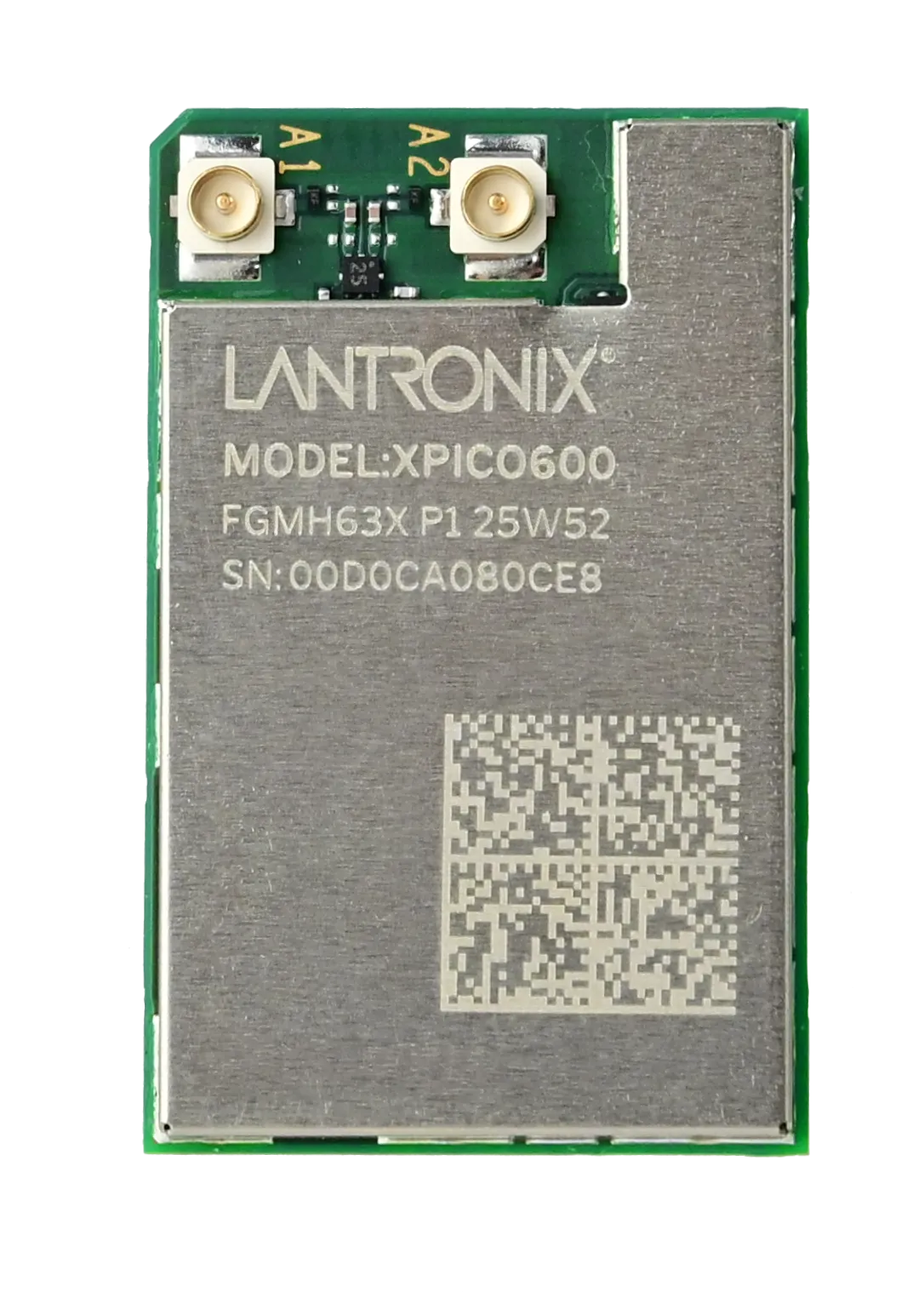

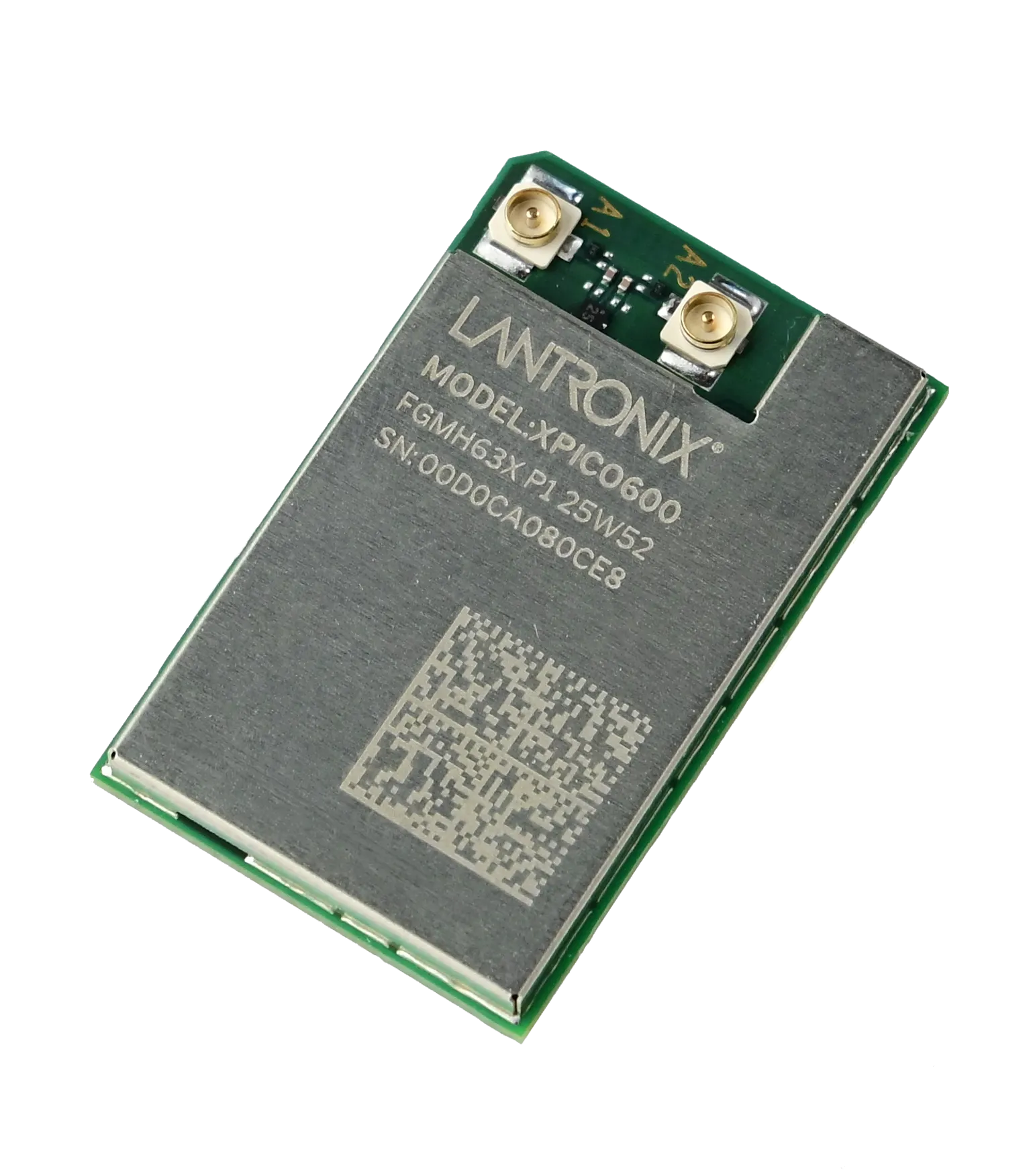

  • For LGA:
    • 18 x 28.5 x 3.15 mm
    • Tape and Reel MSL3

• Certifications & Compliance (Planned for Product Release)

  • USA, Canada, EU, Japan, Taiwan, China, India
  • Safety: EN/IEC 62368-1, EN 62311, UL/EN/IEC 60950-1
  • RoHS, REACH
  • IPv6 certification
  • Bluetooth 5.0

Warranty

• 5 Years
